Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location: Notes

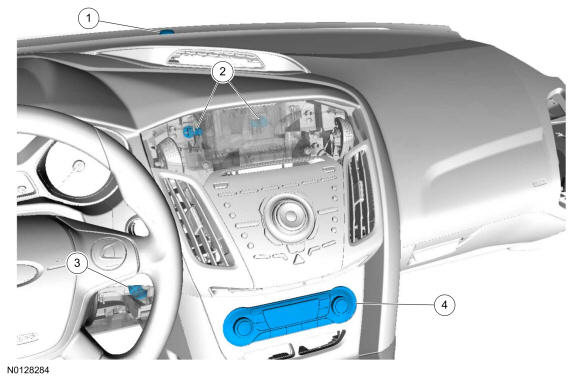

| Item | Description |
|---|---|
| 1 | Sunload sensor |
| 2 | Center register air discharge temperature sensors |
| 3 | In-vehicle temperature and humidity sensor |
| 4 | HVAC control module |
| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

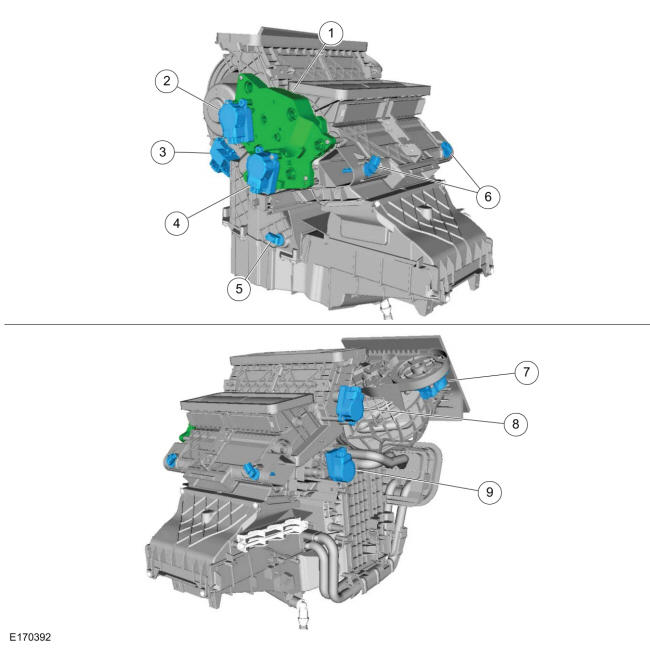

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Footwell vent door actuator |
| 3 | Blower motor control module |
| 4 | Driver side temperature door actuator |
| 5 | Evaporator temperature sensor |
| 6 | Footwell air discharge temperature sensors |
| 7 | Air inlet door actuator |
| 8 | Passenger side temperature door actuator |
| 9 | Defrost vent/register door actuator |
