Seat Control Switch, Driver Side (6-Way)

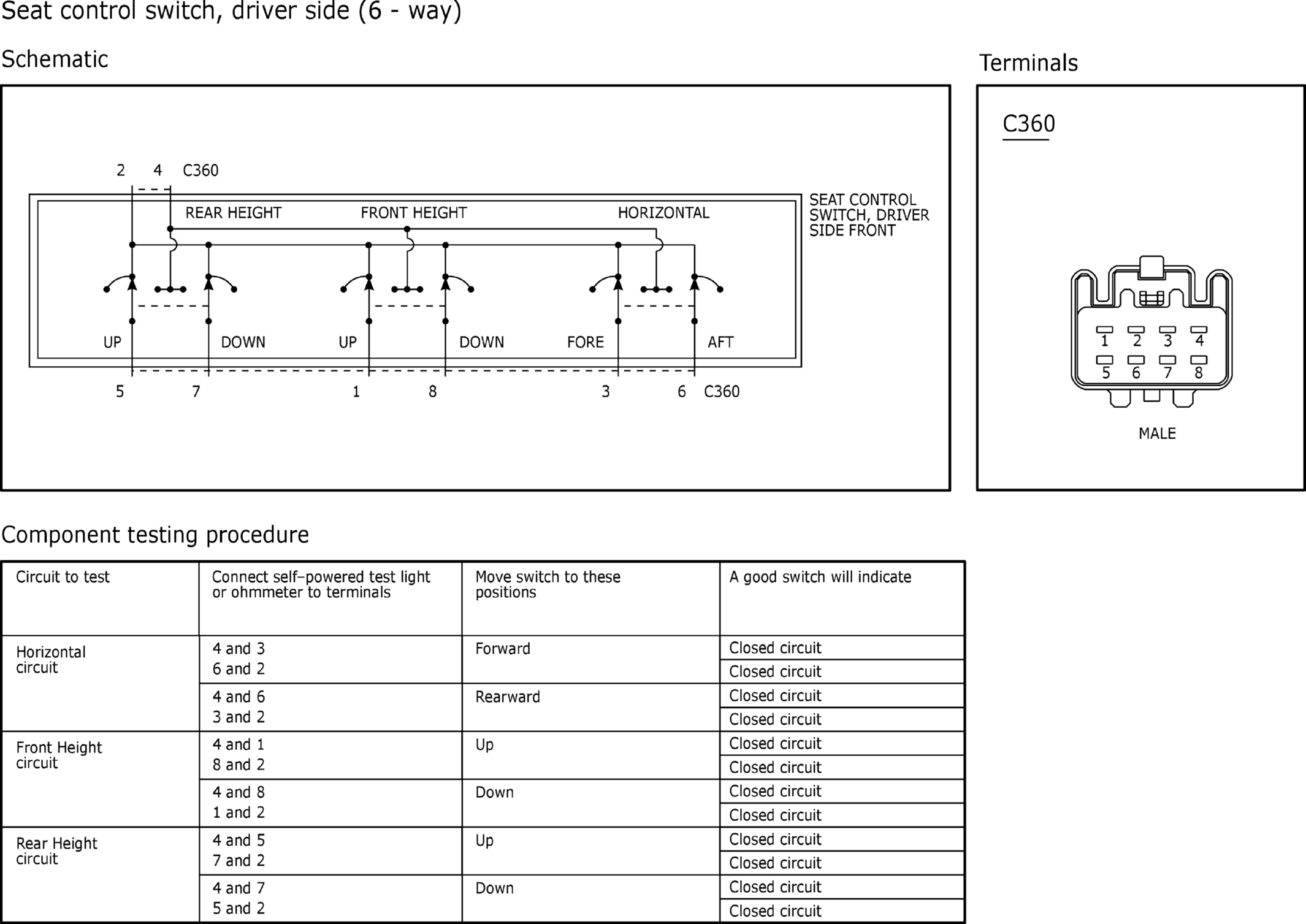

Fig 1: Seat Control Switch, Driver Side (6-Way)

GFDW33066

Courtesy of FORD MOTOR COMPANY
