OEM Ground Distribution: Grounds

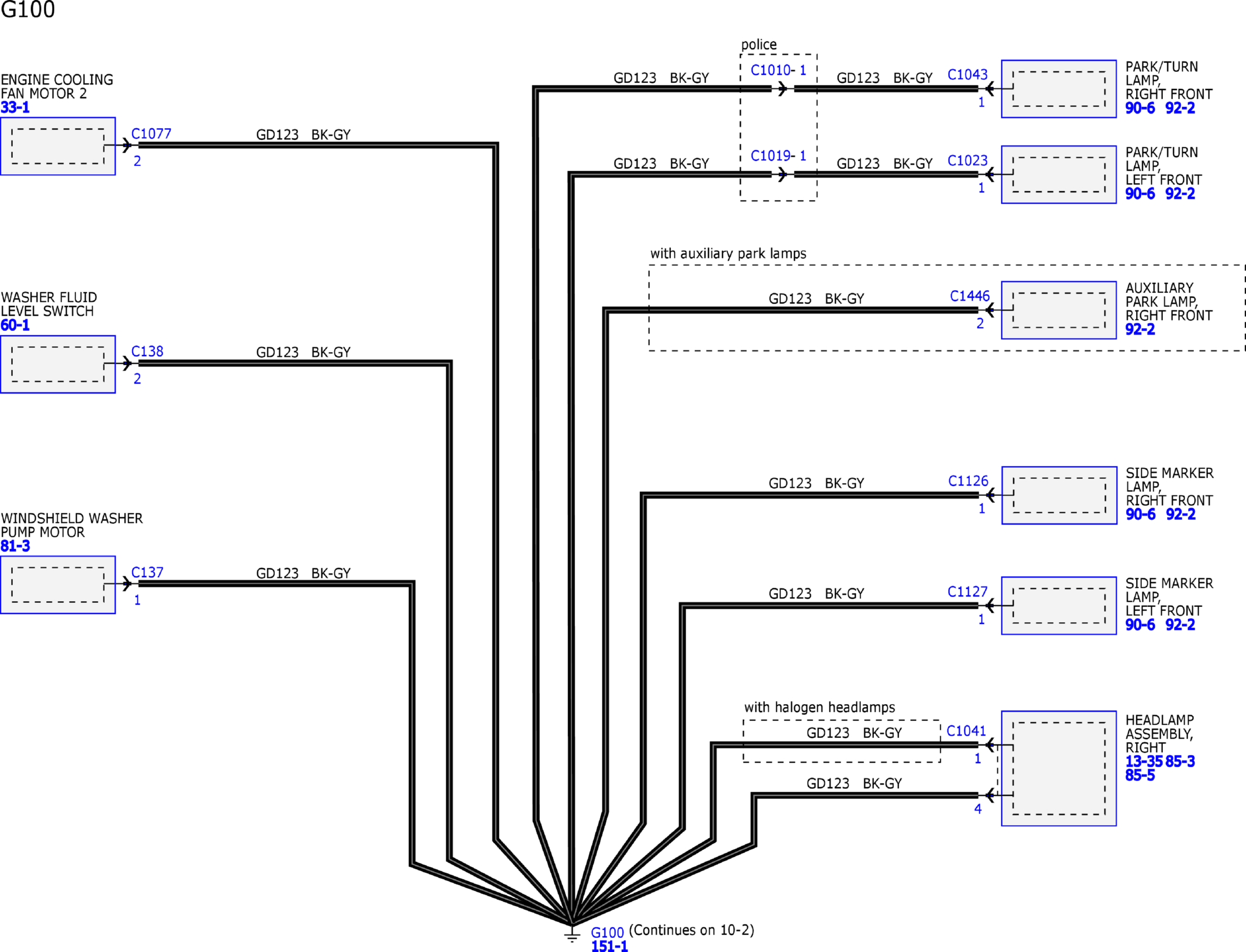

GFDW32722Courtesy of FORD MOTOR COMPANY

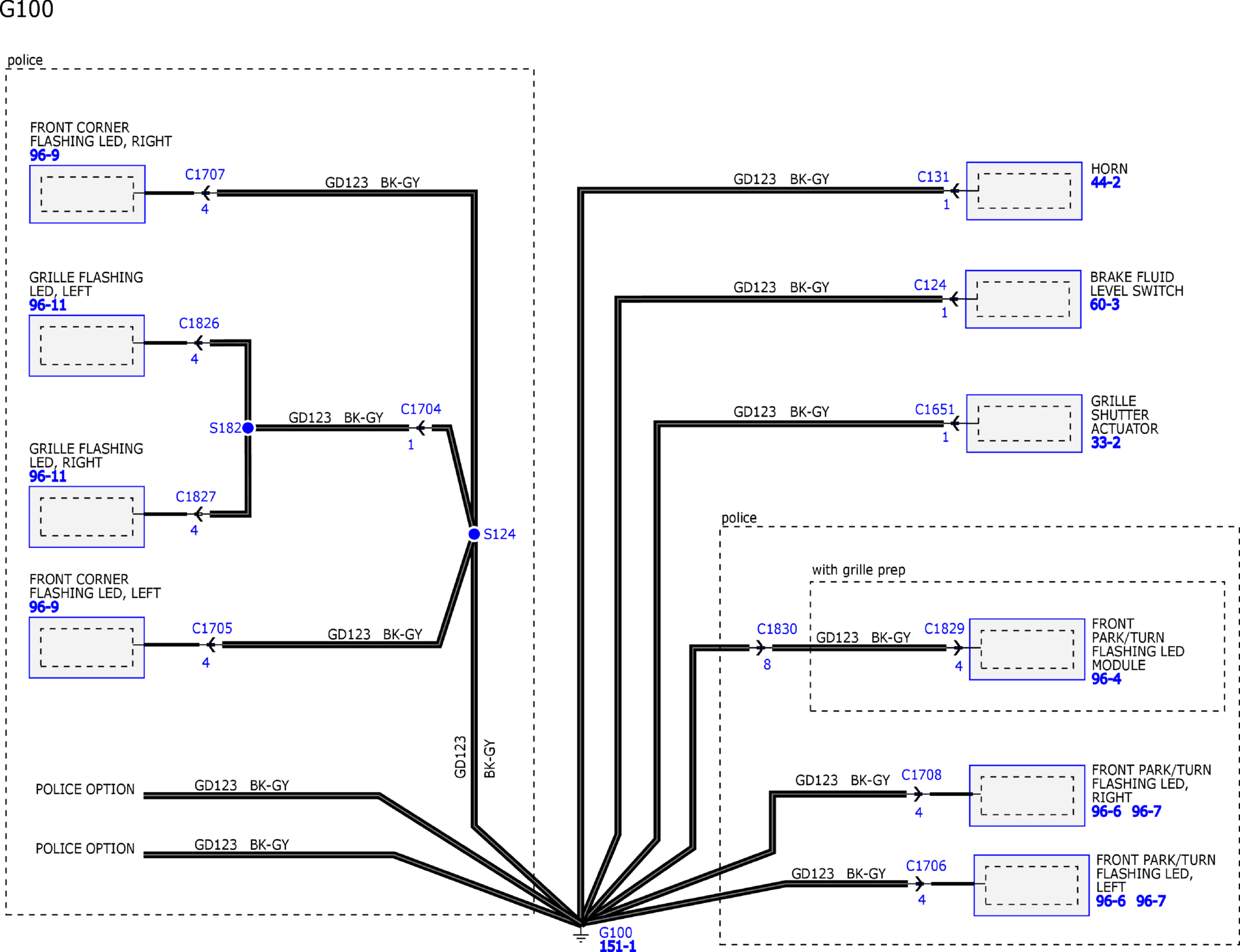

GFDW32723Courtesy of FORD MOTOR COMPANY

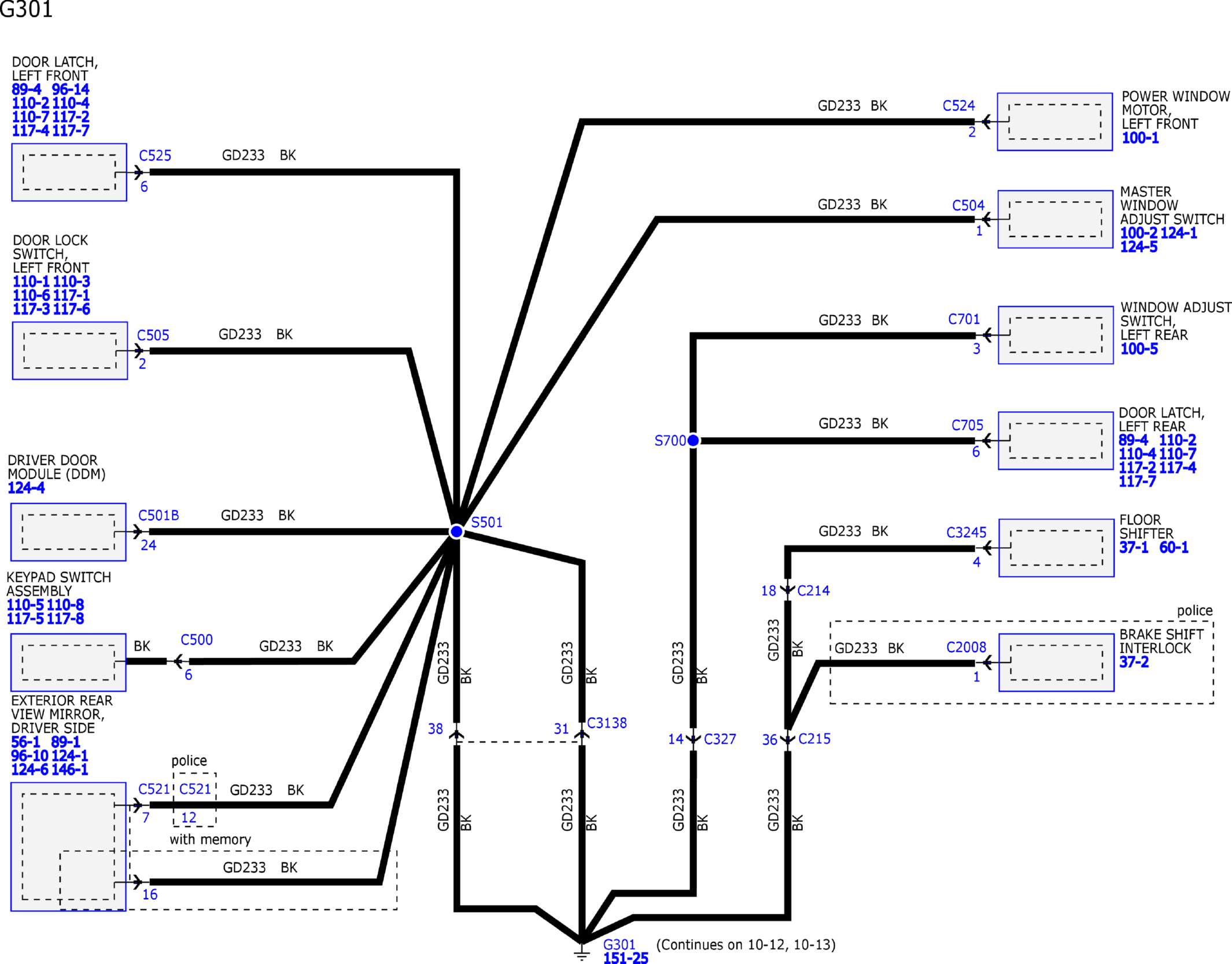

GFDW32724Courtesy of FORD MOTOR COMPANY

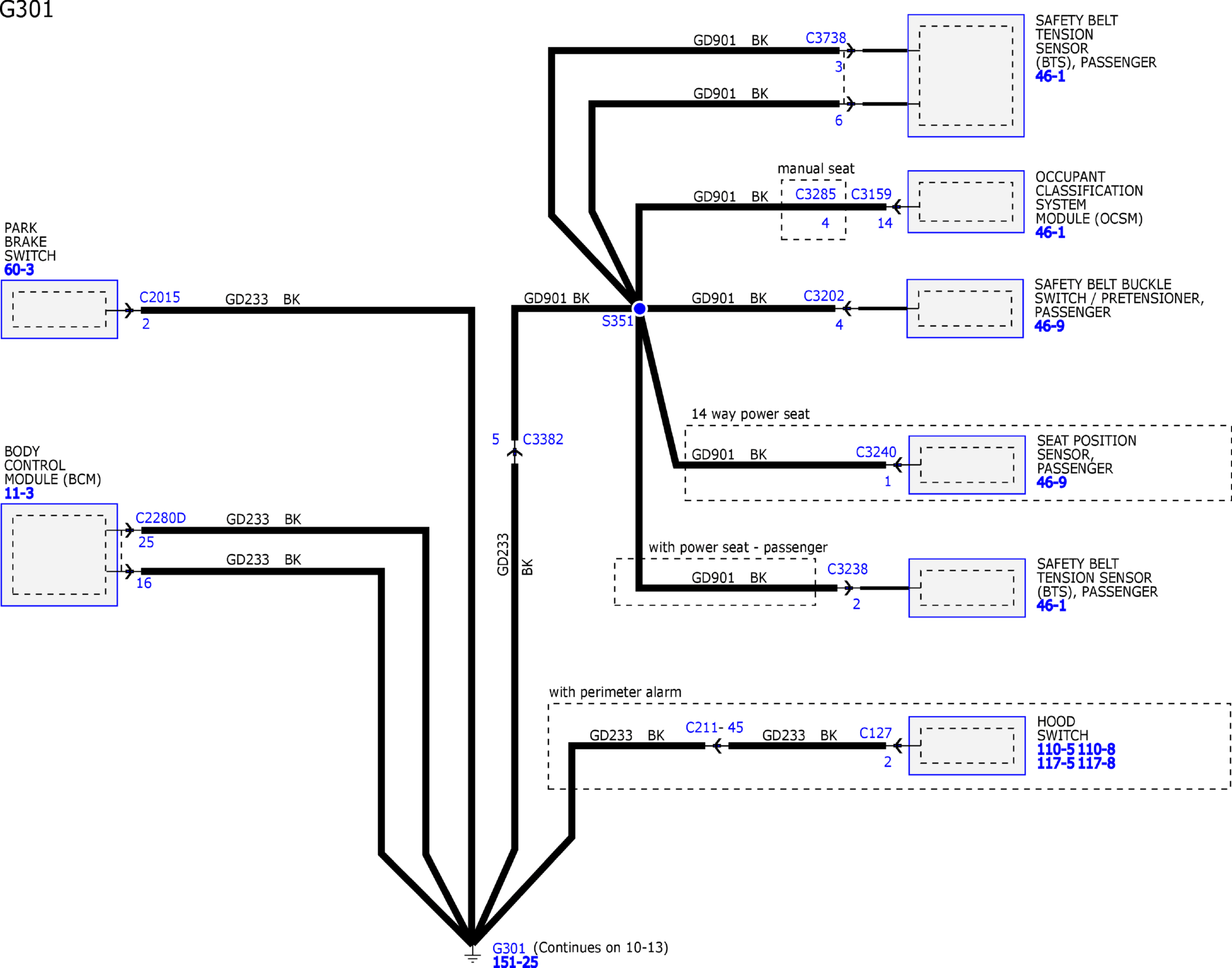

GFDW32725Courtesy of FORD MOTOR COMPANY

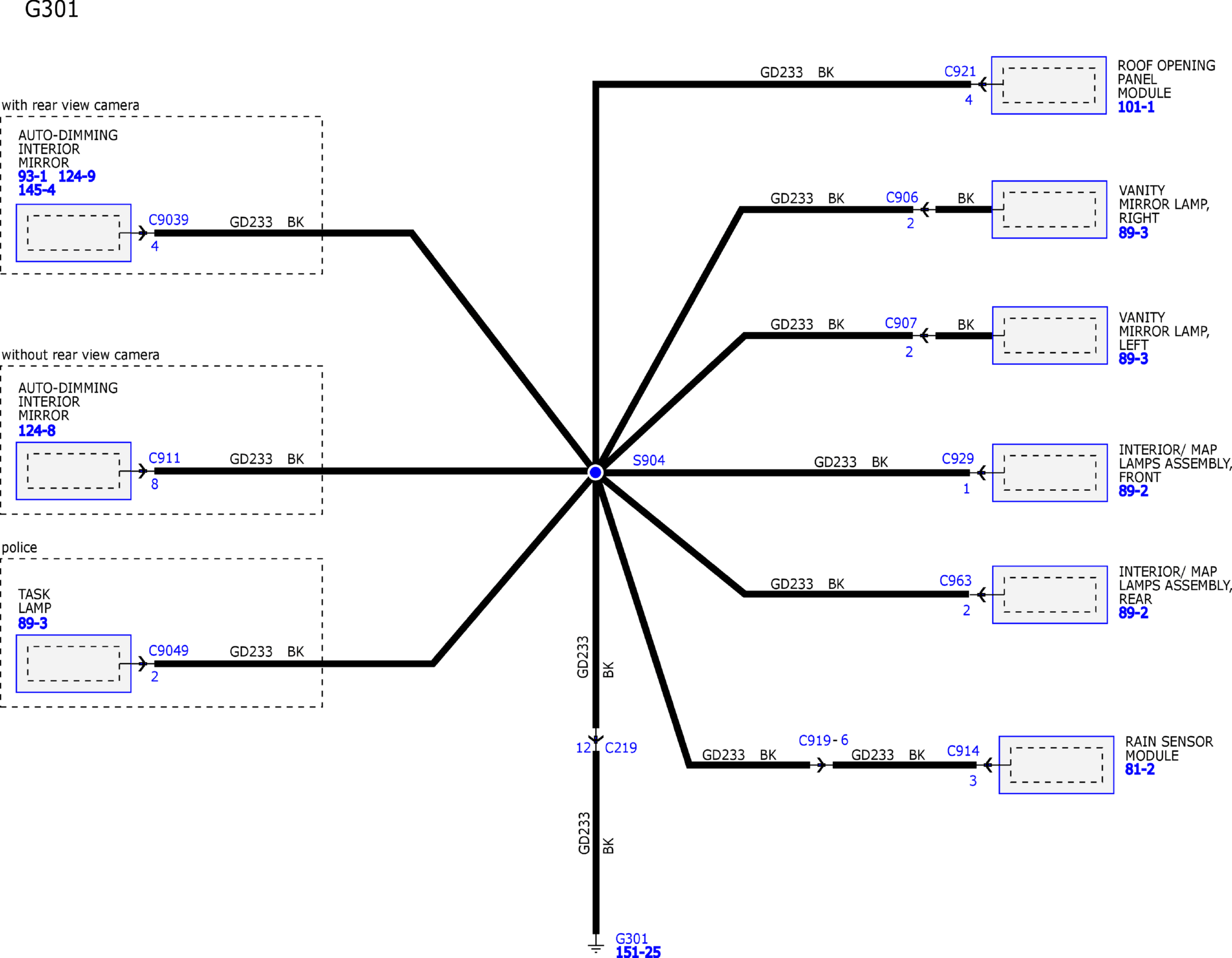

GFDW32726Courtesy of FORD MOTOR COMPANY

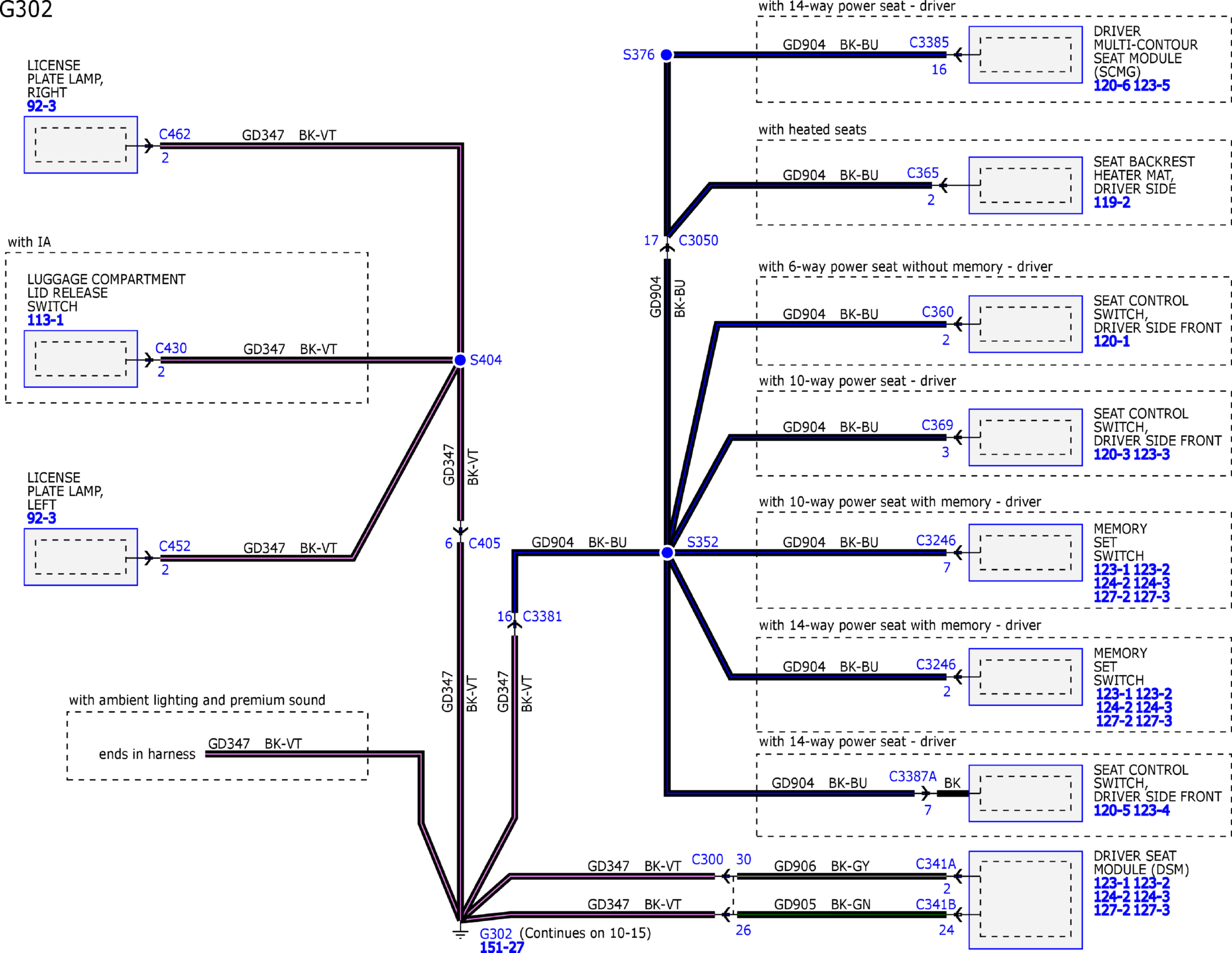

GFDW32727Courtesy of FORD MOTOR COMPANY

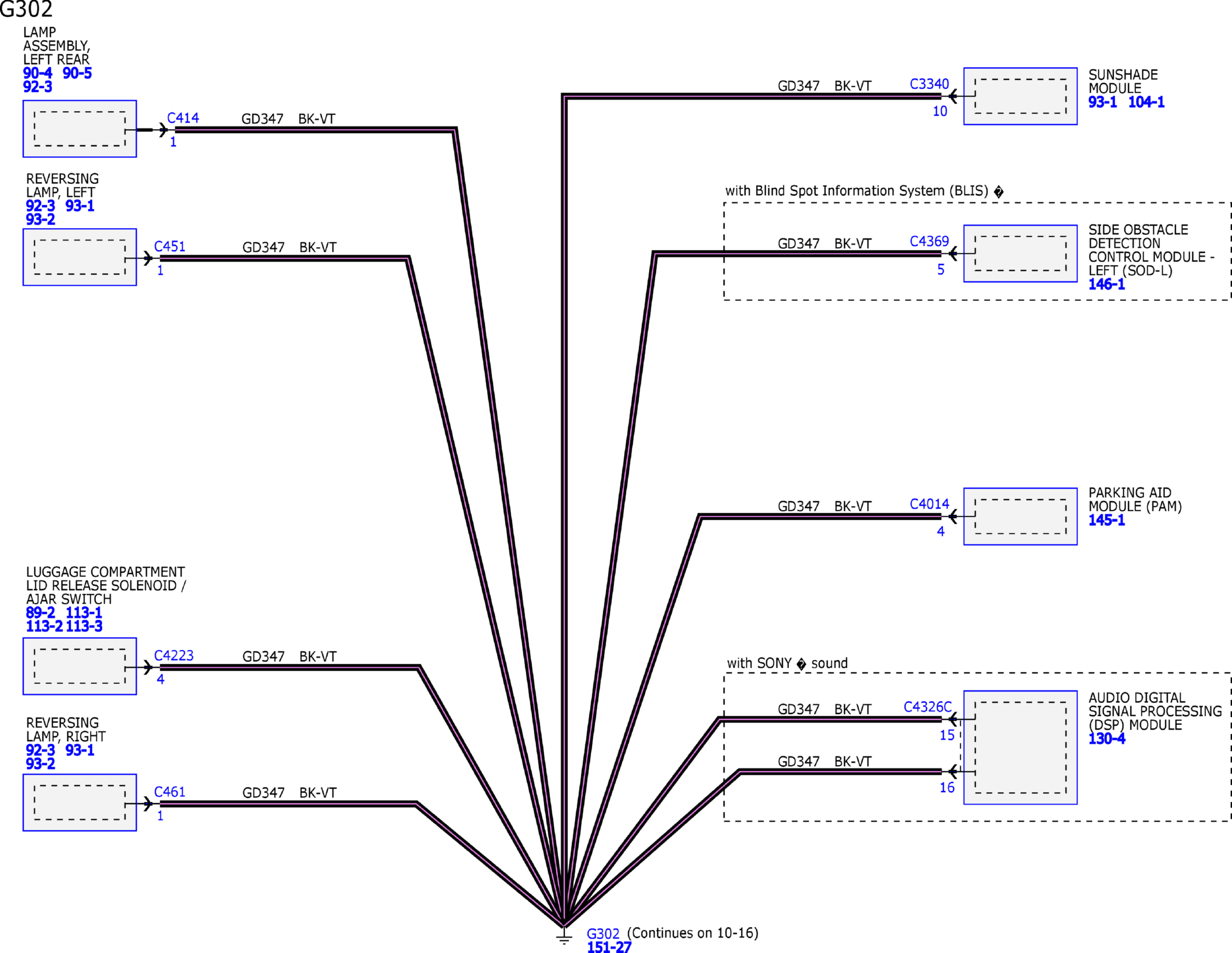

GFDW32728Courtesy of FORD MOTOR COMPANY

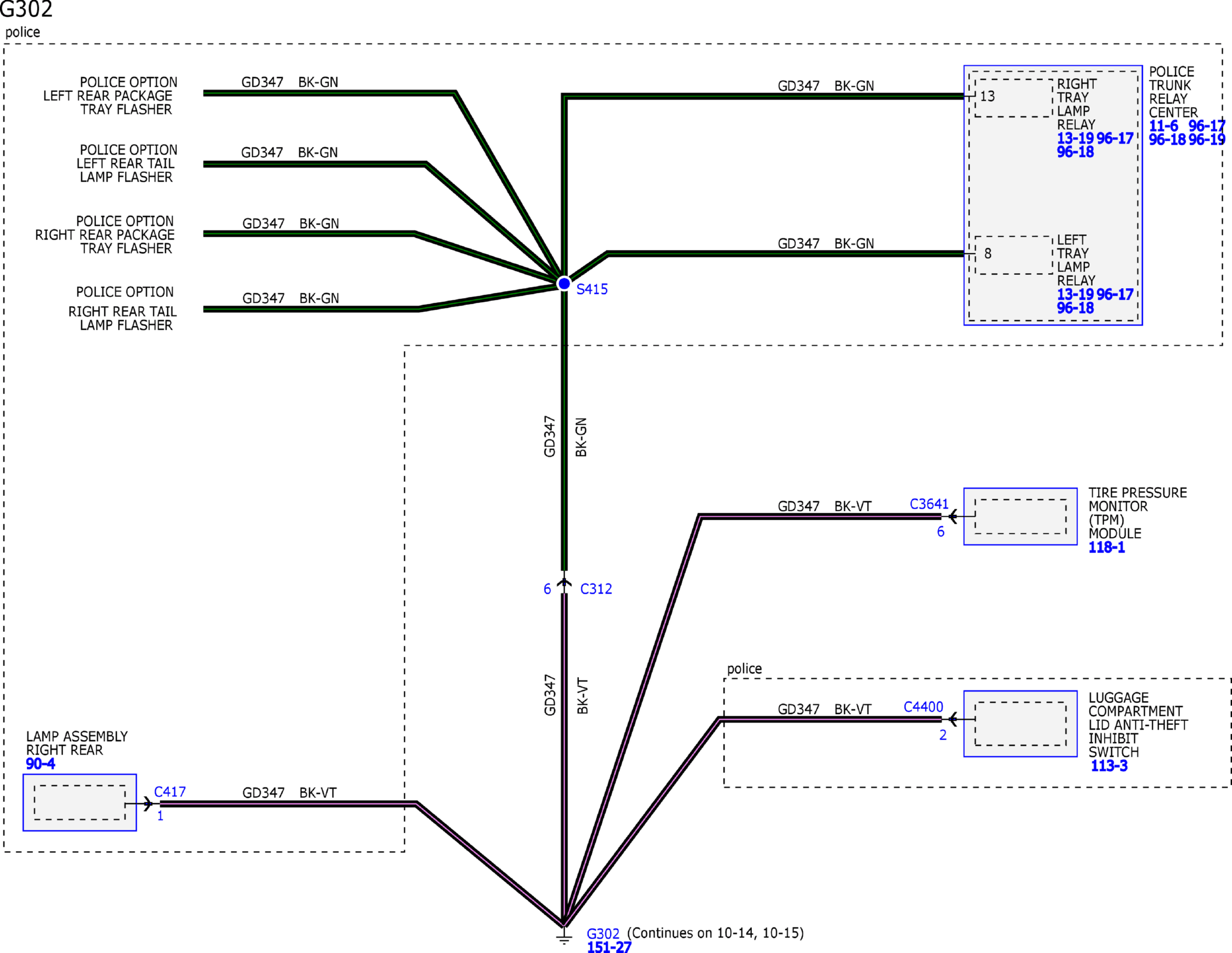

GFDW32729Courtesy of FORD MOTOR COMPANY

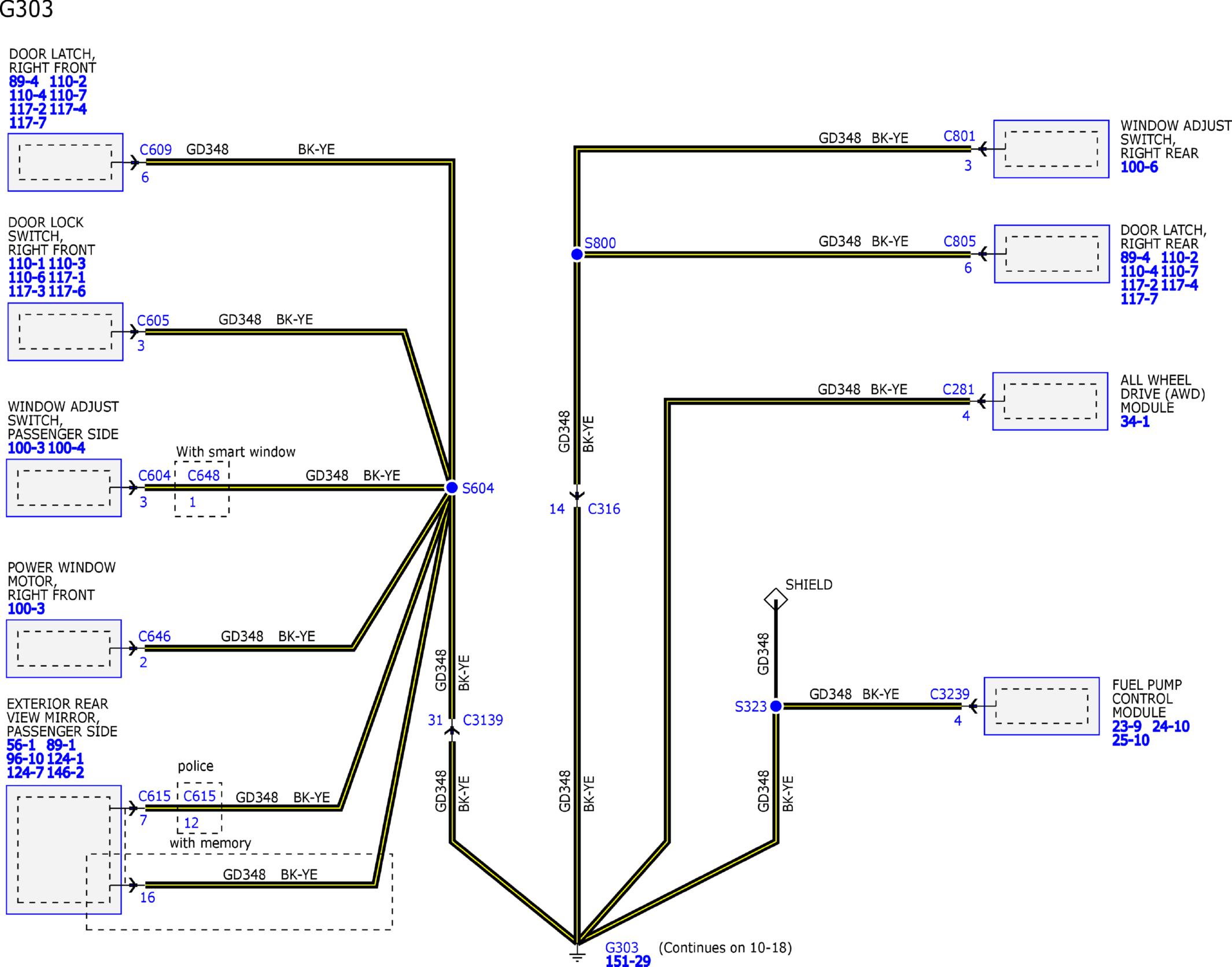

GFDW32730Courtesy of FORD MOTOR COMPANY

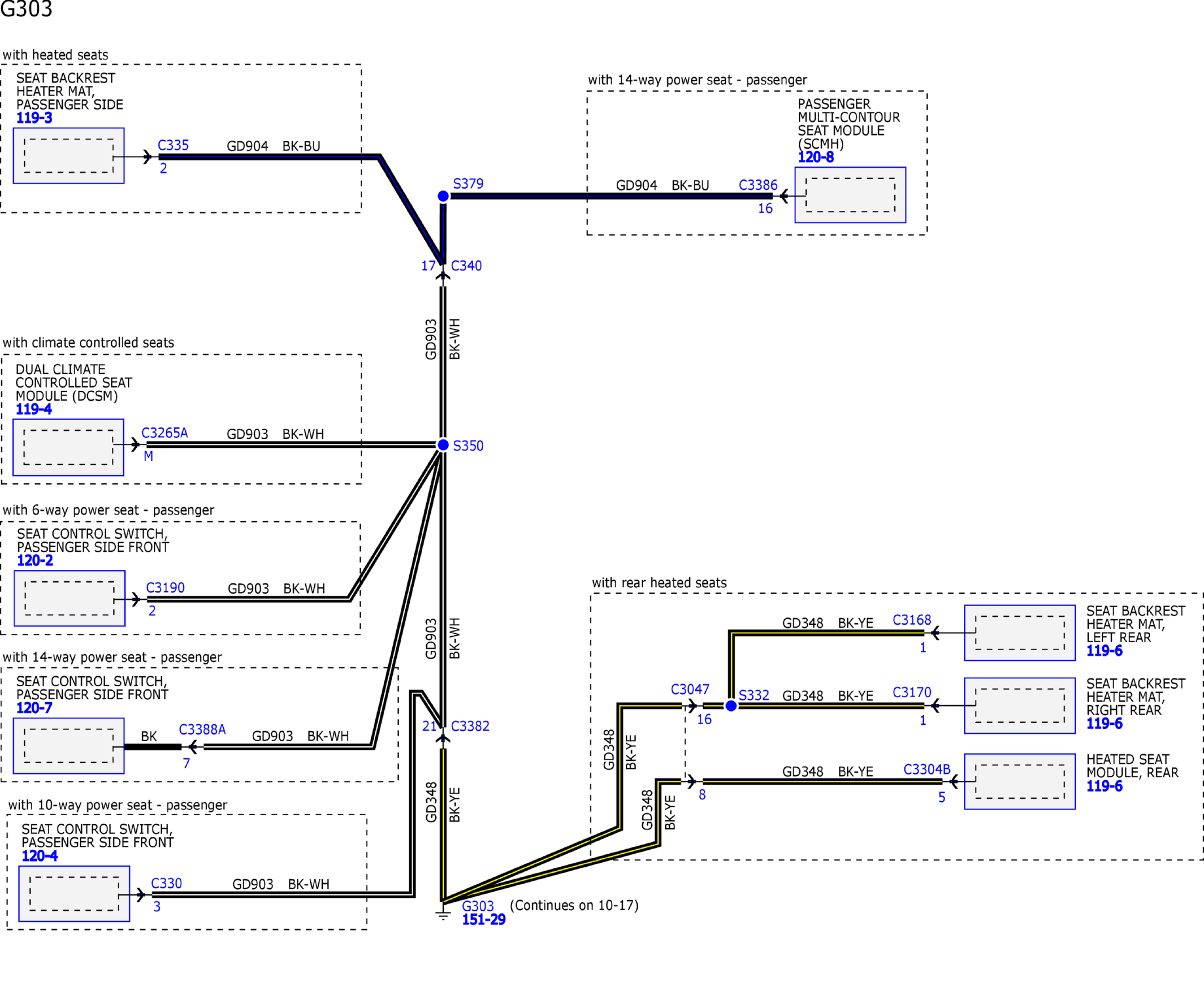

GFDW32731Courtesy of FORD MOTOR COMPANY

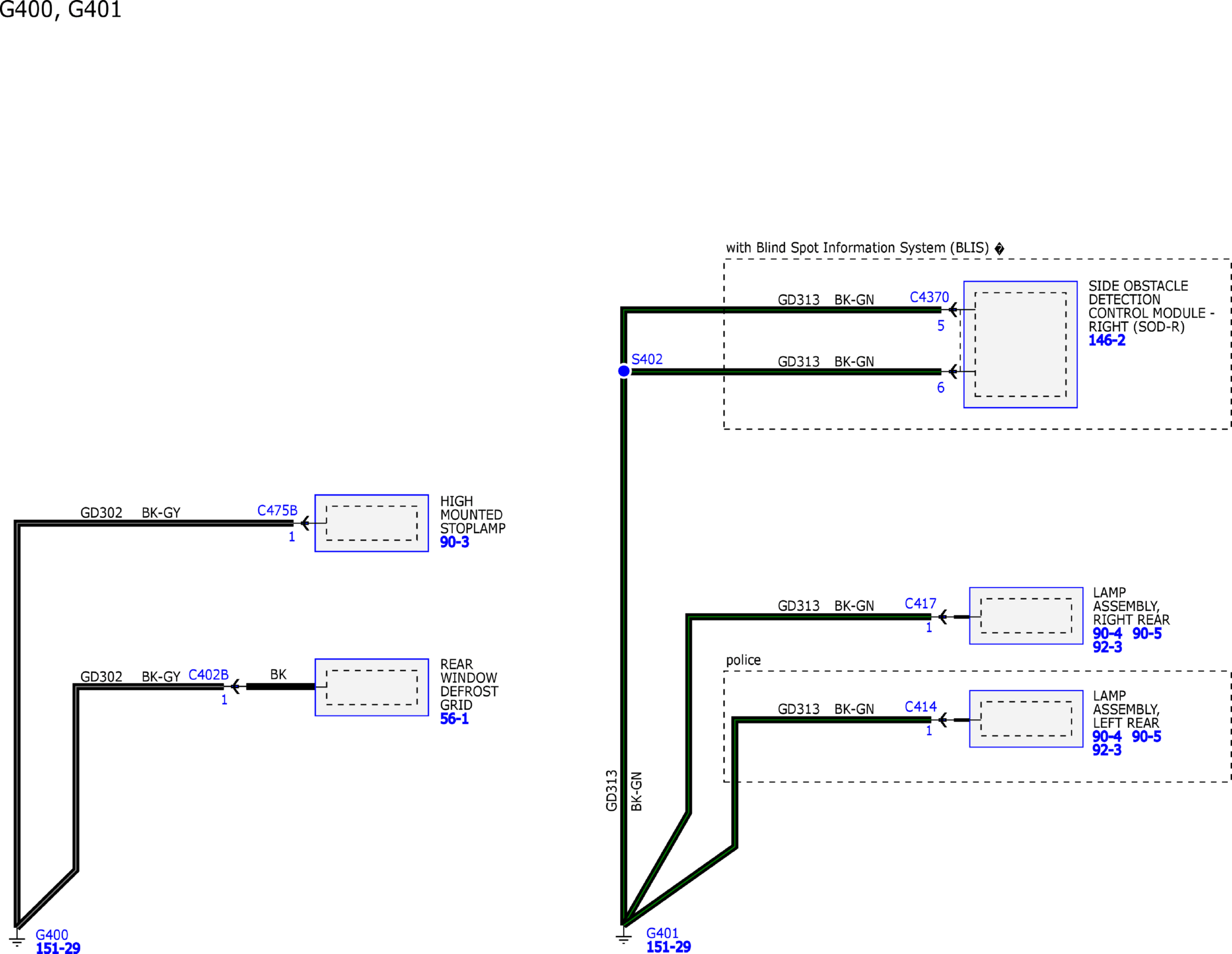

GFDW32732Courtesy of FORD MOTOR COMPANY

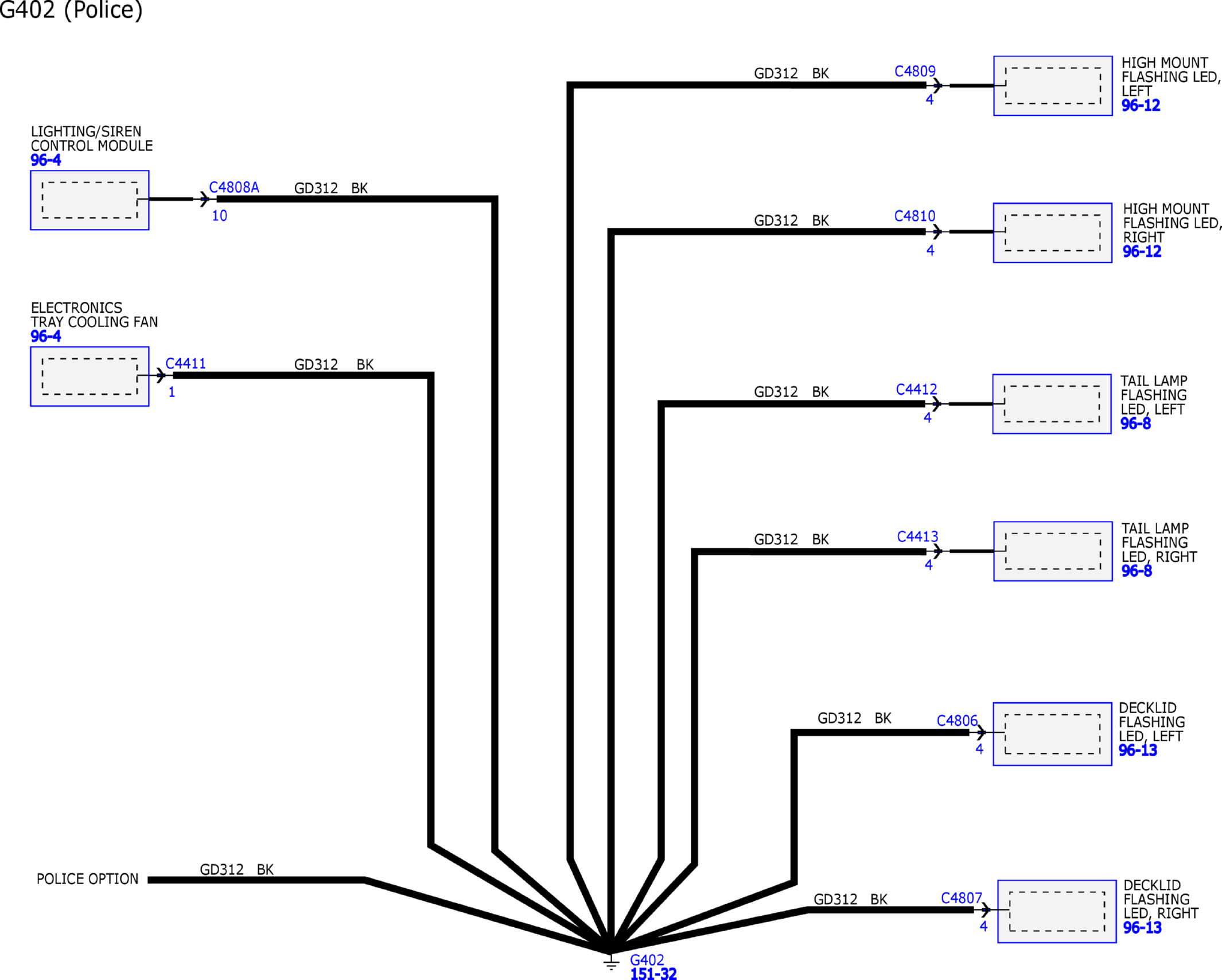

GFDW32733Courtesy of FORD MOTOR COMPANY

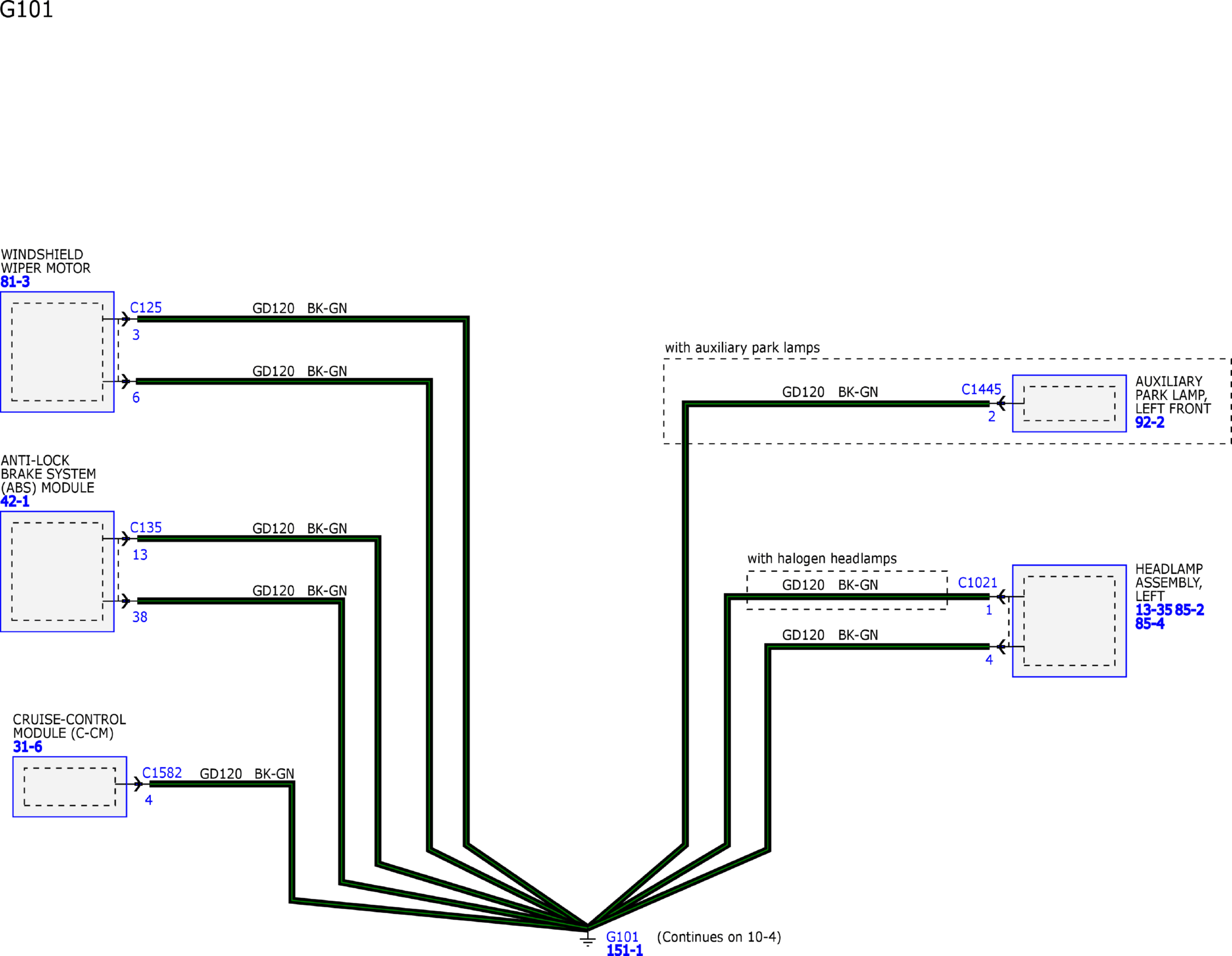

GFDW32734Courtesy of FORD MOTOR COMPANY

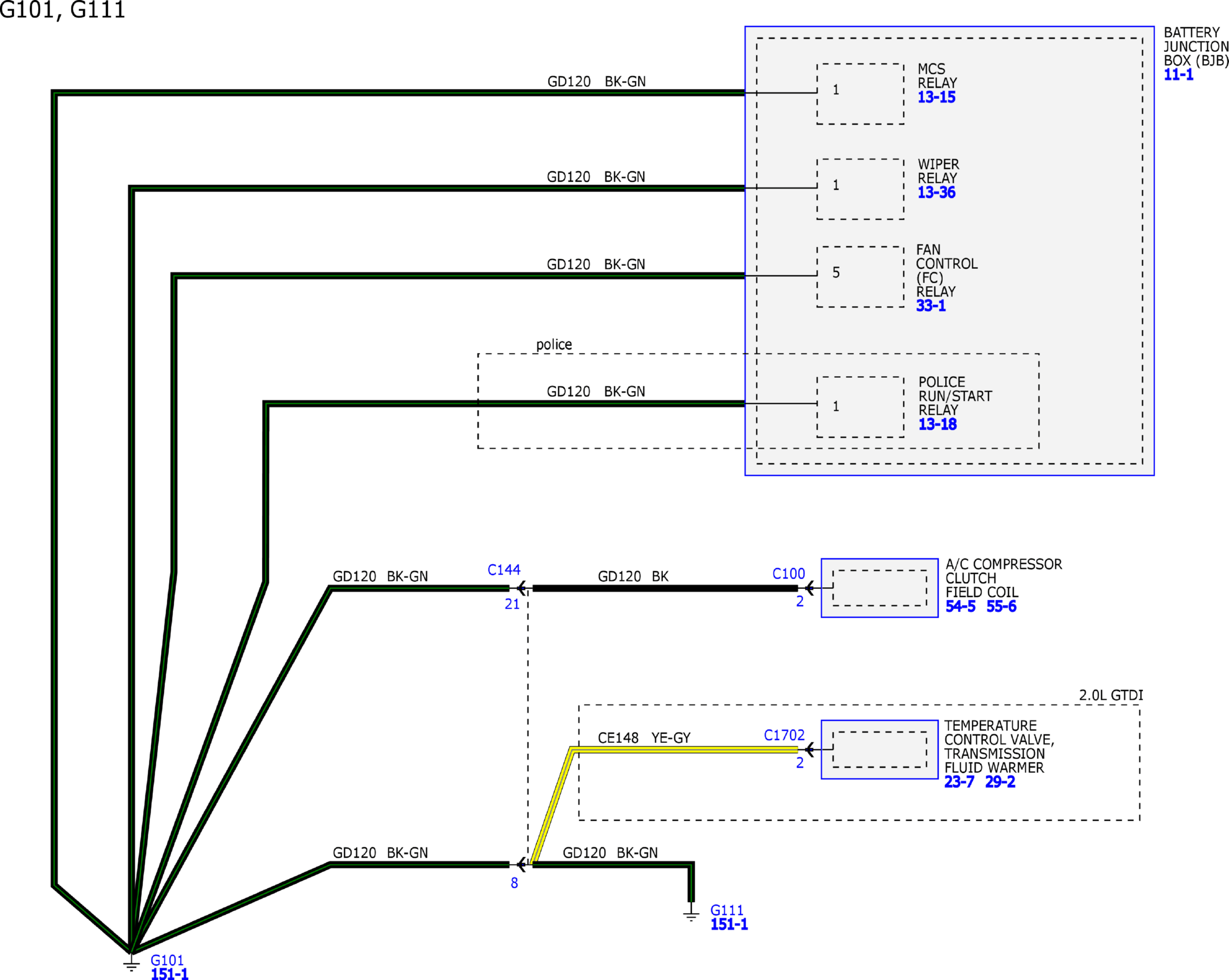

GFDW32735Courtesy of FORD MOTOR COMPANY

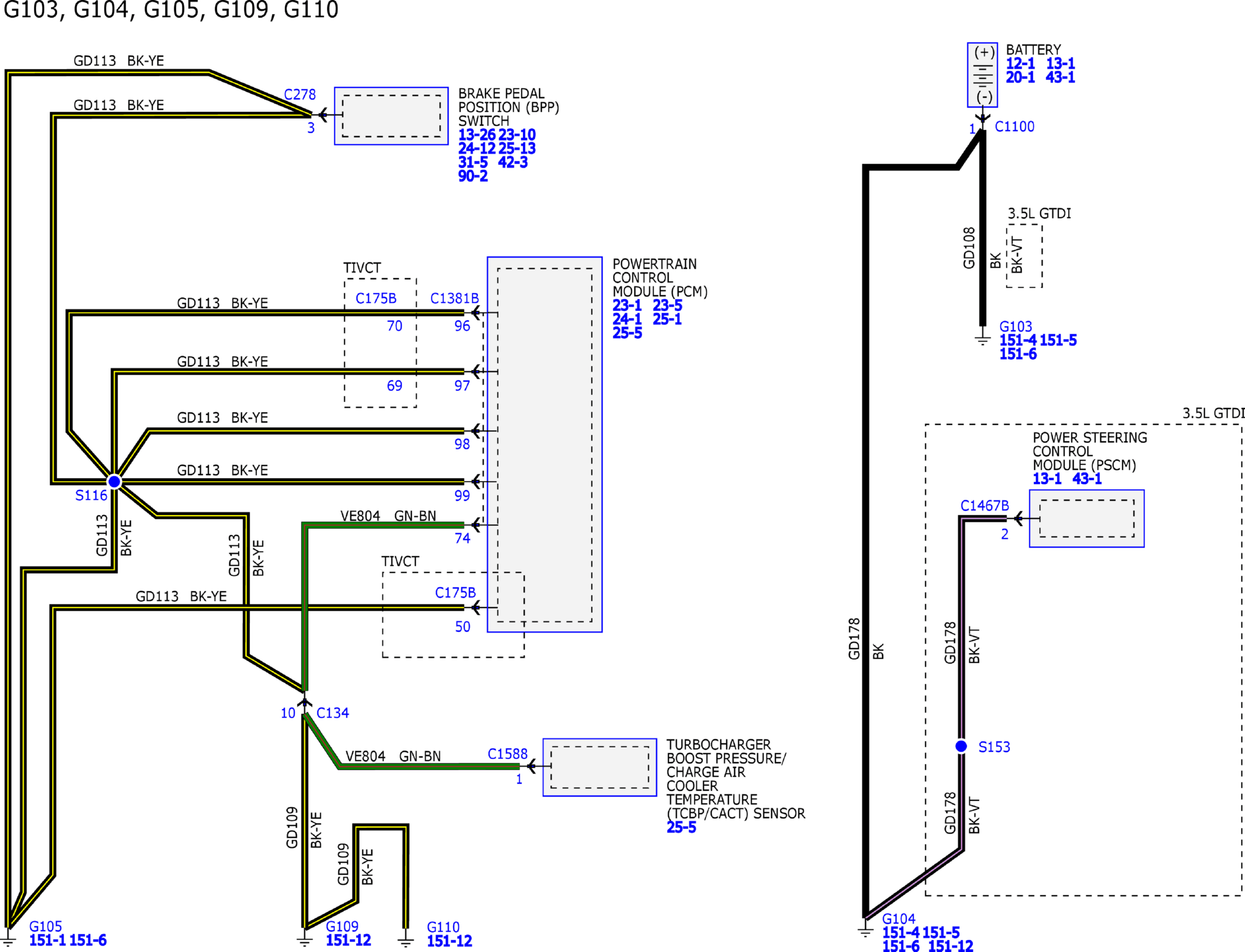

GFDW32736Courtesy of FORD MOTOR COMPANY

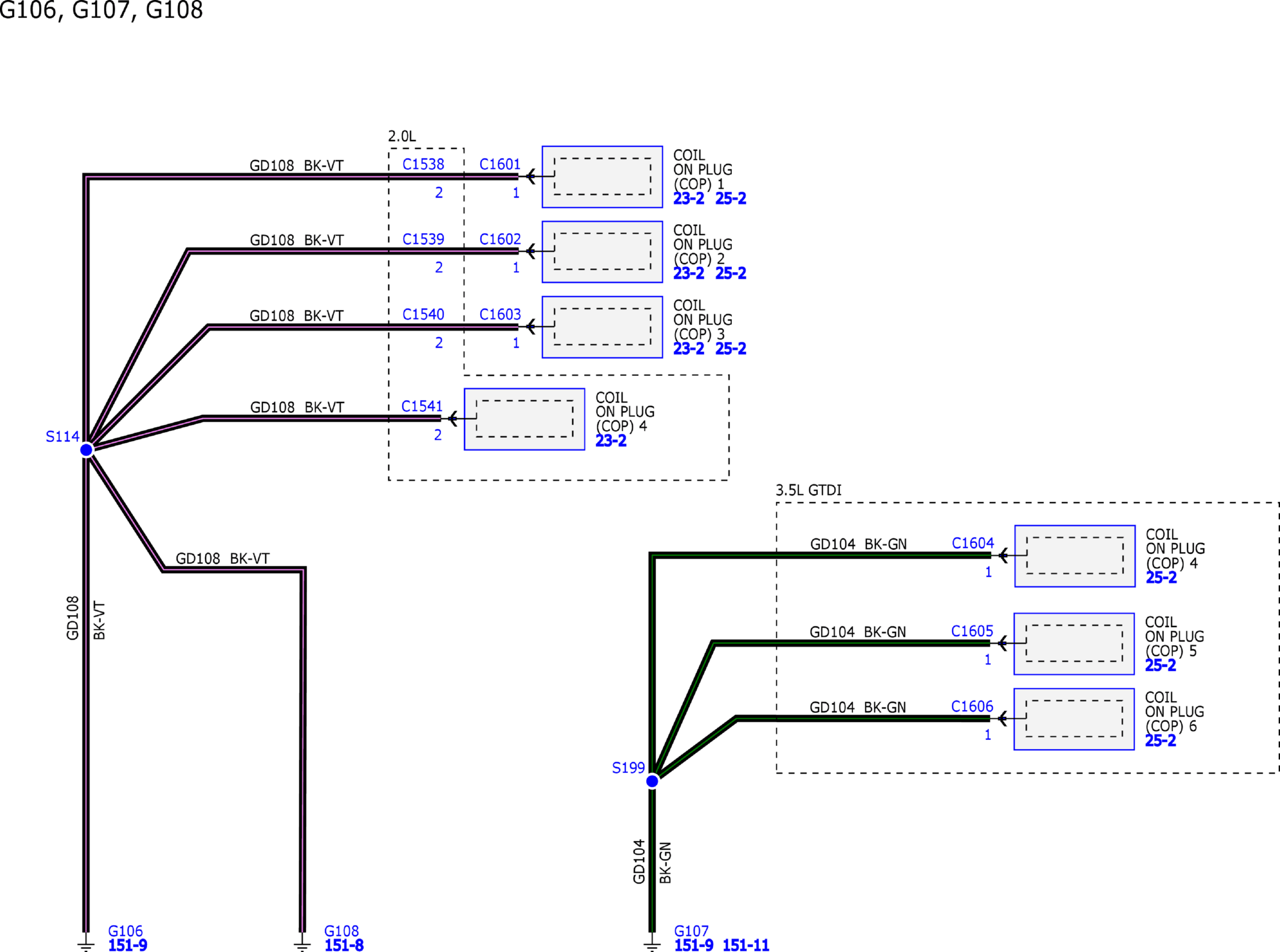

GFDW32737Courtesy of FORD MOTOR COMPANY

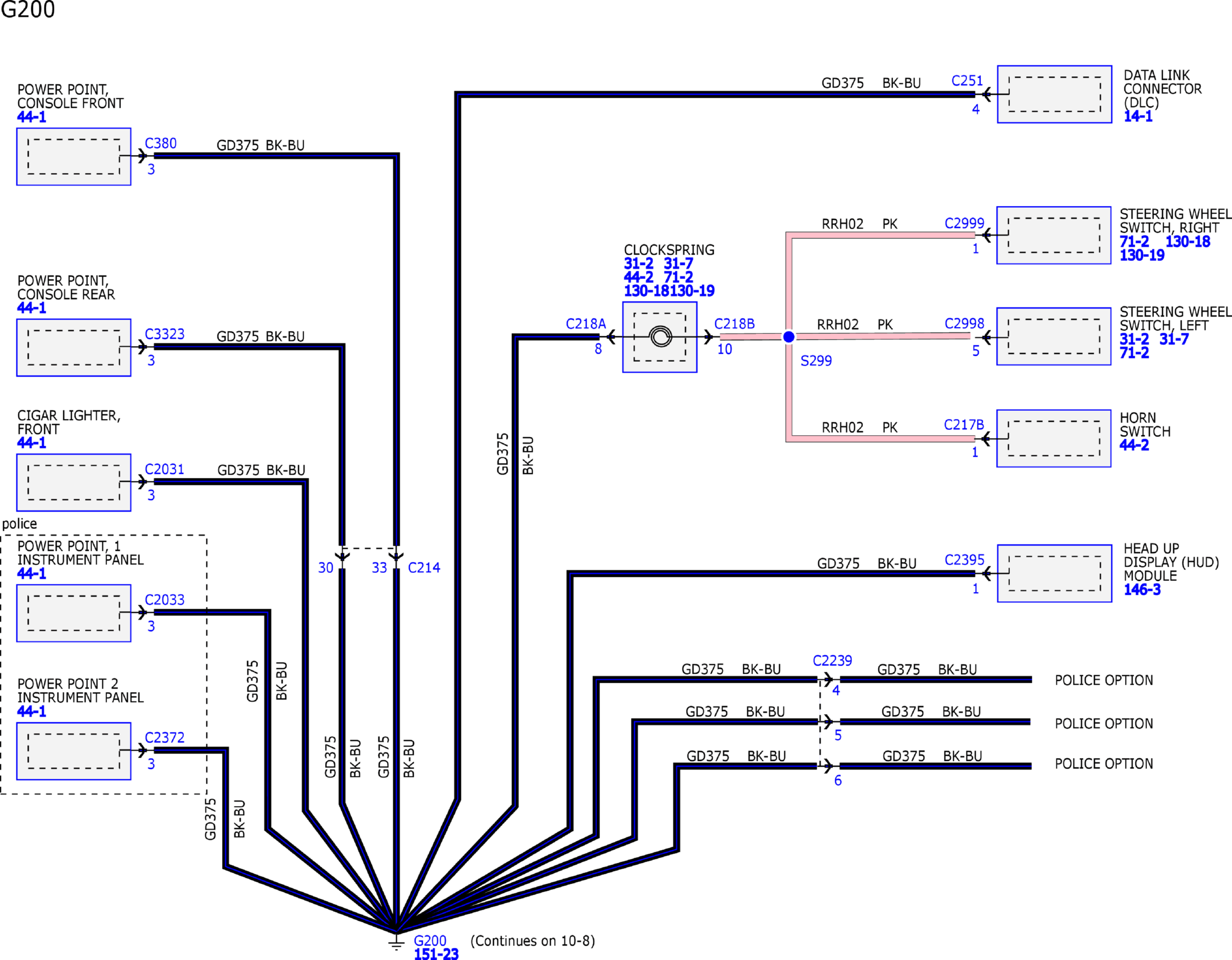

GFDW32738Courtesy of FORD MOTOR COMPANY

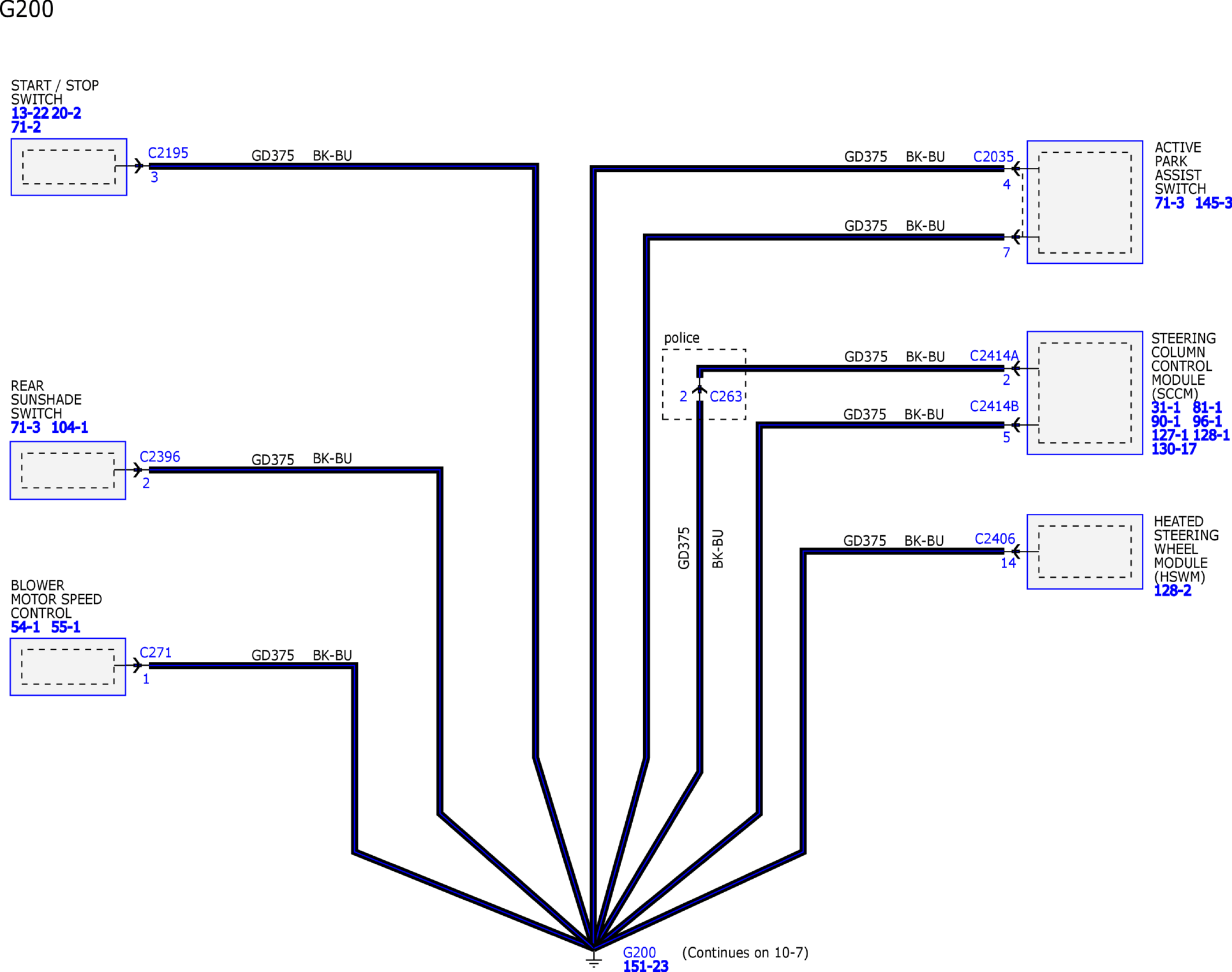

GFDW32739Courtesy of FORD MOTOR COMPANY

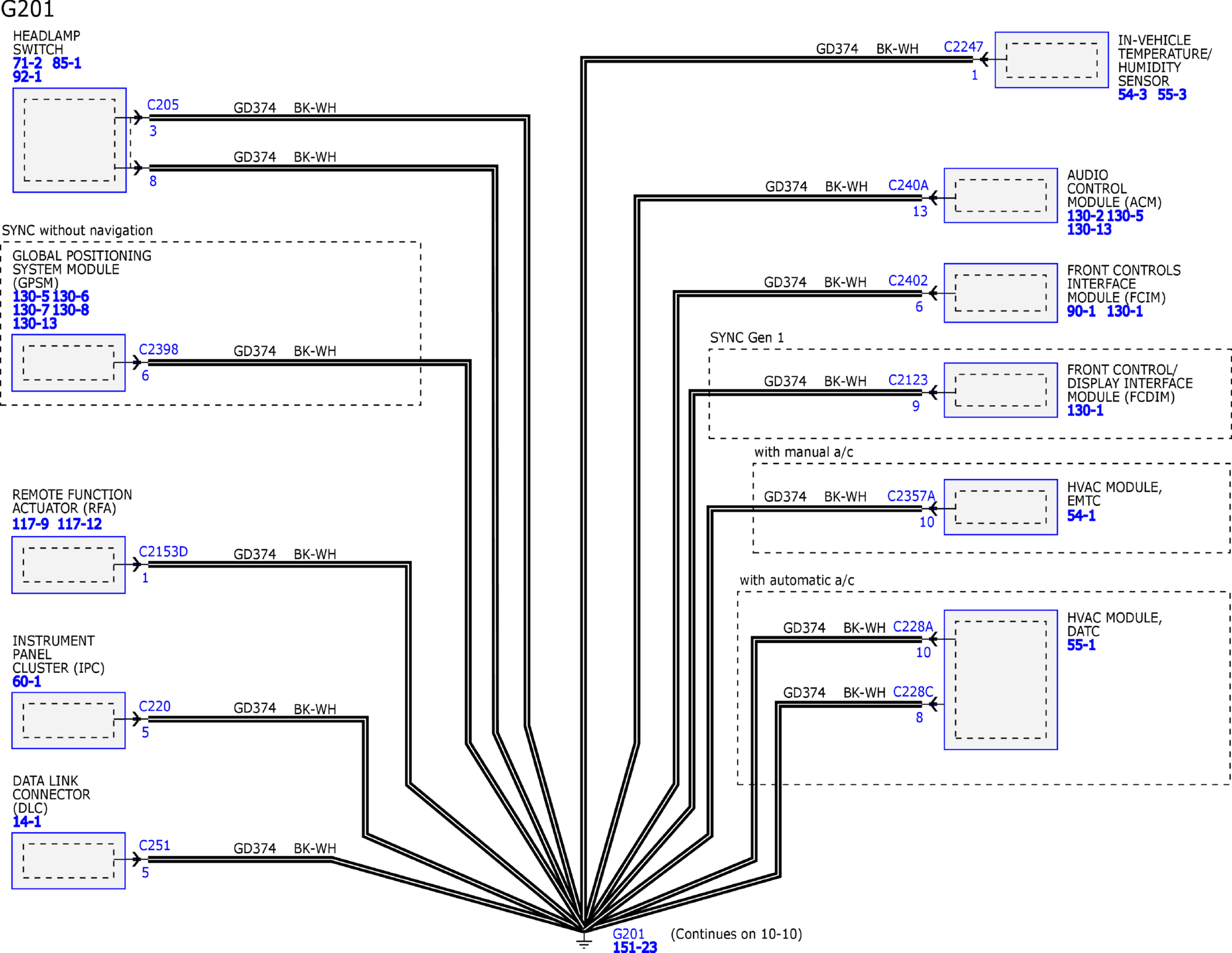

GFDW32740Courtesy of FORD MOTOR COMPANY

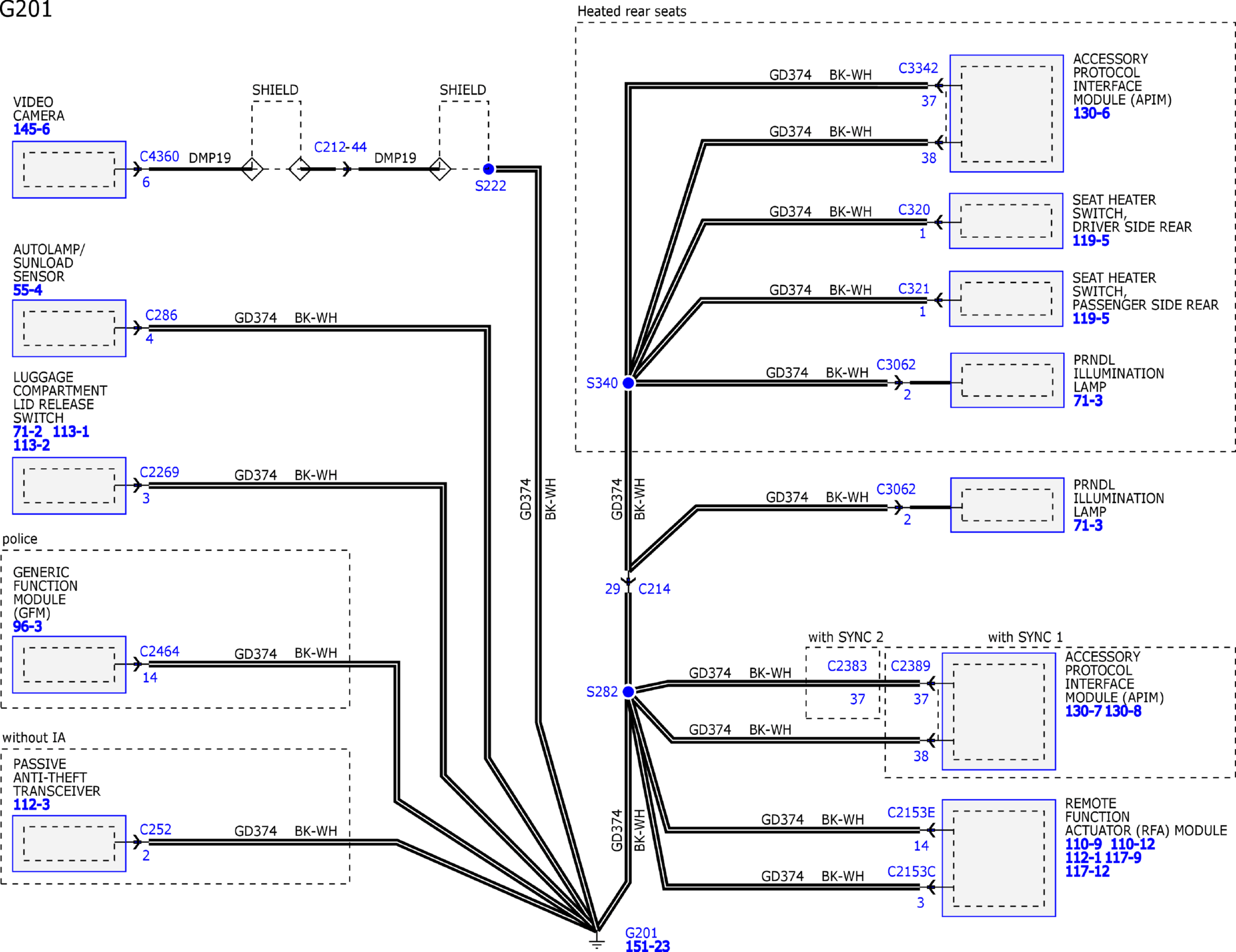

GFDW32741Courtesy of FORD MOTOR COMPANY
