Valve Cover - LH: Notes
Special Tool(s)
| Handle 205-153 (T80T-4000-W) | |
| Installer, VCT Spark Plug Tube Seal 303-1247/2 | |
| Remover, VCT Spark Plug Tube Seal 303-1247/1 |
Material
| Item | Specification |
| Motorcraft ® High Performance Engine RTV Silicone TA-357 | WSE-M4G323-A6 |
| Motorcraft ® Metal Surface Prep ZC-31-B | - |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |
| Motorcraft ® Silicone Gasket Remover ZC-30-A | - |

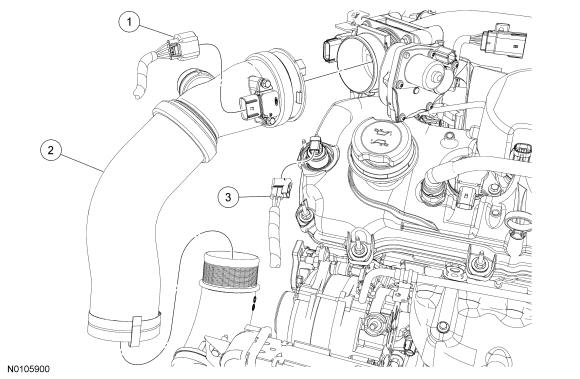

Valve Cover - LH (View 1 of 4)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Turbocharger Boost Pressure (TCBP) /Charge Air Cooler Temperature (CACT) Sensor electrical connector (part of 12C508) |
| 2 | 6F073 | Charge Air Cooler (CAC) outlet pipe |
| 3 | - | LH Variable Camshaft Timing (VCT) solenoid electrical connector (part of 12C508) |

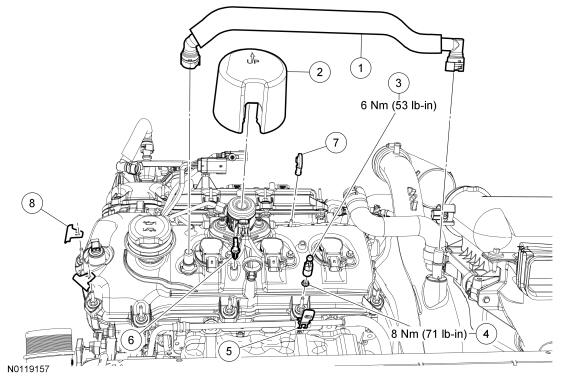

Valve Cover - LH (View 2 of 4)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6758 | Crankcase vent tube |
| 2 | 6N041 | Fuel injection pump noise insulator shield |
| 3 | 6N958 | Engine cover mounting stud |
| 4 | W520100 | Oil supply tube bracket nut |
| 5 | 6N660 | Oil supply tube bracket |
| 6 | 14197 | Wiring harness retainer (part of 12C508) |
| 7 | W700497 | Wiring harness retainer (part of 12C508) |
| 8 | 13A506 | Wiring harness retainer (part of 12C508) (2 required) |

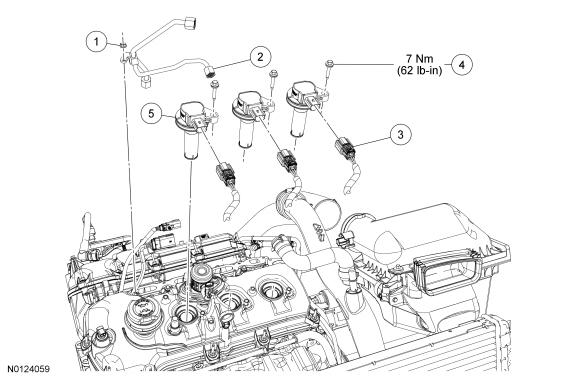

Valve Cover - LH (View 3 of 4)
| Item | Part Number | Description |
|---|---|---|
| 1 | W520100 | Fuel injection pump tube nut |
| 2 | 9J323 | High-pressure fuel tube flare nut (3 required) |
| 3 | - | Ignition coil-on-plug electrical connector (part of 12C508) (3 required) |
| 4 | W708833 | Ignition coil-on-plug bolt (3 required) |
| 5 | 12A375 | Ignition coil-on-plug (3 required) |

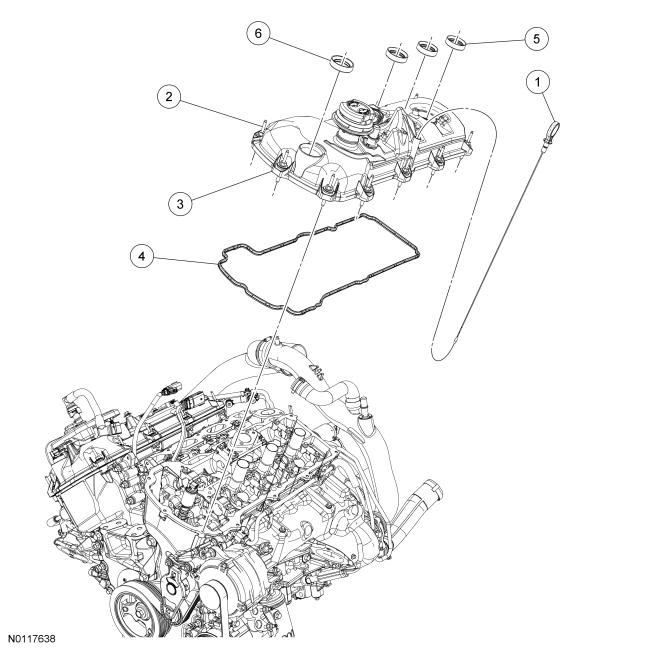

Valve Cover - LH (View 4 of 4)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6750 | Oil level indicator |
| 2 | 6C291 | Valve cover retainer (11 required) |
| 3 | 6A505 | Valve cover |
| 4 | 6A559 | Valve cover gasket |
| 5 | 6P251 | Spark plug tube seal (3 required) |
| 6 | 6C535 | Variable Camshaft Timing (VCT) solenoid seal |
