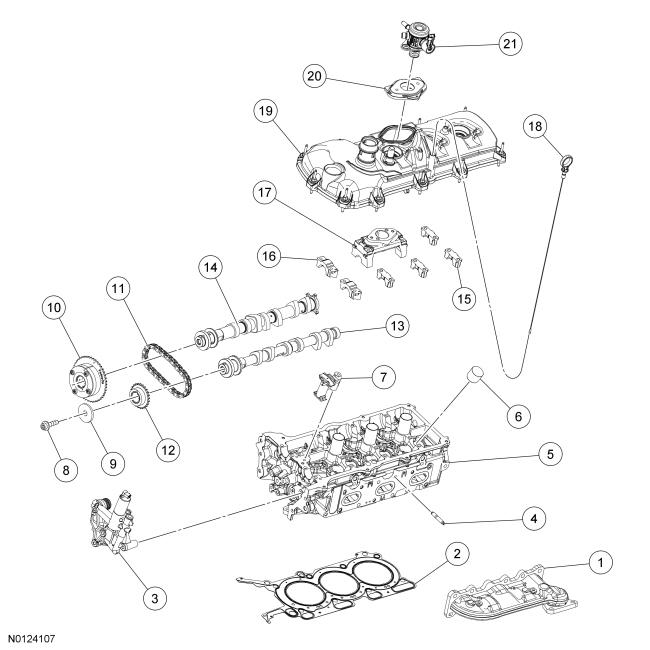

| 1 |
9429 |
Exhaust manifold |
| 2 |
6083 |
LH cylinder head gasket |
| 3 |
6C261 |
LH Variable Camshaft Timing (VCT) housing |
| 4 |
W712244 |
LH exhaust manifold stud (8 required) |
| 5 |
6050 |
LH cylinder head |
| 6 |
6500 |
Valve tappet (32 required) |
| 7 |
6C271 |
LH secondary timing chain tensioner |
| 8 |
6279 |
LH camshaft bolt (2 required) |
| 9 |
W710738 |
LH exhaust camshaft sprocket washer |
| 10 |
6C524 |
LH VCT assembly |
| 11 |
6C256 |
LH secondary timing chain |
| 12 |
6256 |
LH exhaust camshaft sprocket |
| 13 |
6A269 |
LH exhaust camshaft |
| 14 |
6A267 |
LH intake camshaft |
| 15 |
6A258 |
LH camshaft cap (4 required) |
| 16 |
6B281 |
LH camshaft cap (2 required) |
| 17 |
6B287 |
LH camshaft cap |
| 18 |
6750 |
Oil level indicator |
| 19 |
6A505 |
LH valve cover |
| 20 |
9178 |
Fuel injection pump mounting plate |
| 21 |
9D376 |
Fuel injection pump |
