Seat Track Motor Front: Installation

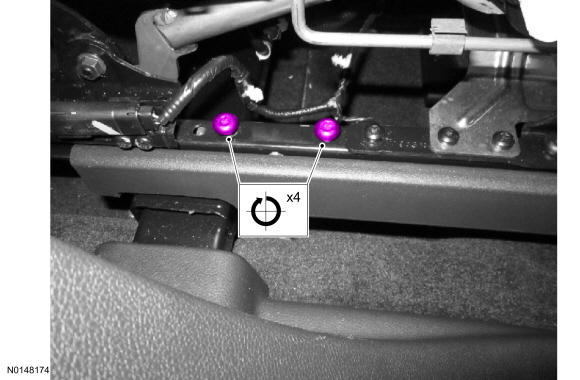

- 1.NOTE: Applying pressure to the lower seat track rail forward or backward can aid in bolt hole alignment.
On both sides.
- 2.NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops. Doing so can result in damage to the seat track requiring its replacement.NOTE: Be sure to drive the seat track evenly or the track will bind during movement.NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

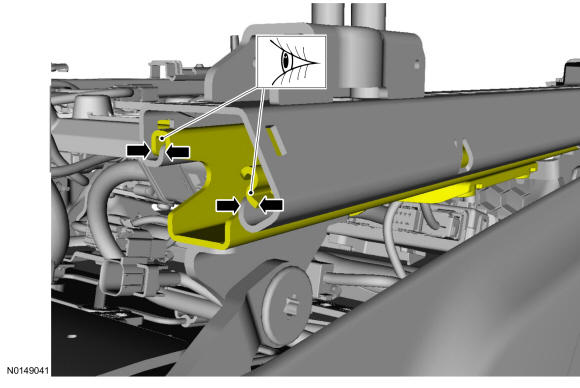

Align the seat track on both sides. General Equipment: Drill(s).

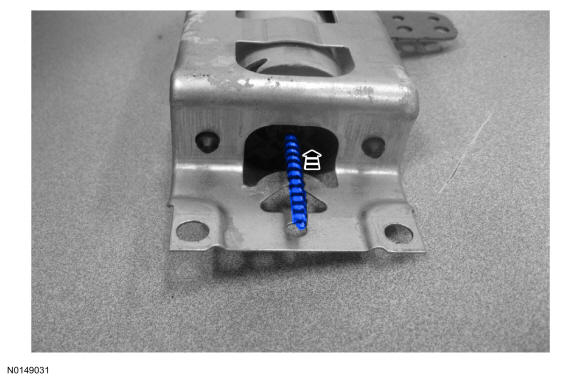

- Insert the original seat track motor cables into the inboard and outboard gearbox and seat track rails.

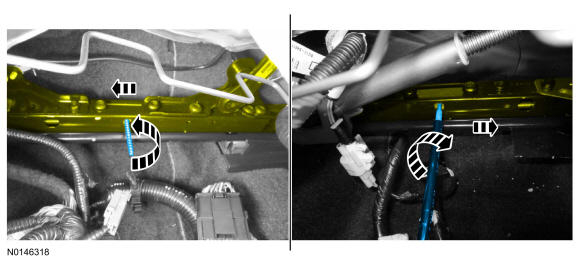

- Drive each gearbox and seat track uniformly until the rear edge of the upper and lower seat tracks are flush.
- 7.NOTE: Applying pressure to either the upper or lower seat track rail can aid in bolt hole alignment.
- 1.

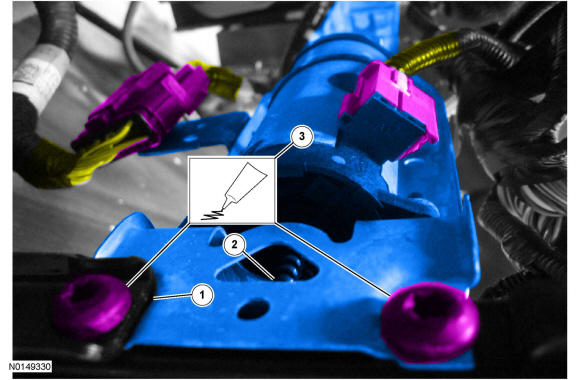

Install the horizontal motor and bracket assembly onto the seat track making sure the bracket is positioned between the seat belt anchor bracket and the upper seat track rail.
- 2.

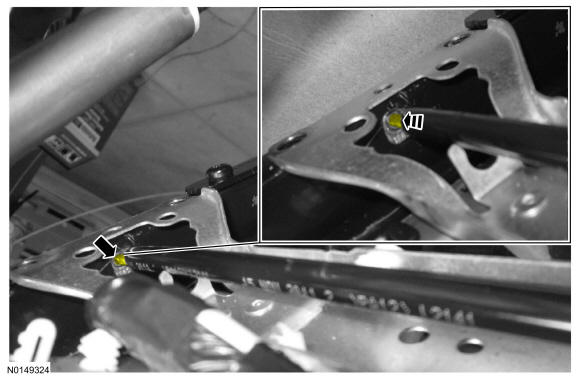

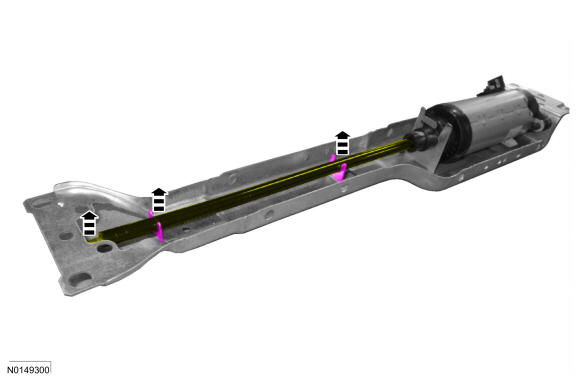

Insert the small cable through the seat track rail and into the gearbox hole.
- 3.
Apply Threadlock and Sealer to the 2 bolts and tighten to 24 Nm (18 lb-ft).
- 1.
- 8.NOTE: The cable felt should not be visible when the cable is correctly engaged to the horizontal motor square drive.

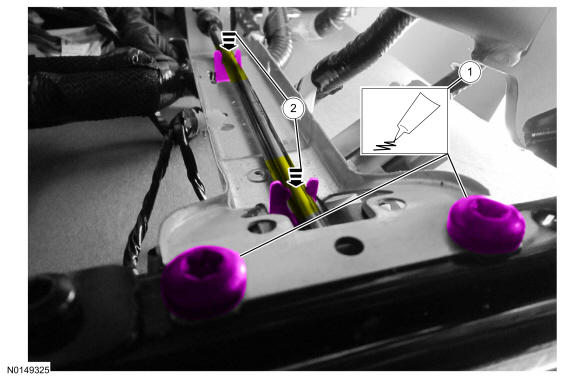

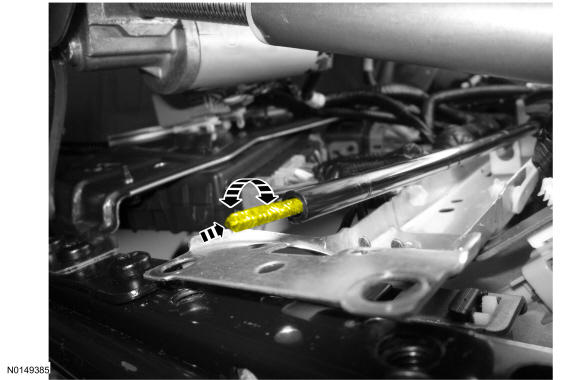

- Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.
- 10.NOTE: Applying pressure to either the upper or lower seat track rail can aid in bolt hole alignment.
- 1.

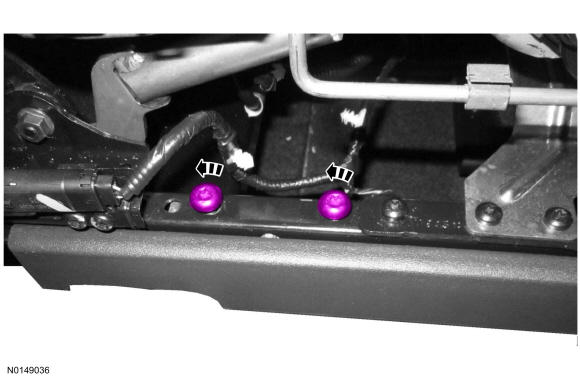

Apply Threadlock and Sealer to the 2 bolts and tighten to 24 Nm (18 lb-ft).
- 2.
-
- 1.
- 11.

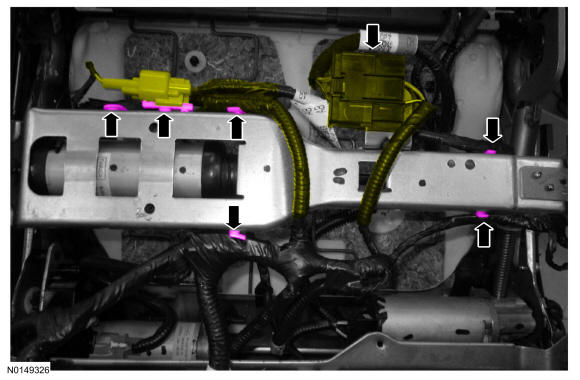

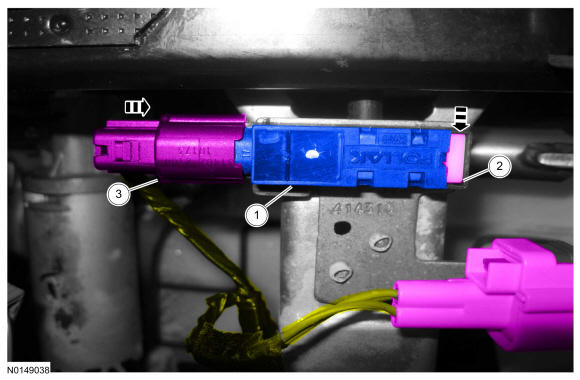

From beneath the seat, route, attach and connect the seat cushion wire harness as noted during removal.
- 17.
Install the front seat. Refer to Seat - Front .
