Seat Backrest Front: Installation

  1. 1.

    Tighten the 4 recliner-to-seat track bolts.

    1. 1.

      Tighten the rear outboard bolt to 48 Nm (35 lb-ft).

    1. 2.

      Tighten the rear inboard bolt to 48 Nm (35 lb-ft).

    1. 3.

      Tighten the front inboard bolt to 48 Nm (35 lb-ft).

    1. 4.

      Tighten the front outboard bolt to 48 Nm (35 lb-ft).

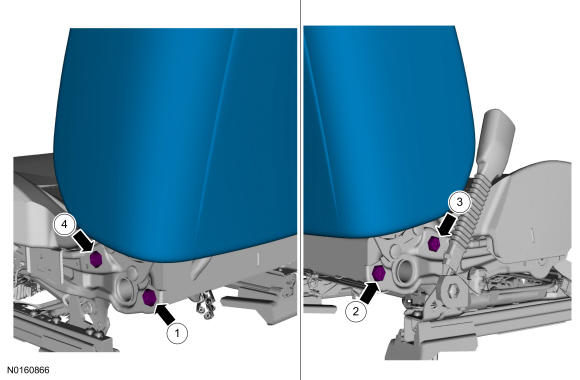

GFD85790Courtesy of FORD MOTOR COMPANY
