Side Obstacle Detection (SOD) Module: Notes
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

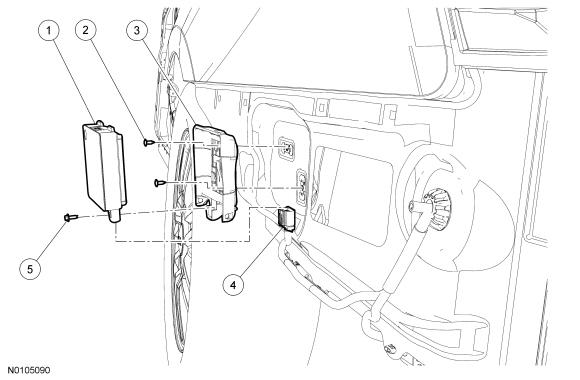

Rear bumper cover removed for clarity.
NOTE:
Left rear quarter panel shown, right side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C689 | Side Obstacle Detection Control Module - Left (SOD-L) /Side Obstacle Detection Control Module - Right (SOD-R) |
| 2 | W705247 | SOD-L /SOD-R bracket screws (2 required) |
| 3 | 14D189 | SOD-L /SOD-R bracket |
| 4 | - | SOD-L /SOD-R electrical connector (part of 14A005) |
| 5 | W503901 | SOD-L /SOD-R screw and washer |
