Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

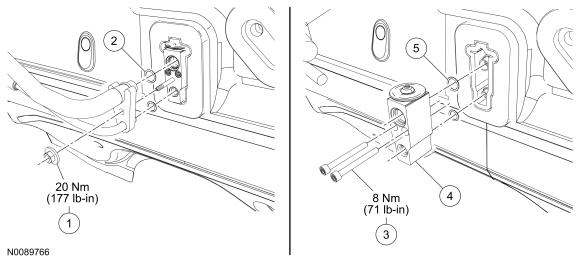

| Item | Part Number | Description |
|---|---|---|
| 1 | W707142 | Thermostatic Expansion Valve (TXV) fitting nut |
| 2 | 19E889 | TXV manifold and tube O-ring seal (2 required) |
| 3 | 7A711 | TXV bolt (2 required) |
| 4 | 19849 | TXV |
| 5 | 19E889 | Evaporator core O-ring seal (2 required) |
