Compressor to Condenser Discharge Line - 3.5L Ti-VCT: Notes
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

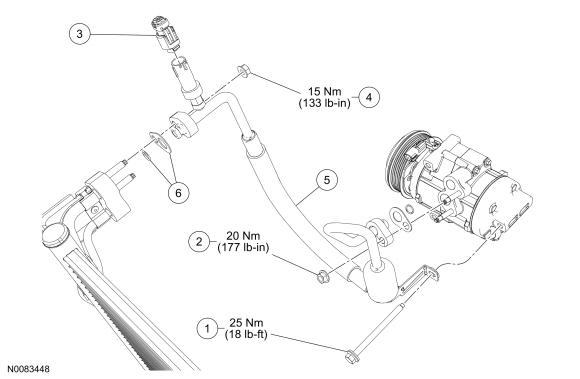

| Item | Part Number | Description |
|---|---|---|
| 1 | W712611 | Rear A/C compressor bolt |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | - | A/C pressure transducer electrical connector (part of 14290) |
| 4 | W520413 | Condenser inlet fitting nut |
| 5 | 19972 | Compressor-to-condenser discharge line |
| 6 | 19B596 | O-ring seal and gasket seal kit (1 required) |
