Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

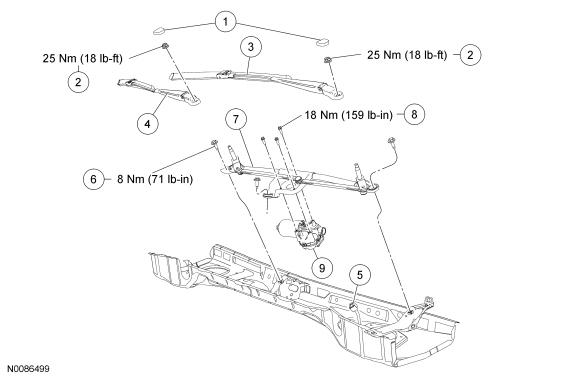

Wipers
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm nut covers |
| 2 | W709581 | Wiper pivot arm nuts (2 required) |
| 3 | 17527 | LH wiper arm |
| 4 | 17526 | RH wiper arm |
| 5 | - | Wiper motor electrical connector (part of 14290) |
| 6 | N806528 | Wiper mounting arm and pivot shaft bolt (3 required) |
| 7 | 17566 | Wiper mounting arm and pivot shaft assembly |
| 8 | - | Wiper motor bolt (part of 17508) (3 required) |
| 9 | 17508 | Wiper motor |

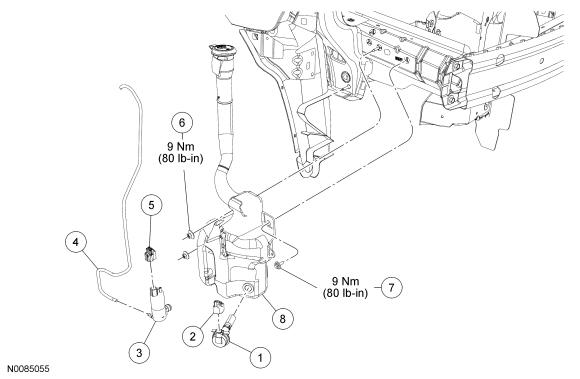

Washer Pump and Reservoir
| Item | Part Number | Description |
|---|---|---|
| 1 | 17B649 | Washer fluid level switch |
| 2 | - | Washer fluid level switch electrical connector (part of 14290) |
| 3 | 17664 | Washer pump |
| 4 | 17A605 | Washer hose |
| 5 | - | Washer pump electrical connector (part of 14290) |
| 6 | W709450 | Washer reservoir nut (2 required) |
| 7 | W706681 | Washer reservoir bolt |
| 8 | 17618 | Washer reservoir |
