Instrument Panel - Exploded View
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

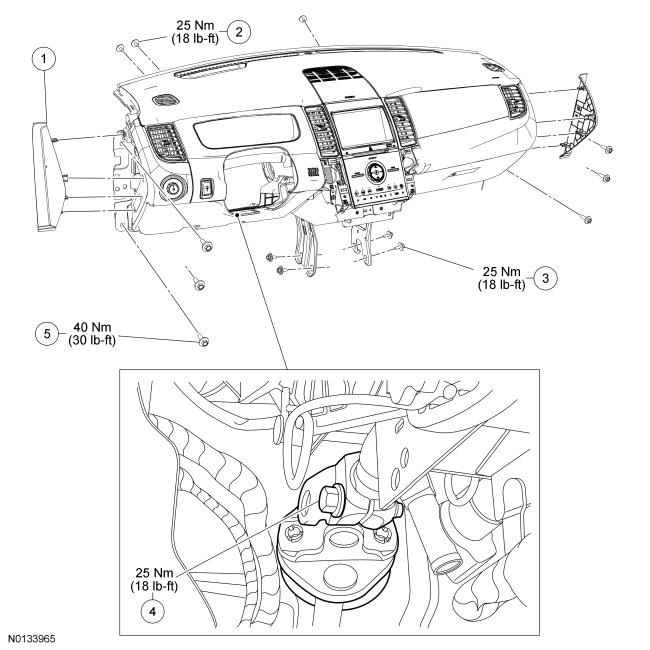

Instrument Panel Trim Panel and Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | 04316 RH/ 04317 LH RH/ 04317 LH | Instrument panel side finish panel |
| 2 | W709178 | Instrument panel upper cowl bolt (3 required) |
| 3 | W709268 | Instrument panel center support bracket bolt (4 required) |
| 4 | W712961 | Steering column shaft-to-steering column bolt |
| 5 | W710259 | Instrument panel side bolt (6 required) |

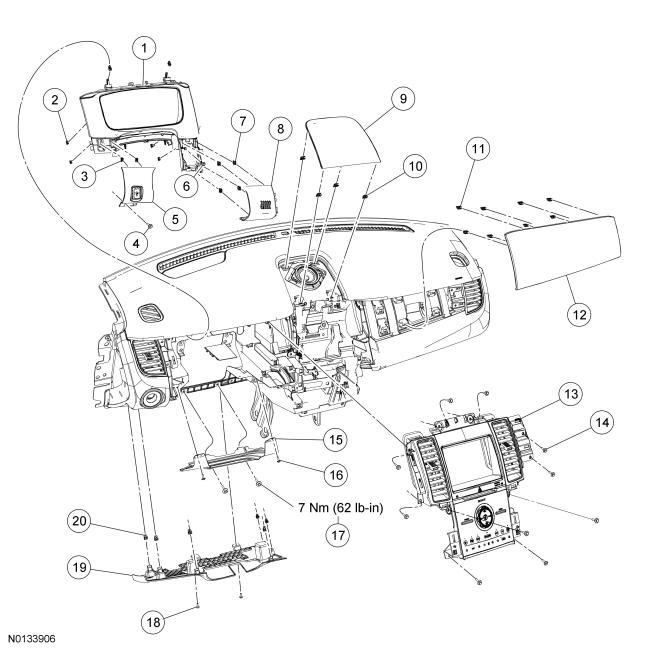

Instrument Panel Finish and Trim Panels
| Item | Part Number | Description |
|---|---|---|
| 1 | 044D70 | Instrument cluster finish panel |
| 2 | W714086 | Instrument cluster finish panel retaining clip (6 required) |
| 3 | - | LH instrument panel finish panel retaining clip (part of 044L54) (2 required) |
| 4 | W707628 | LH instrument panel finish panel screw |
| 5 | 044L54 | LH instrument panel finish panel |
| 6 | W707628 | Instrument cluster finish panel screw |
| 7 | - | In-vehicle temperature sensor cover retaining clip (part of 042D90) (4 required) |
| 8 | 042D90 | In-vehicle temperature sensor cover |
| 9 | 04405 | Instrument panel upper cover |
| 10 | - | Instrument panel upper cover retaining clip (part of 04405) (4 required) |
| 11 | - | RH instrument panel finish moulding retaining clip (part of 04268) (8 required) |
| 12 | 04268 | RH instrument panel finish moulding |
| 13 | 04302 | Center instrument panel finish panel |
| 14 | W707628 | Center instrument panel finish panel screw (10 required) |
| 15 | 017A26 | Instrument panel reinforcement plate |
| 16 | N808453 | Instrument panel reinforcement plate screw (2 required) |
| 17 | N807316 | Instrument panel reinforcement plate bolt (2 required) |
| 18 | N808453 | Steering column opening trim panel screw (2 required) |
| 19 | 044F08 | Steering column opening trim panel |
| 20 | - | Steering column opening trim panel retaining clip (part of 044F08) (6 required) |

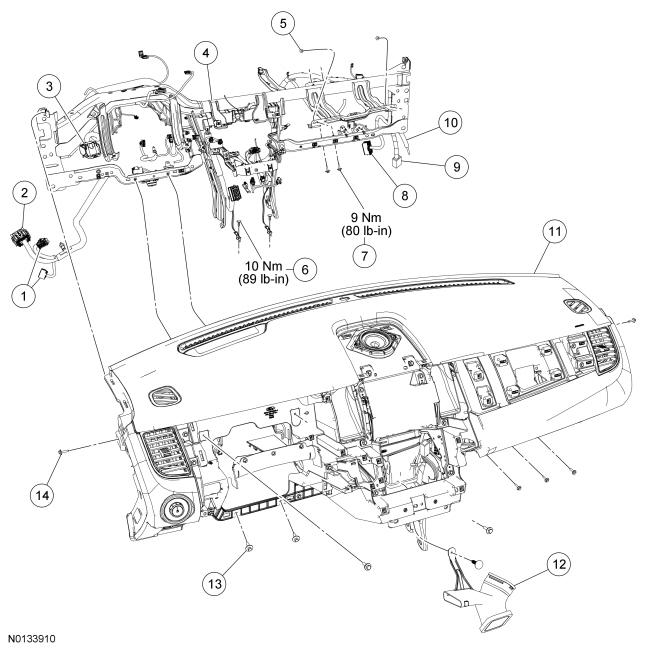

Instrument Panel Upper Section
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | Smart Junction Box (SJB) electrical connectors |
| 2 | 14401 | Instrument panel lower LH bulkhead electrical connector |
| 3 | 14401 | Instrument panel upper LH bulkhead electrical connector |
| 4 | 04545 | In-vehicle crossbeam |
| 5 | W707607 | Instrument panel rear screw (2 required) |
| 6 | W706281 | Ground wire bolt |
| 7 | W705583 | Passenger side air bag-to-crossbeam bolt (2 required) |
| 8 | 14401 | Instrument panel RH bulkhead electrical connector |
| 9 | 14401 | Satellite radio connector |
| 10 | 14401 | Antenna cable |
| 11 | 04320 | Instrument panel upper section |
| 12 | 19B680 | Console duct Y adapter |
| 13 | W707628 | Instrument panel front screw (7 required) |
| 14 | W707628 | Instrument panel side screw (2 required) |

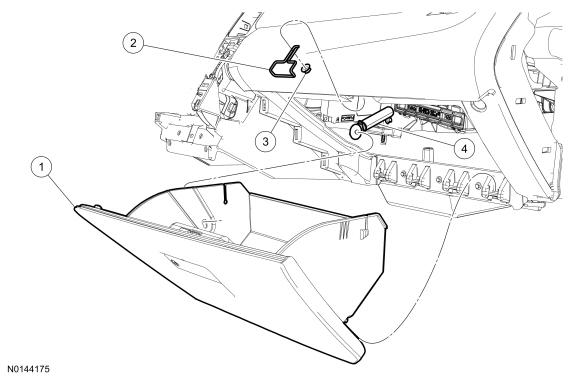

Glove Compartment
| Item | Part Number | Description |
|---|---|---|
| 1 | 060T10 | Glove compartment assembly |
| 2 | 06157 | Glove compartment striker |
| 3 | N805572 | Glove compartment striker nut |
| 4 | 06102 | Glove compartment damper |
