Hydraulic Control Unit (HCU): Notes
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Special Tool(s)
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

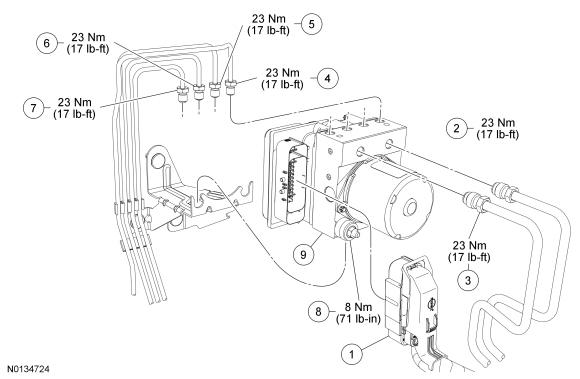

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS electrical connector (part of 14A005) |
| 2 | - | Master cylinder secondary brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C360) |
| 3 | - | Master cylinder primary brake tube-to-HCU fitting (part of 2C360) |
| 4 | - | LH front brake tube-to-HCU fitting (part of 2C296) |
| 5 | - | RH rear brake tube-to-HCU fitting (part of 2C296) |
| 6 | - | LH rear brake tube-to-HCU fitting (part of 2C296) |
| 7 | - | RH front brake tube-to-HCU fitting (part of 2C296) |
| 8 | 3B676 | Bracket-to-HCU nut (2 required) |
| 9 | 2C405 | HCU |
