Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

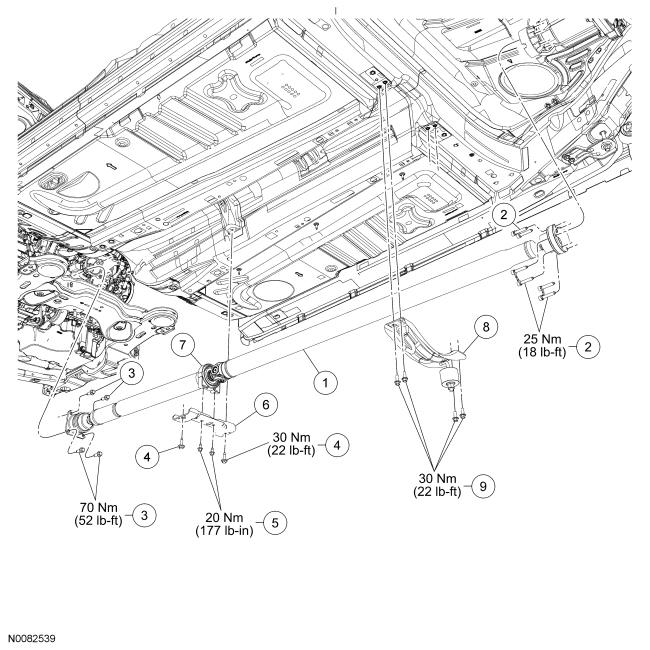

| Item | Part Number | Description |
|---|---|---|
| 1 | 4R602 | Driveshaft assembly |
| 2 | W790063 | Rear Drive Unit(RDU) pinion flange bolt and washer assemblies (3 required) |
| 3 | W711918 | Power Transfer Unit(PTU) flange bolts (4 required) |
| 4 | W701834 | Outer center bearing bracket bolts (2 required) |
| 5 | W500220 | Inner center bearing bolts (2 required) |
| 6 | 4B403 | Center bearing bracket |
| 7 | - | Center bearing (part of 4602) |
| 8 | 5A204 | Exhaust support brace |
| 9 | - | Exhaust support brace bolts (part of 5A204) (4 required) |
