Front Suspension Exploded View
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

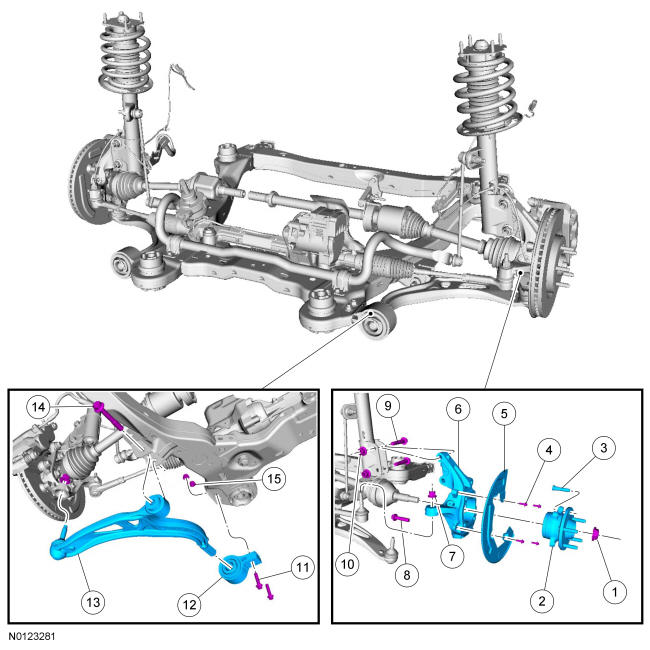

| Item | Part Number | Description |
|---|---|---|
| 1 | W705967 | Wheel hub nut |
| 2 | 2C300 | Wheel bearing and wheel hub |
| 3 | 1107 | Wheel stud (also part of 1104) (5 required) |
| 4 | W505255 | Splash shield screw (4 required) |
| 5 | 2K005 LH/ 2K004 RH LH/ 2K004 RH | Splash shield |
| 6 | 3K171 LH/ 3K170 RH LH/ 3K170 RH | Wheel knuckle |
| 7 | W710015 | Tie-rod end nut |
| 8 | W714516 | Wheel bearing and wheel hub bolt (4 required) |
| 9 | W715295 | Lower strut-to-wheel knuckle bolt (2 required) |
| 10 | W520216 | Lower strut-to-wheel knuckle nut (2 required) |
| 11 | W708848 | Lower control arm rearward bolt (2 required) |
| 12 | 3C403 LH/ 3C339 RH LH/ 3C339 RH | Lower control arm rearward bushing |
| 13 | 3051 LH/ 3042 RH LH/ 3042 RH | Lower control arm |
| 14 | W710174 | Lower control arm forward bolt |
| 15 | W520515 | Lower control arm rearward nut (2 required) |
| 16 | W714890 | Lower ball joint nut |

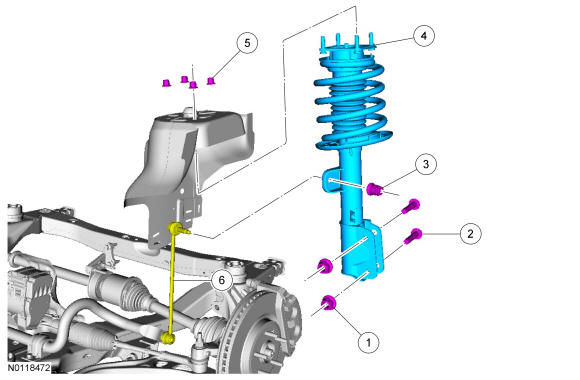

| Item | Part Number | Description |
|---|---|---|
| 1 | W520215 | Lower strut-to-wheel knuckle nut (2 required) |
| 2 | W710396 | Lower strut-to-wheel knuckle bolt (2 required) |
| 3 | W713968 | Stabilizer bar link upper nut |
| 4 | 5B421 LH/ 5B420 RH LH/ 5B420 RH | Strut and spring assembly |
| 5 | W714682 | Upper strut mount nut (4 required) |
| 6 | 5K484 | Stabilizer bar link |

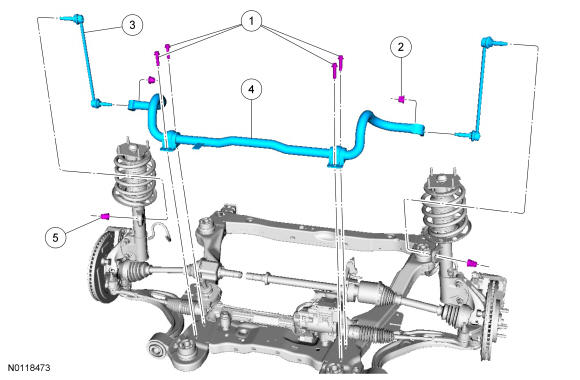

| Item | Part Number | Description |
|---|---|---|
| 1 | W505274 | Stabilizer bar bracket bolts (4 required) |
| 2 | W520215 | Stabilizer bar link lower nut (2 required) |
| 3 | 5K484 | Stabilizer bar link (2 required) |
| 4 | 5482 | Stabilizer bar assembly |
| 5 | W713968 | Stabilizer bar link upper nut (2 required) |
