Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
| Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A | ESE-M1C171-A |

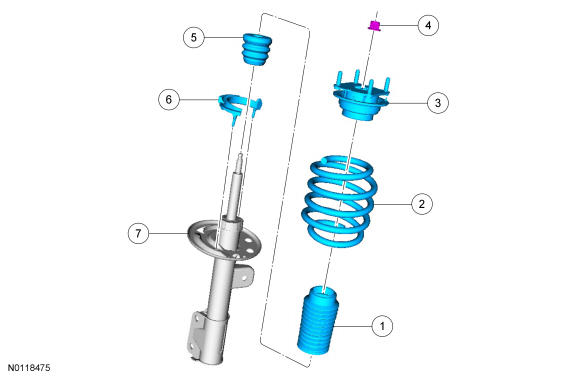

| Item | Part Number | Description |
|---|---|---|
| 1 | 18A047 | Dust boot |
| 2 | 5310 | Spring |
| 3 | 18183 | Upper strut mount |
| 4 | W713968 | Strut rod nut |
| 5 | 18198 | Jounce bumper |
| 6 | 5415 | Lower spring isolator |
| 7 | 18124 | Strut assembly |
