Ambient Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2016 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

All Vehicles

1.

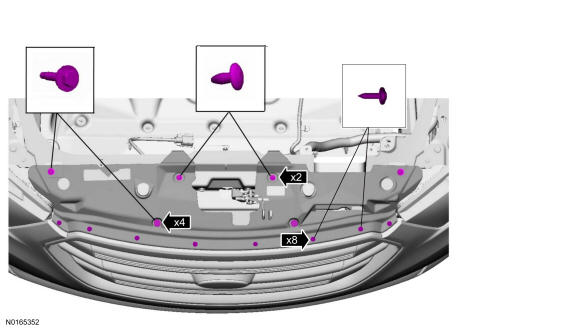

Remove the upper radiator sight shield.

Courtesy of FORD MOTOR COMPANY

Vehicles with Active Grille Shutter

2.

Remove the grille shutter. For additional information, refer to Front End Body Panels .

All Vehicles

3.

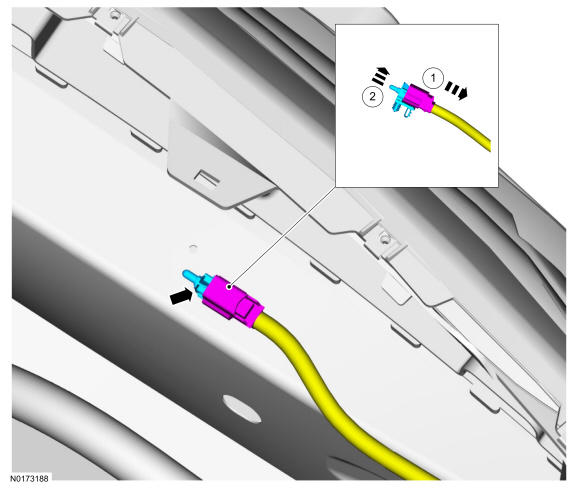

Disconnect the ambient air temperature sensor electrical connector and remove the ambient air temperature sensor.

Courtesy of FORD MOTOR COMPANY
