Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2016 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

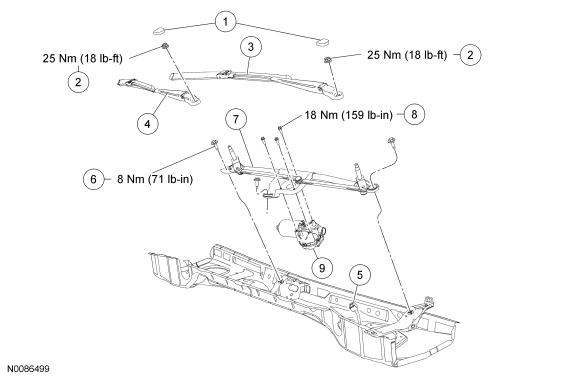

Wipers
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm nut covers |
| 2 | W709581 | Wiper pivot arm nuts (2 required) |
| 3 | 17527 | LH wiper arm |
| 4 | 17526 | RH wiper arm |
| 5 | - | Wiper motor electrical connector (part of 14290) |
| 6 | N806528 | Wiper mounting arm and pivot shaft bolt (3 required) |
| 7 | 17566 | Wiper mounting arm and pivot shaft assembly |
| 8 | - | Wiper motor bolt (part of 17508) (3 required) |
| 9 | 17508 | Wiper motor |

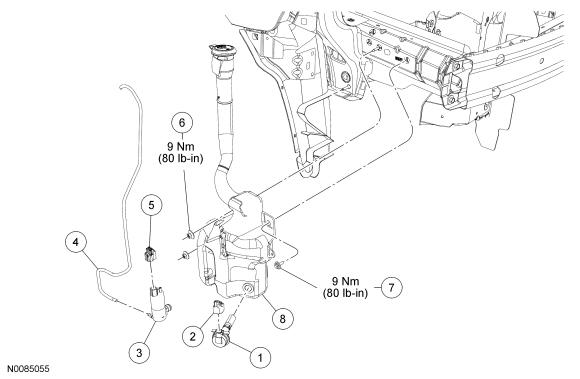

Washer Pump and Reservoir
| Item | Part Number | Description |
|---|---|---|
| 1 | 17B649 | Washer fluid level switch |
| 2 | - | Washer fluid level switch electrical connector (part of 14290) |
| 3 | 17664 | Washer pump |
| 4 | 17A605 | Washer hose |
| 5 | - | Washer pump electrical connector (part of 14290) |
| 6 | W709450 | Washer reservoir nut (2 required) |
| 7 | W706681 | Washer reservoir bolt |
| 8 | 17618 | Washer reservoir |
