Overhead Console: Removal

Coupe

1. 1.

   Lower the headliner. Refer to: Headliner - Lowering .

1. 2.

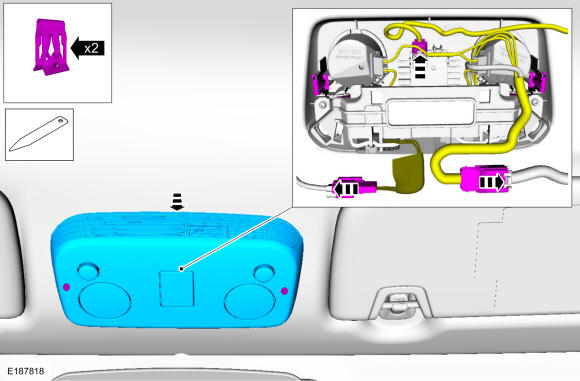

   Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

Convertible

1. 3.

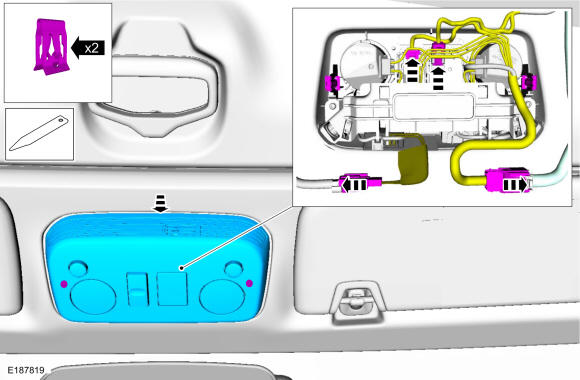

   Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
