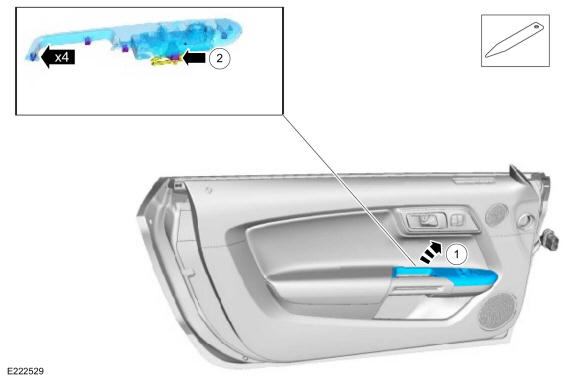

Front Door Window Control Switch: Removal

Both doors

NOTE: LH side shown, RH side similar.
1. 1.
   Remove the front door window control switch.

   1. 1.

      Remove the front door window control switch and the bezel assembly.

   1. 2.

      Disconnect the front door window control switch electrical connector.

Courtesy of FORD MOTOR COMPANY

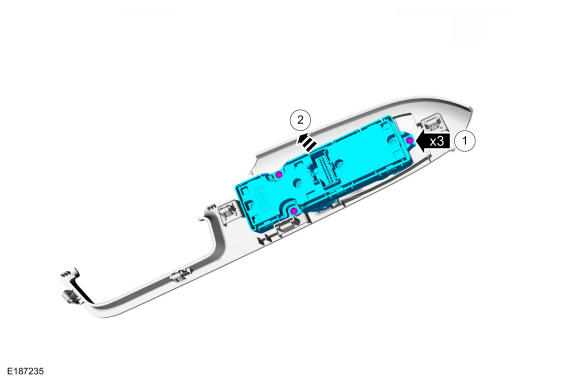

Driver side

NOTE: This step is only necessary when installing a new component.
1. 2.
   Remove the front door window control switch.

   1. 1.

      Remove the retainers.

   1. 2.

      Remove the front door window control switch from the bezel.

Courtesy of FORD MOTOR COMPANY

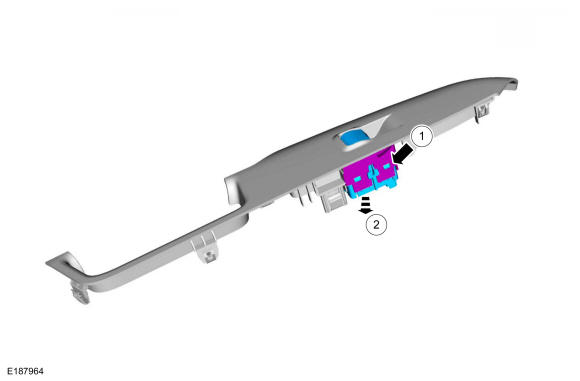

Passenger side

NOTE: This step is only necessary when installing a new component.
1. 3.
   Remove the front door window control switch.

   1. 1.

      Release the retaining tab from the front door window control switch.

   1. 2.

      Remove the front door window control switch from the bezel.

Courtesy of FORD MOTOR COMPANY
