OEM Ground Distribution: Grounds

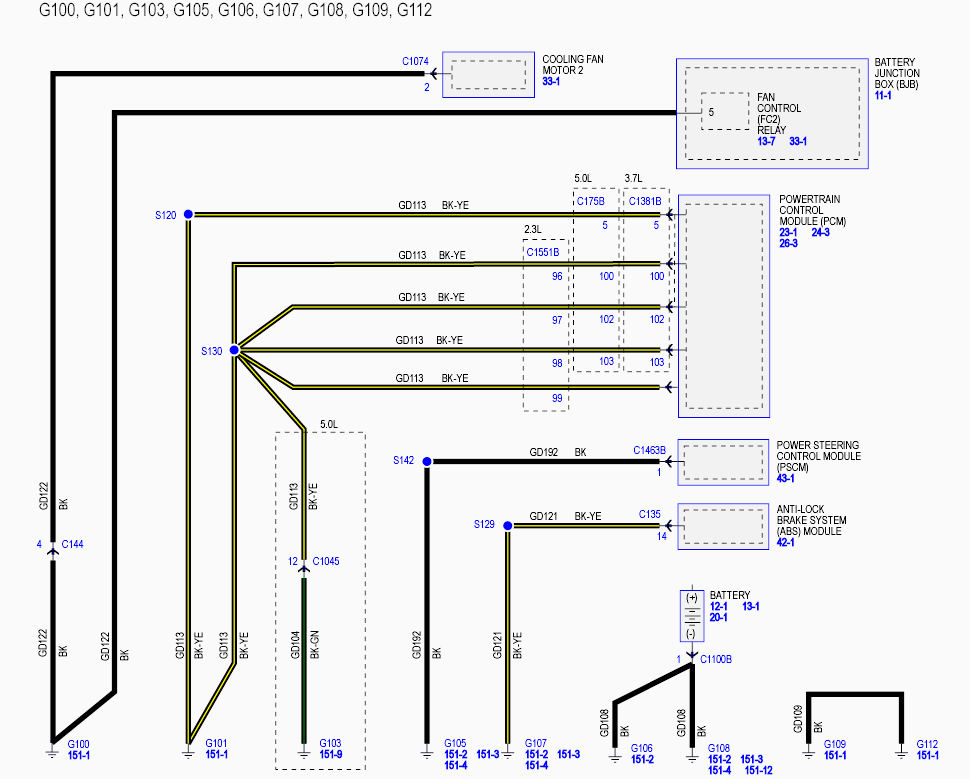

G00555389

Courtesy of

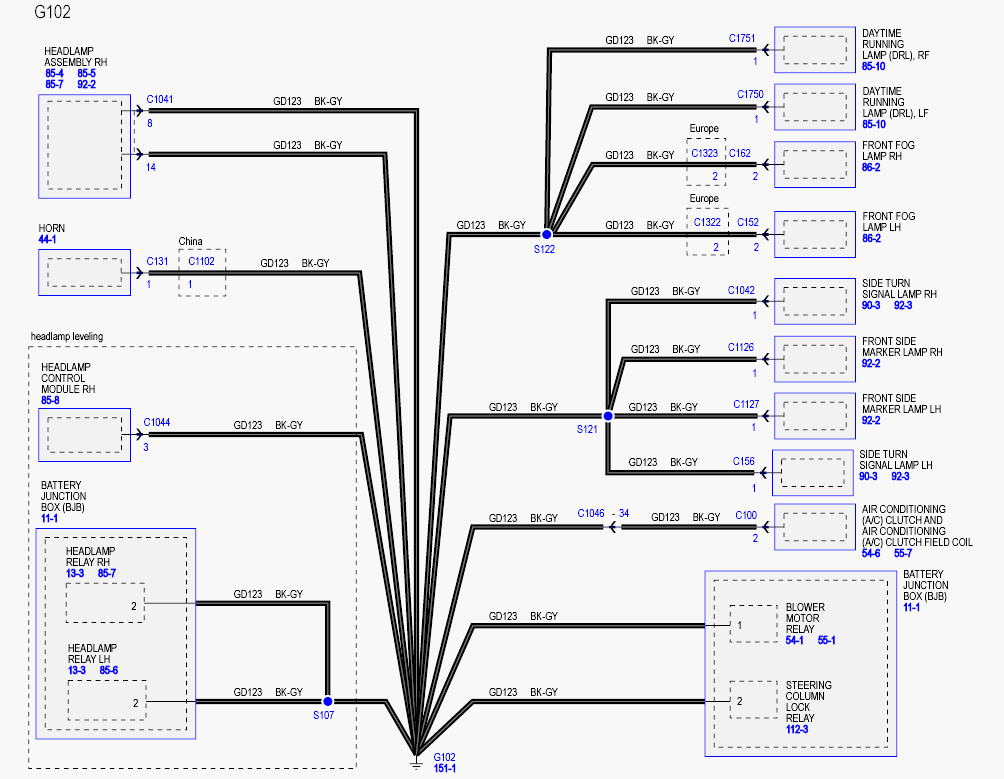

G00555390

Courtesy of

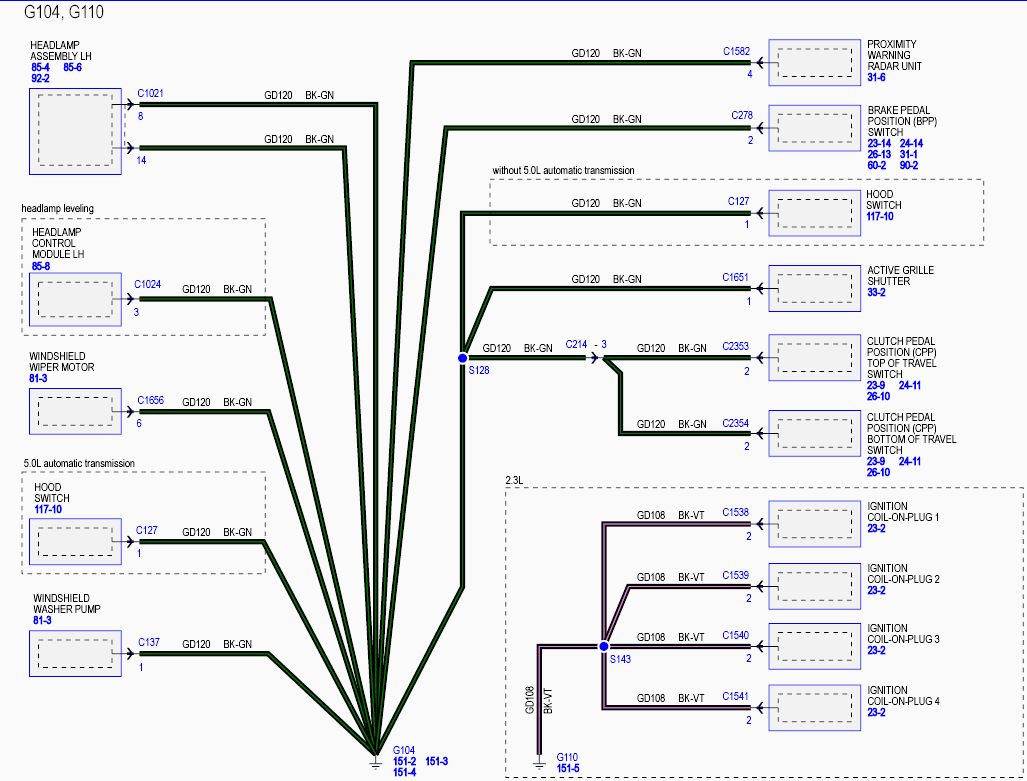

G00555391

Courtesy of

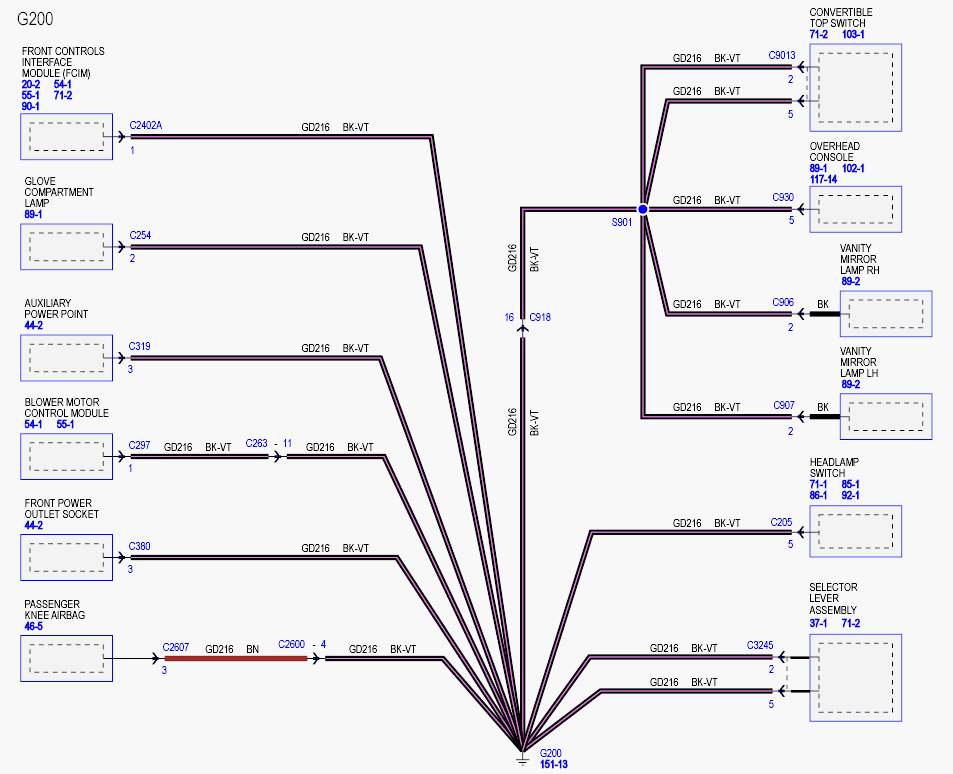

G00555392

Courtesy of

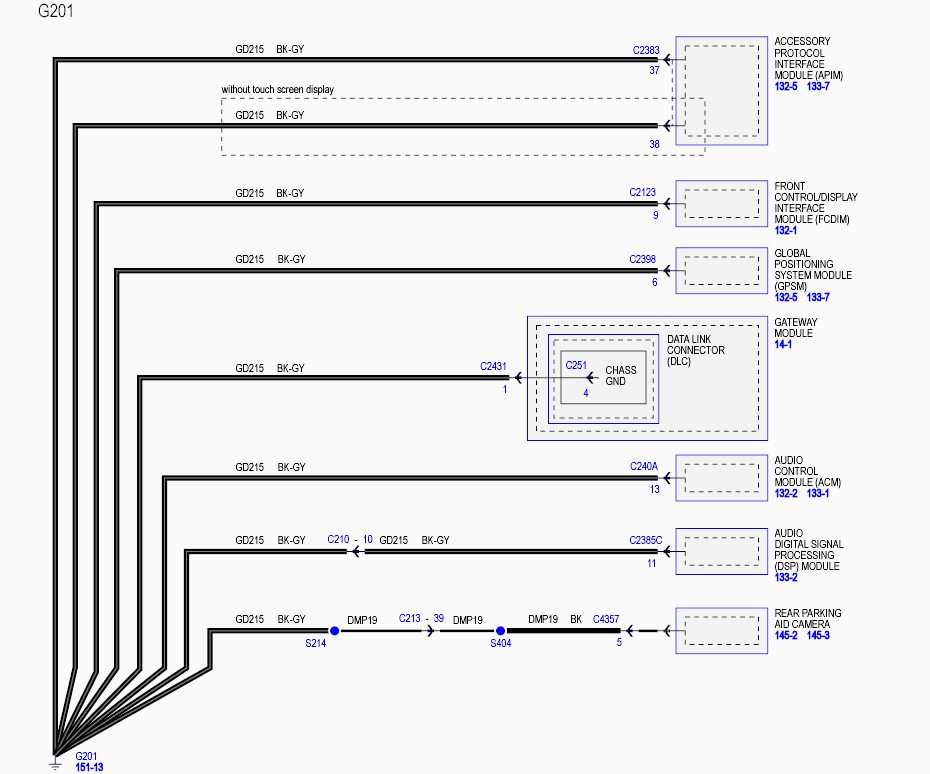

G00555393

Courtesy of

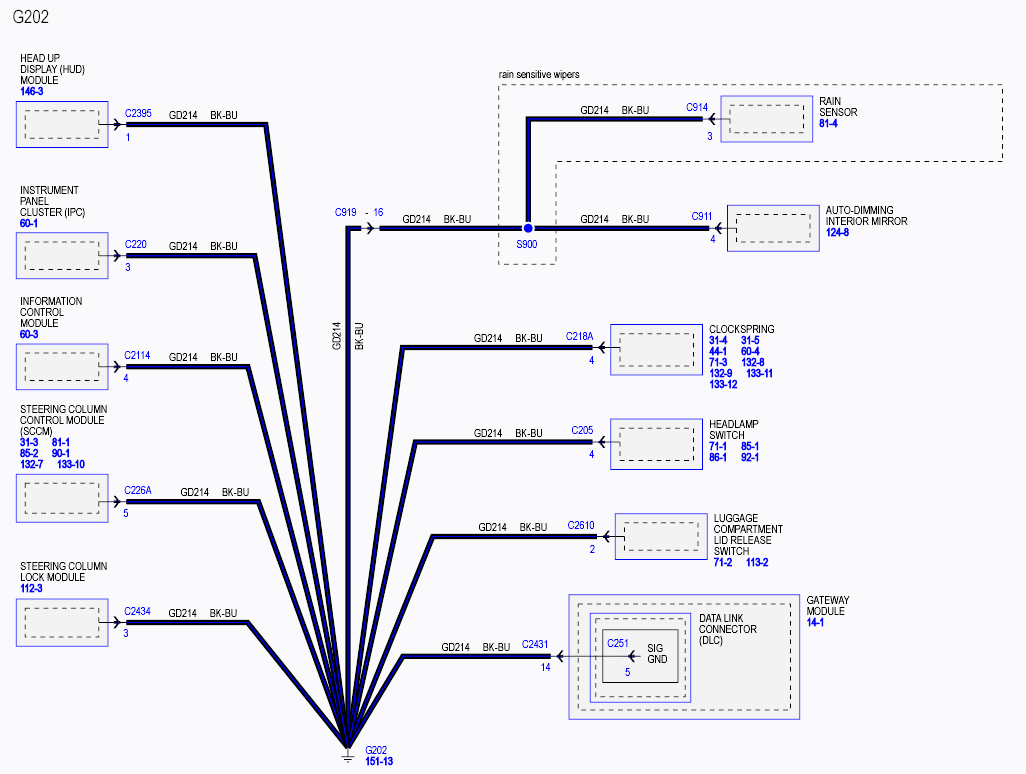

G00555394

Courtesy of

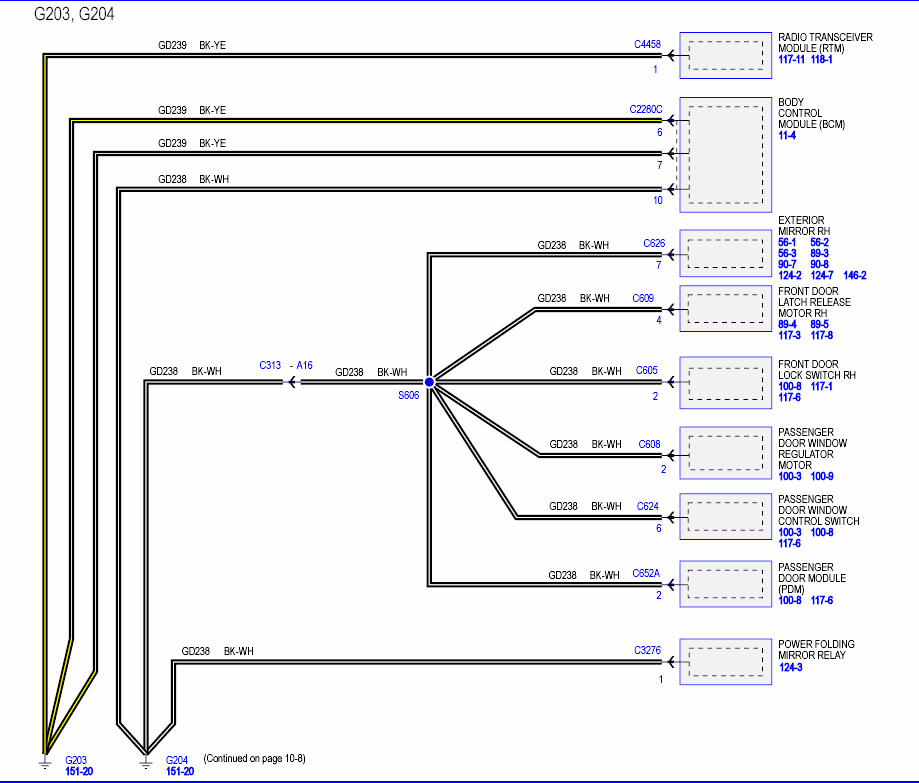

G00555395

Courtesy of

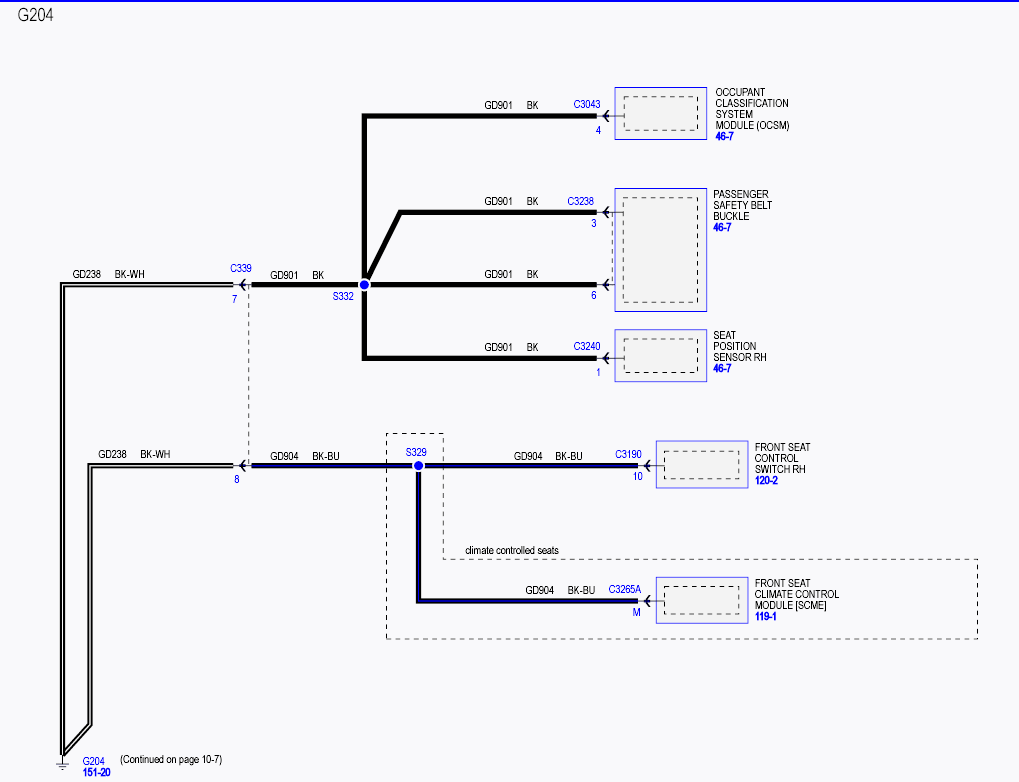

G00555396

Courtesy of

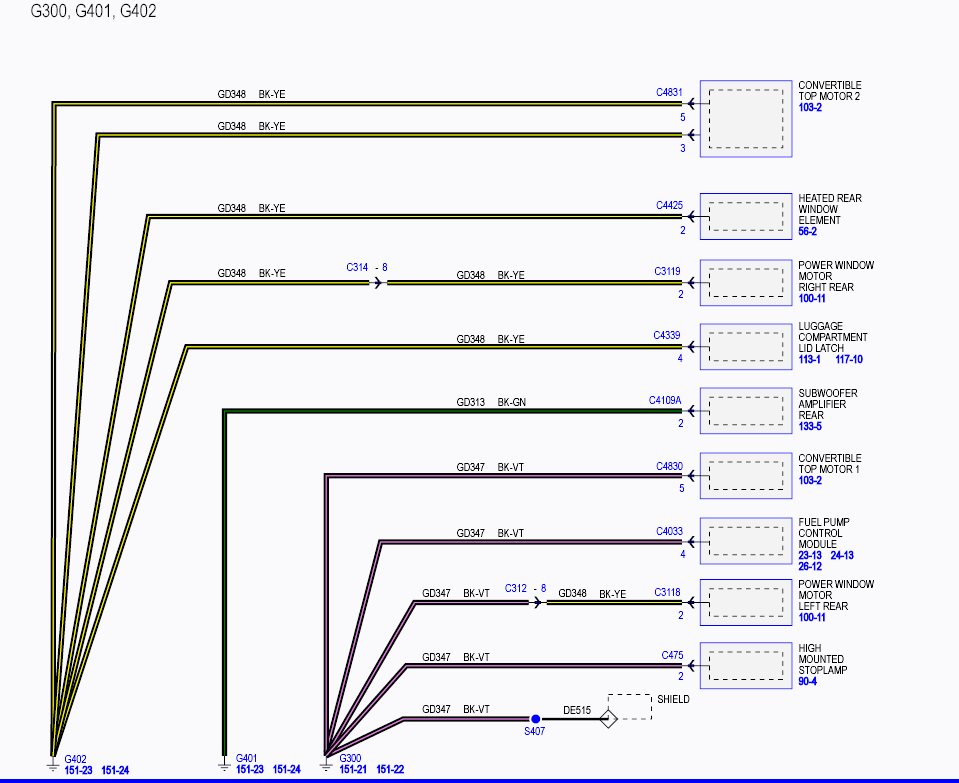

G00555397

Courtesy of

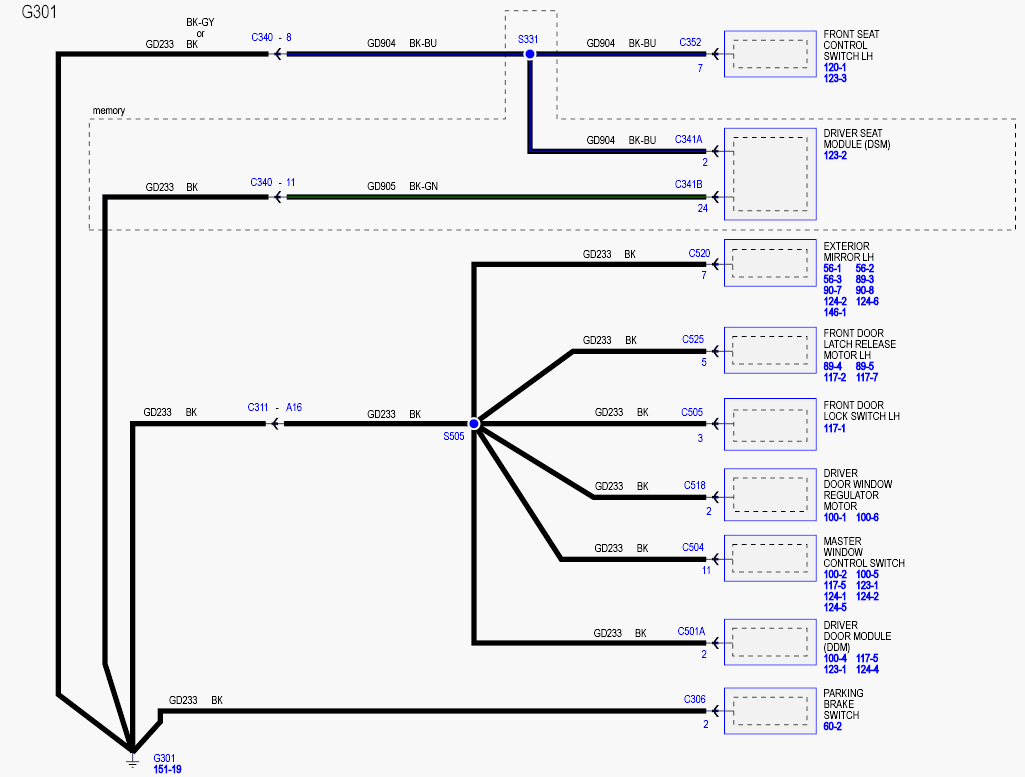

G00555398

Courtesy of

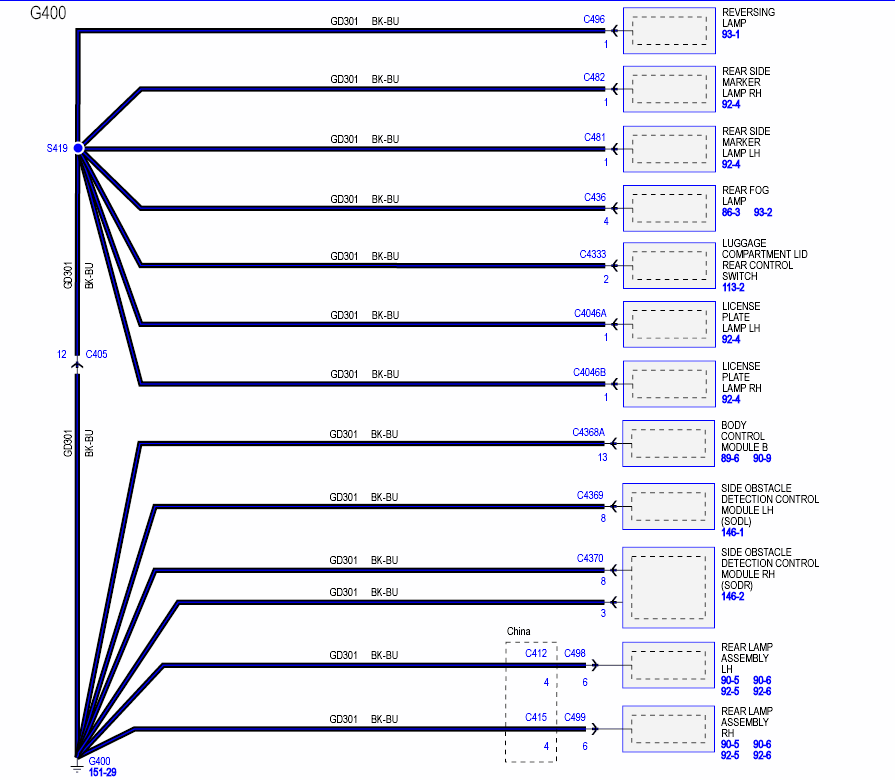

G00555399

Courtesy of
