Component Location Views

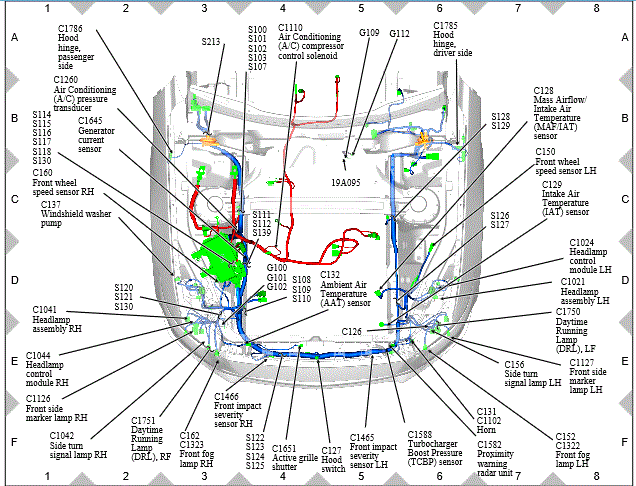

GFDW3024Courtesy of FORD MOTOR COMPANY

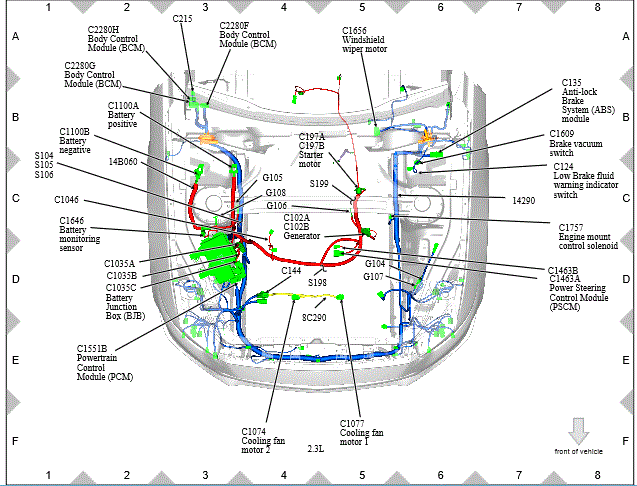

GFDW3025Courtesy of FORD MOTOR COMPANY
GFDW3026Courtesy of FORD MOTOR COMPANY

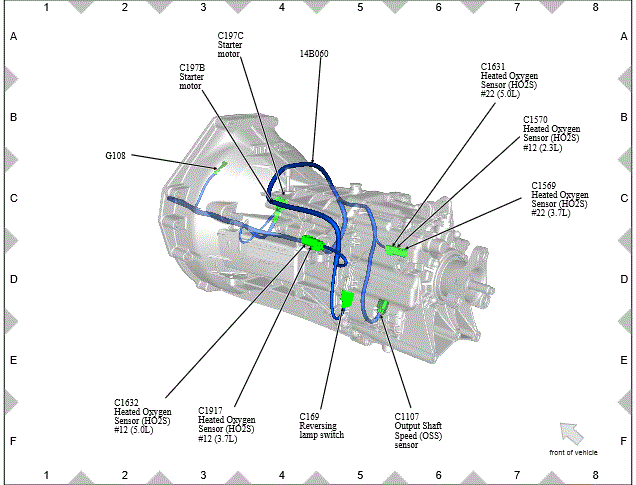

GFDW3027Courtesy of FORD MOTOR COMPANY

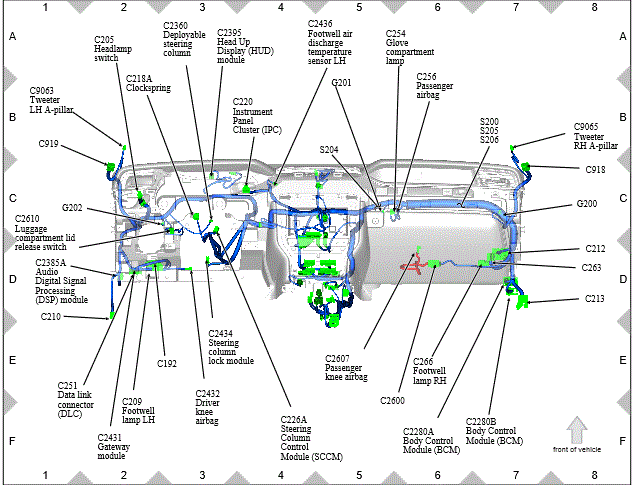

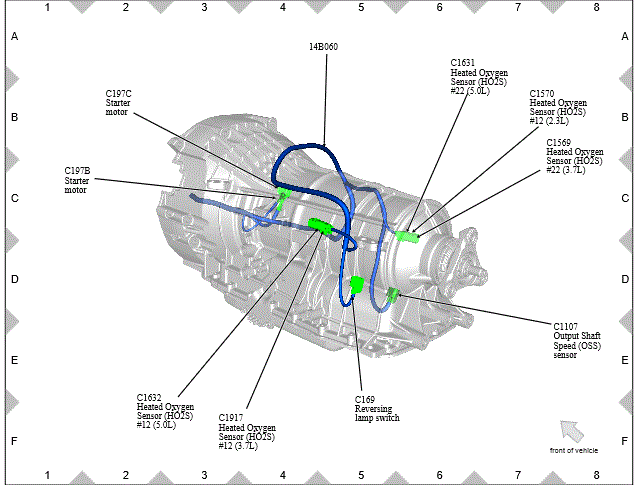

GFDW3028Courtesy of FORD MOTOR COMPANY

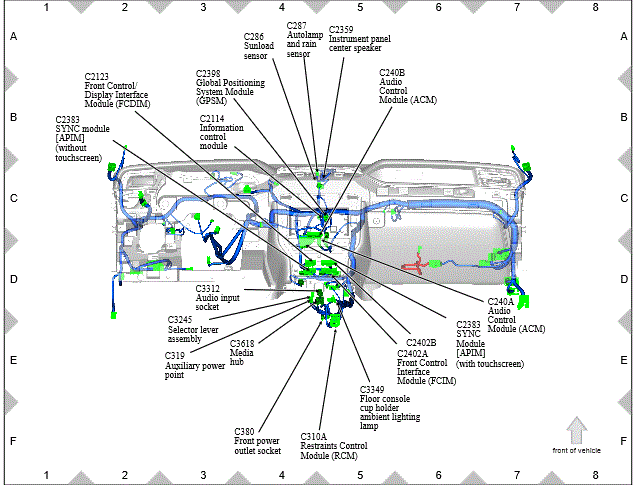

GFDW3029Courtesy of FORD MOTOR COMPANY

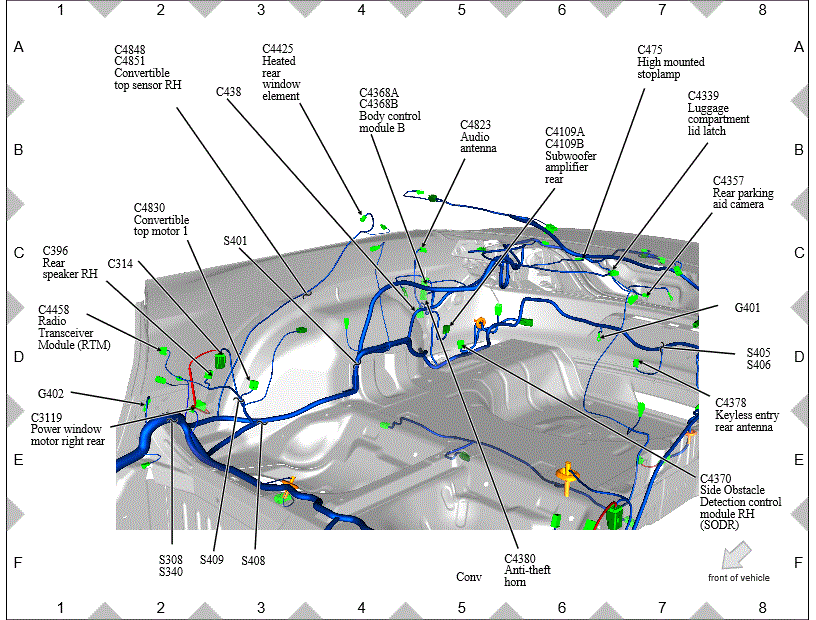

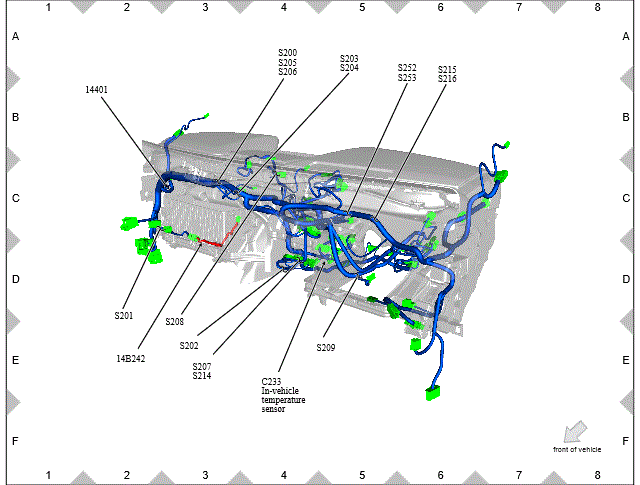

GFDW3030Courtesy of FORD MOTOR COMPANY

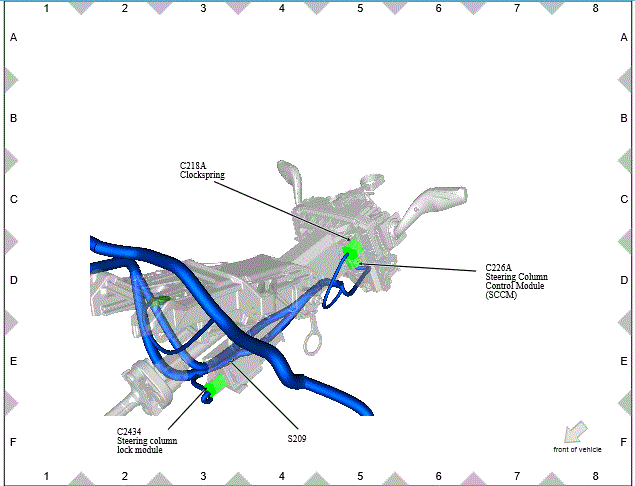

GFDW3031Courtesy of FORD MOTOR COMPANY

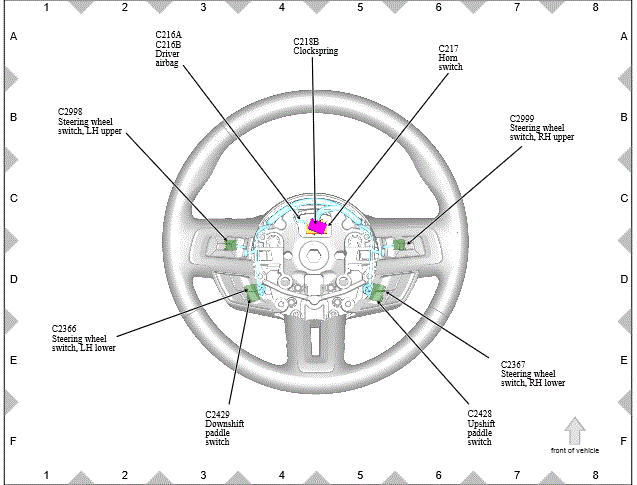

GFDW3032Courtesy of FORD MOTOR COMPANY

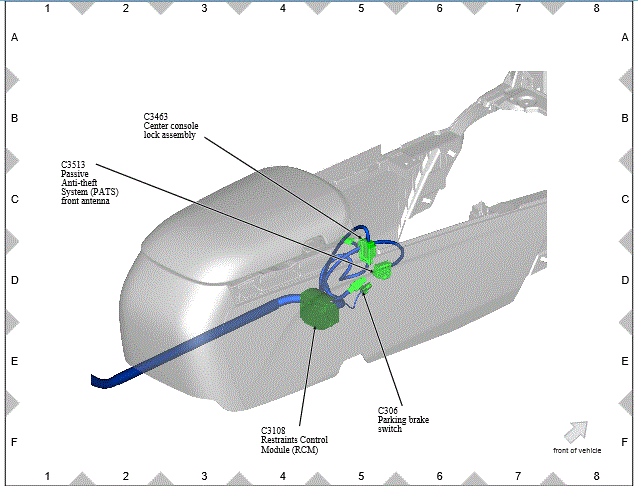

GFDW3033Courtesy of FORD MOTOR COMPANY

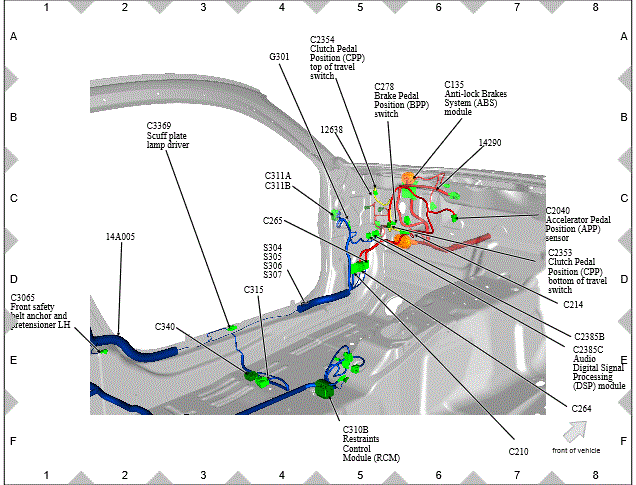

GFDW3034Courtesy of FORD MOTOR COMPANY

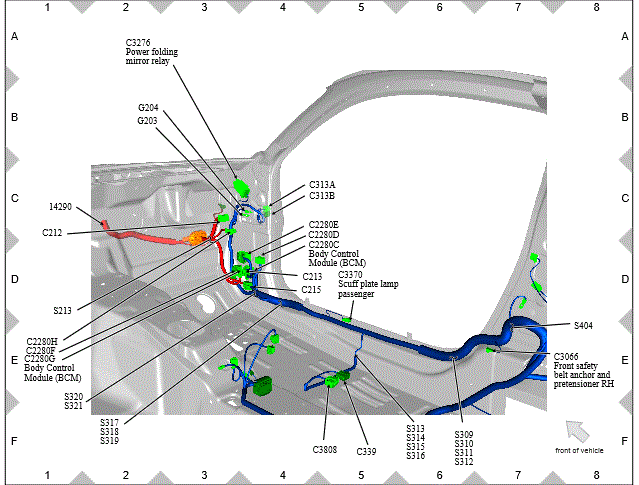

GFDW3035Courtesy of FORD MOTOR COMPANY

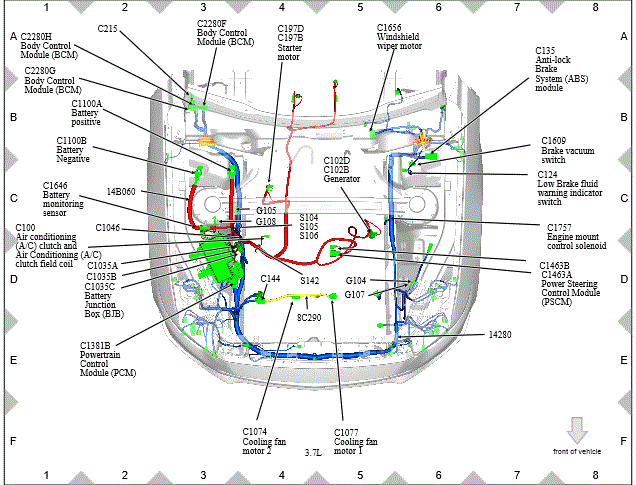

GFDW3036Courtesy of FORD MOTOR COMPANY

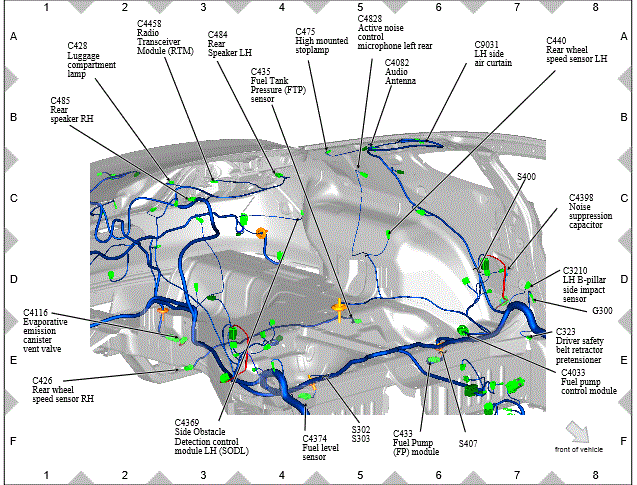

GFDW3037Courtesy of FORD MOTOR COMPANY

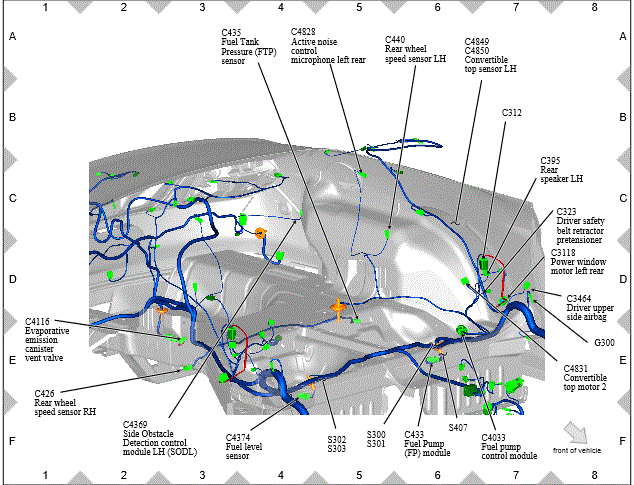

GFDW3038Courtesy of FORD MOTOR COMPANY

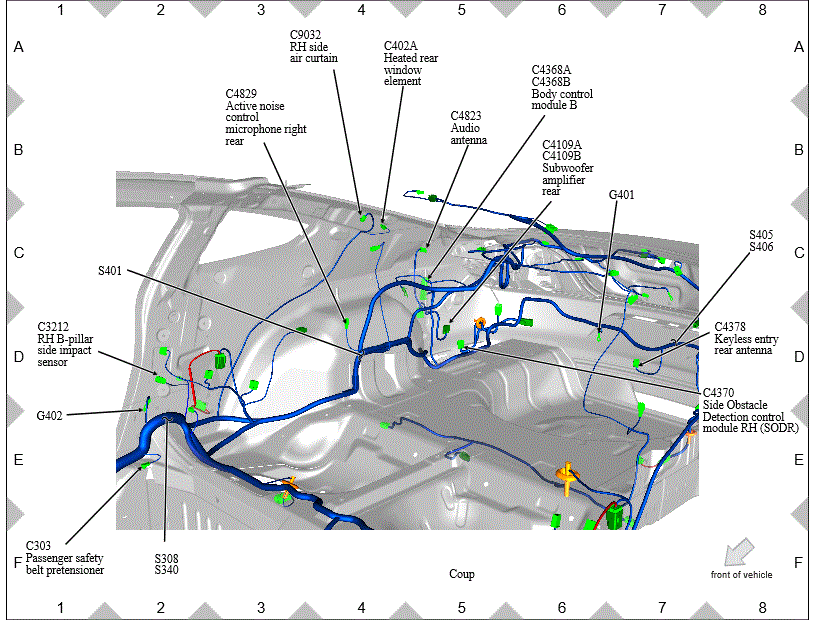

GFDW3039Courtesy of FORD MOTOR COMPANY
GFDW3040Courtesy of FORD MOTOR COMPANY

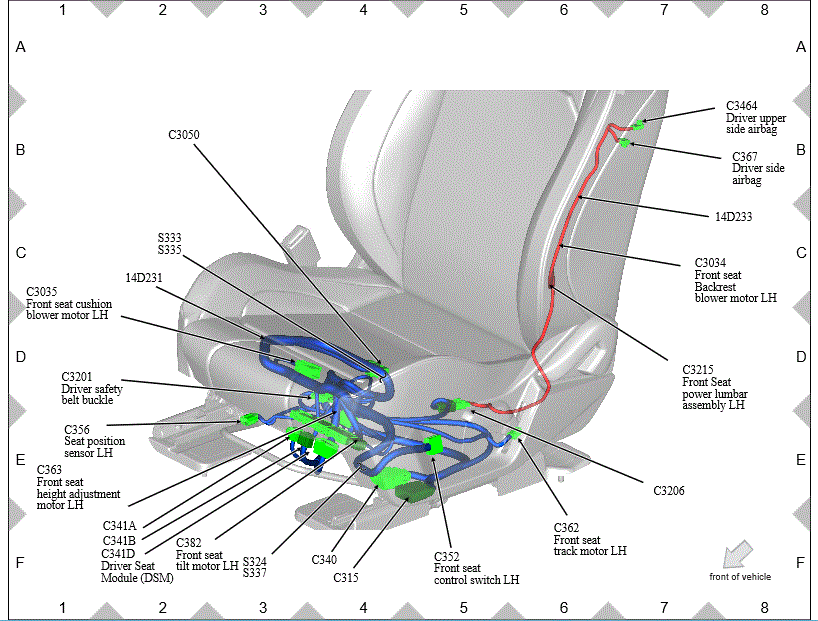

GFDW3041Courtesy of FORD MOTOR COMPANY

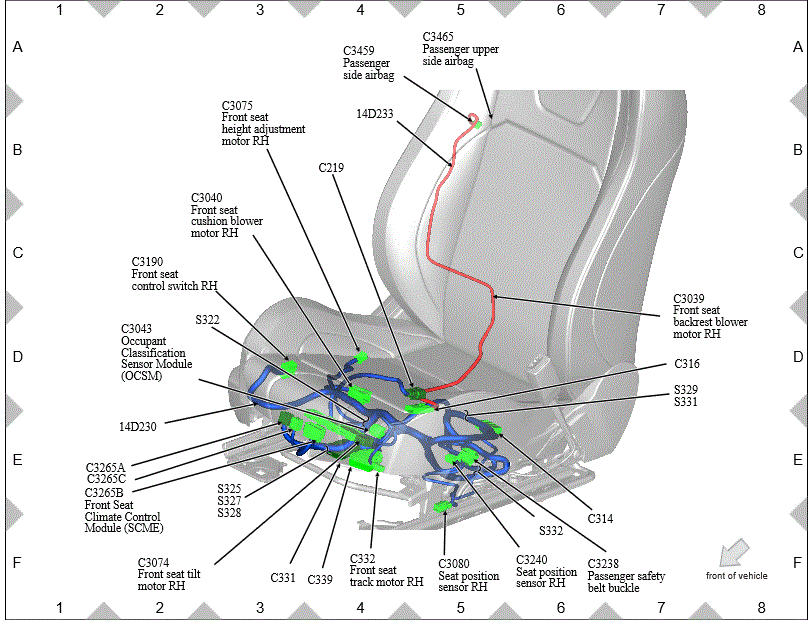

GFDW3042Courtesy of FORD MOTOR COMPANY
GFDW3043Courtesy of FORD MOTOR COMPANY

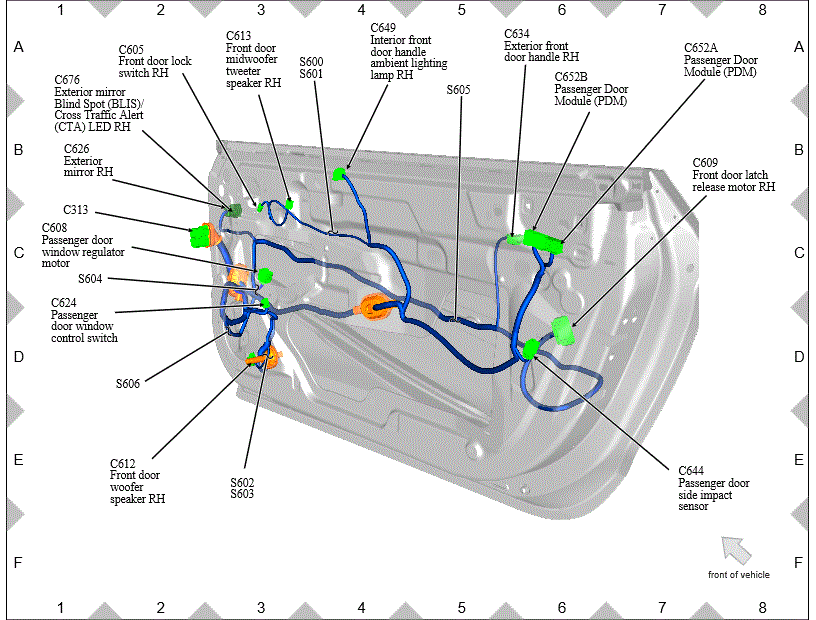

GFDW3044Courtesy of FORD MOTOR COMPANY

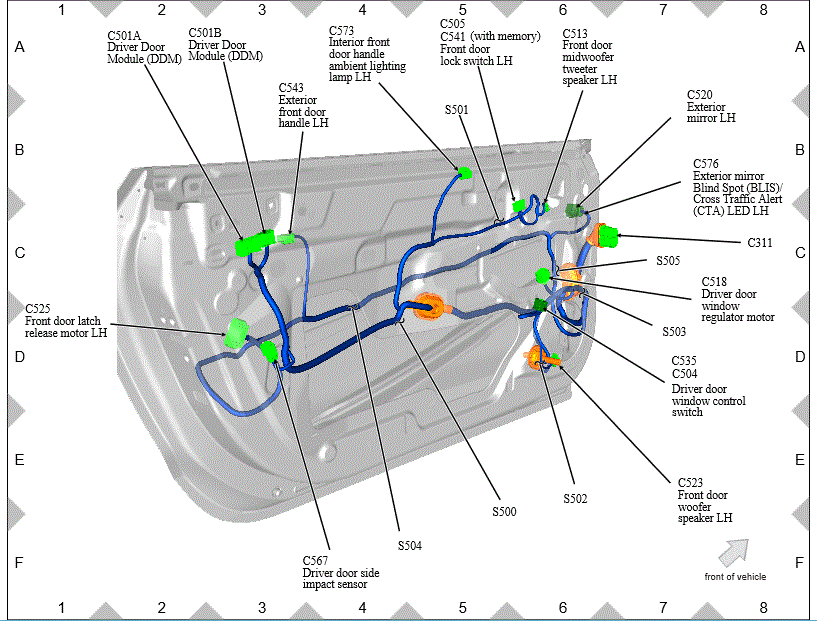

GFDW3045Courtesy of FORD MOTOR COMPANY

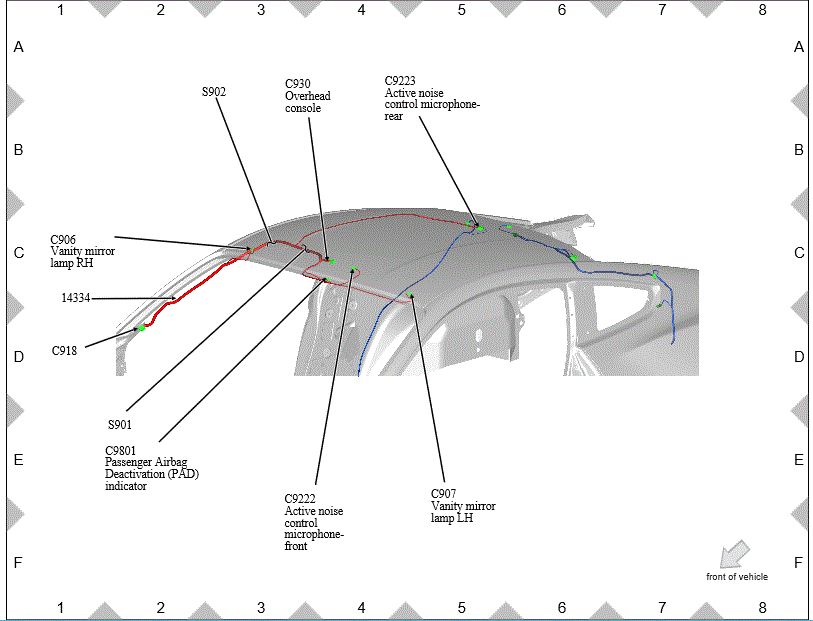

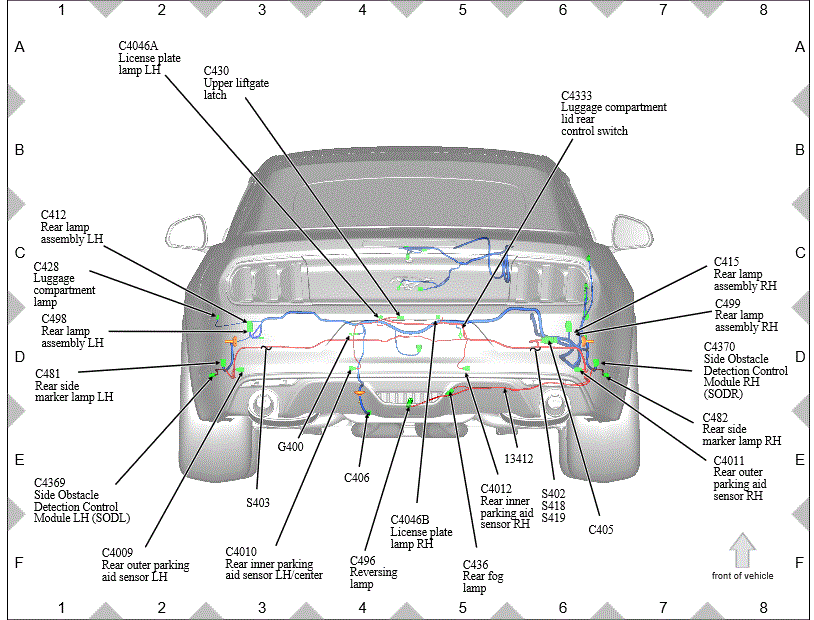

GFDW3046Courtesy of FORD MOTOR COMPANY

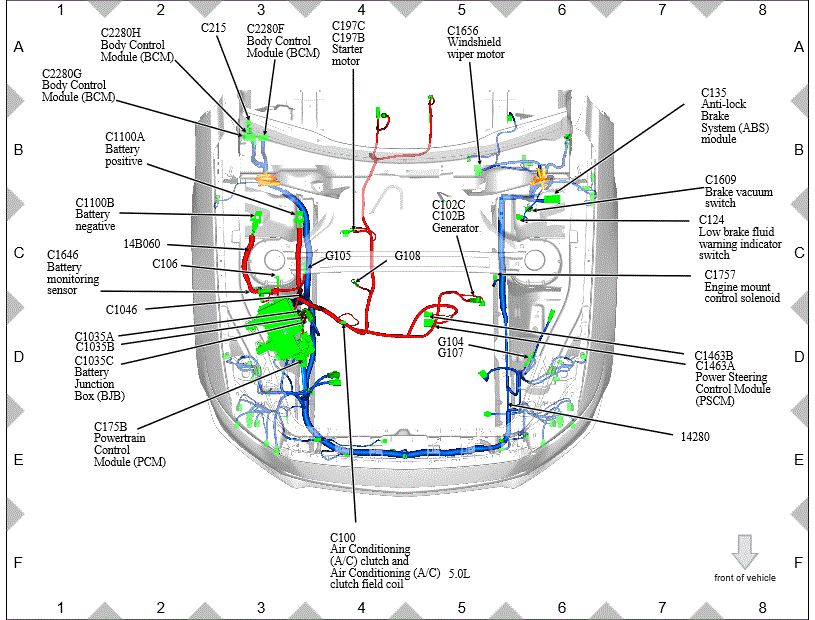

GFDW3047Courtesy of FORD MOTOR COMPANY
GFDW3048Courtesy of FORD MOTOR COMPANY
GFDW3049Courtesy of FORD MOTOR COMPANY

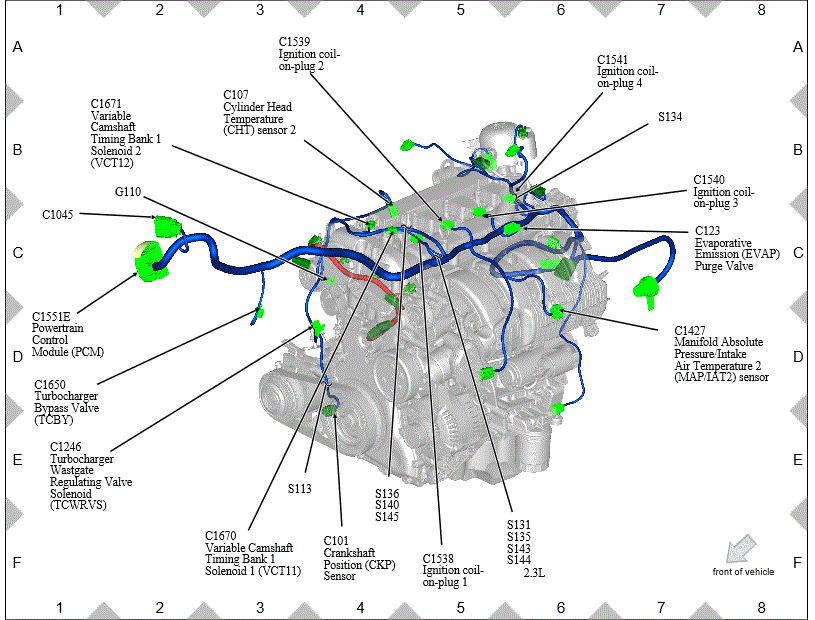

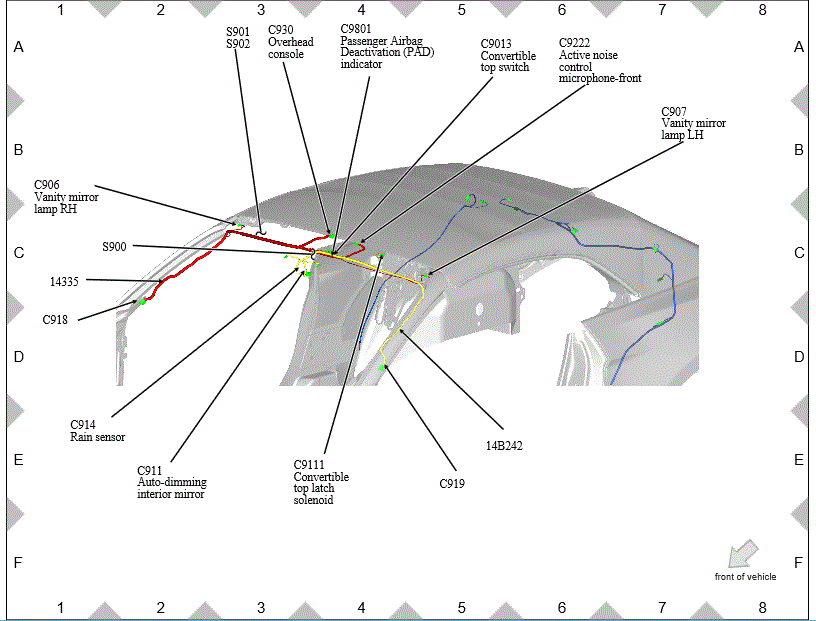

GFDW3050Courtesy of FORD MOTOR COMPANY

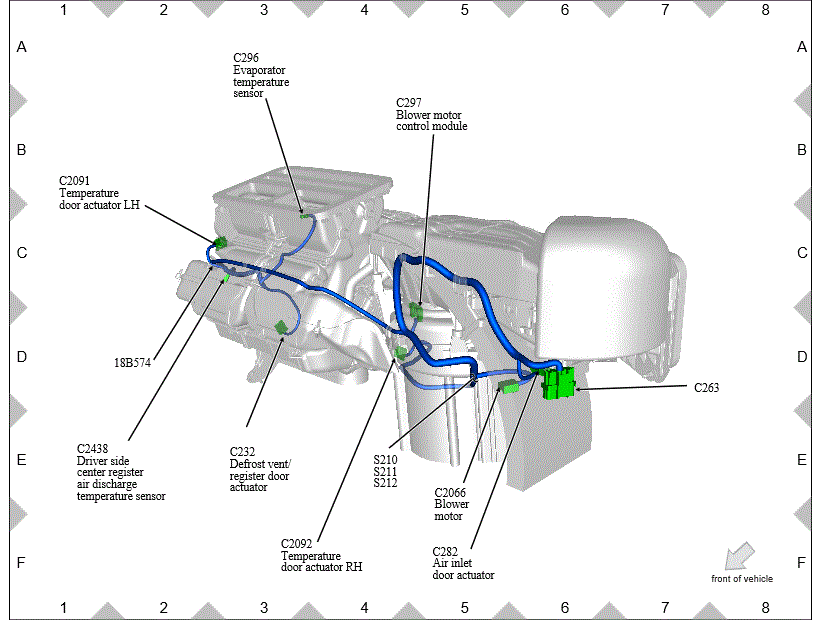

GFDW3051Courtesy of FORD MOTOR COMPANY

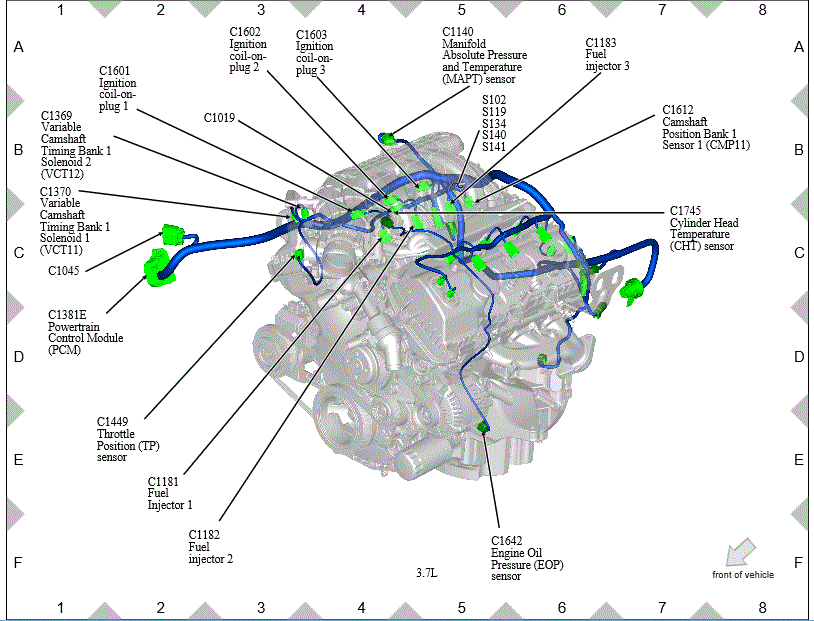

GFDW3052Courtesy of FORD MOTOR COMPANY

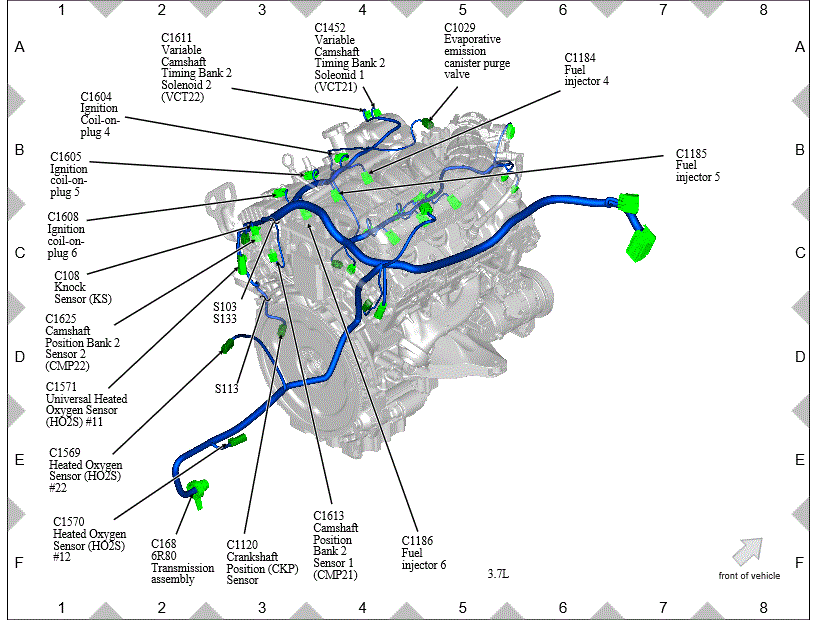

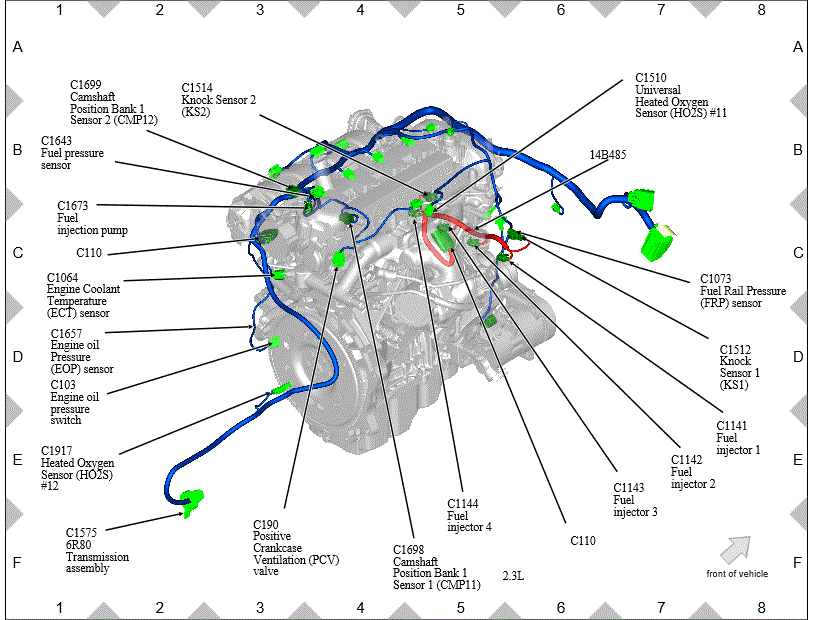

GFDW3053Courtesy of FORD MOTOR COMPANY

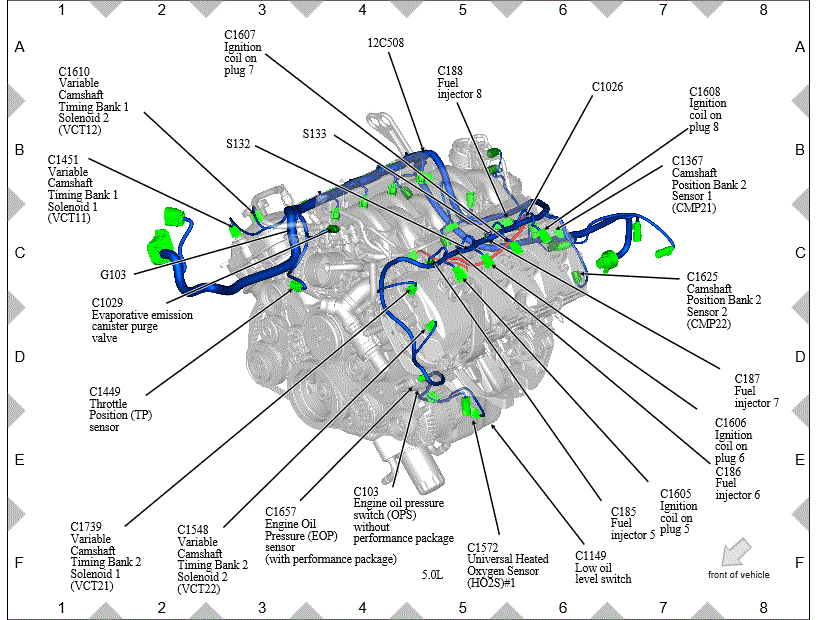

GFDW3054Courtesy of FORD MOTOR COMPANY

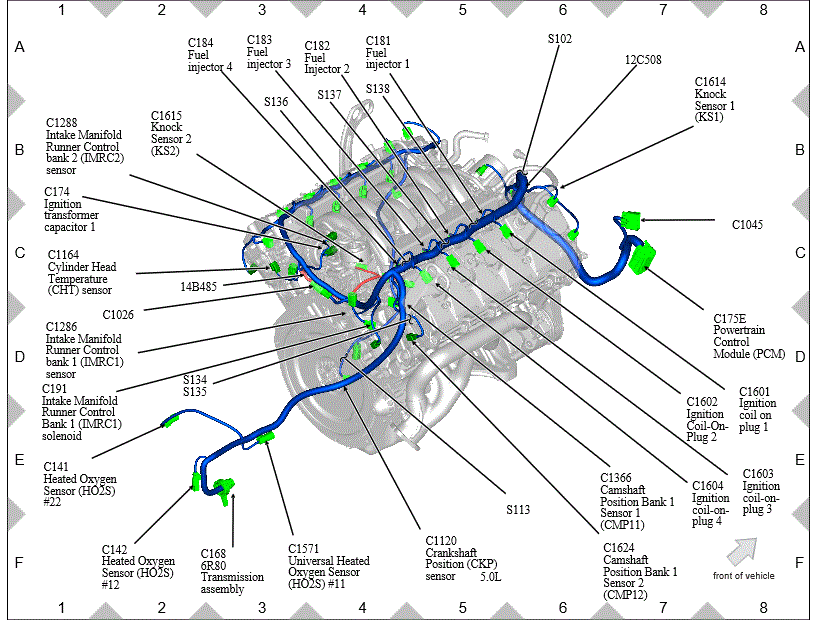

GFDW3055Courtesy of FORD MOTOR COMPANY
