Ignition Coil-On-Plug: Installation

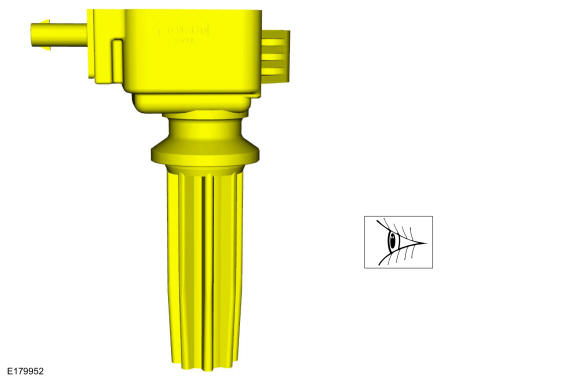

1.

Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.

GFD7680

Courtesy of FORD MOTOR COMPANY

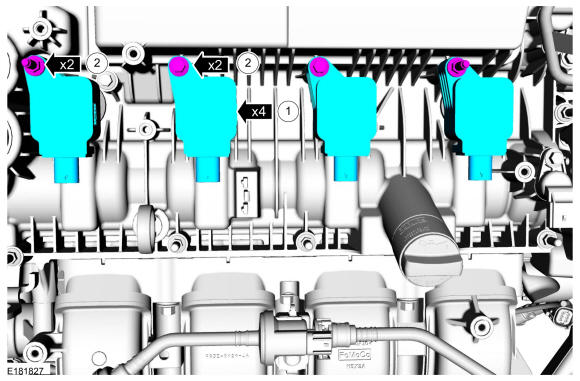

2.
- 1.

  Install the ignition coil-on-plugs.
- 2.

  Install the ignition coil-on-plug mounting bolts.
  Torque

  : 89 lb.in (10 Nm)

GFD7681

Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

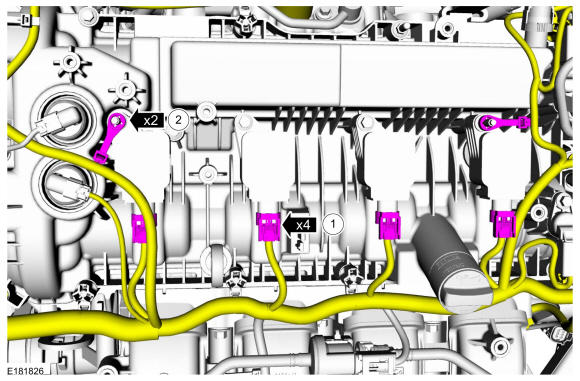

3.
- 1.

  Connect the ignition coil-on-plug the electrical connectors and press the locking tab.
- 2.

  Connect the wiring harness retainers.

GFD7682

Courtesy of FORD MOTOR COMPANY

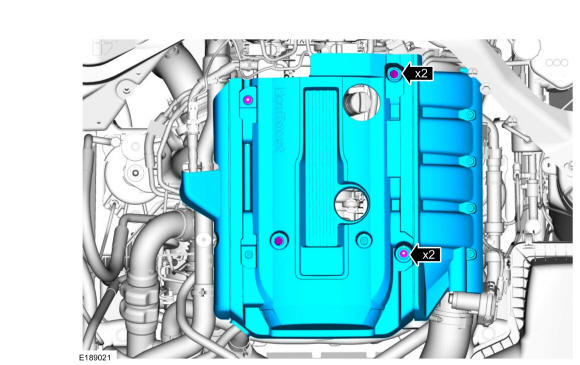

4.

Install the engine appearance cover, then install and tighten the engine appearance cover retaining nuts and bolts.
Torque

: 80 lb.in (9 Nm)

GFD7592

Courtesy of FORD MOTOR COMPANY
