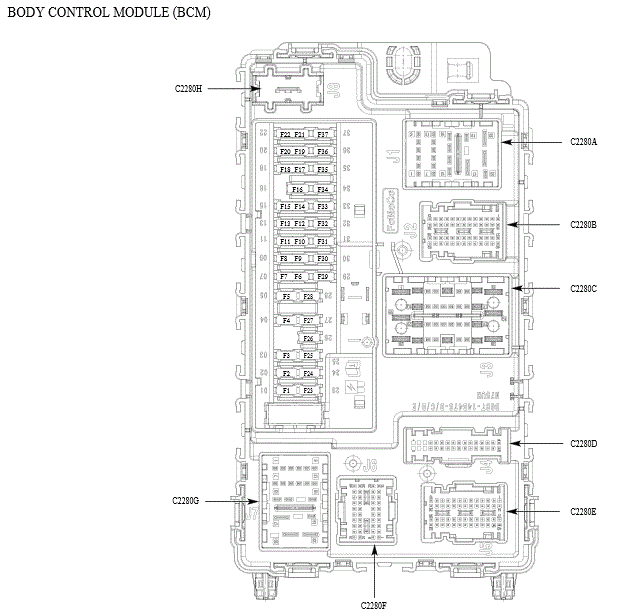

Body Control Module
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Battery saver relay, Center console lock assembly, Luggage compartment, Glove compartment lamp, Overhead console, Vanity mirror lamps |
| F2 | 7.5 | Power folding mirror relay, Driver Seat Module (DSM) |
| F3 | 20 | Driver unlock relay, Center console lock assembly, Front door latch motor LH |
| F4 | 5 | Not used |
| F5 | 20 | Subwoofer amplifier rear |
| F6 | 10 | Not used |
| F7 | 10 | Not used |
| F8 | 10 | Security horn relay, Anti-theft horn |
| F9 | 10 | Not used |
| F10 | 5 | Not used |
| F11 | 5 | Not used |
| F12 | 7.5 | Front Controls Interface Module (FCIM) |
| F13 | 7.5 | Gateway module, Instrument Panel Cluster (IPC), Steering Column Module (SCCM) |
| F14 | 10 | Not used |
| F15 | 10 | Gateway module |
| F16 | 15 | Luggage relay, Luggage compartment lid latch |
| F17 | 5 | Not used |
| F18 | 5 | Overhead console |
| F19 | 7.5 | Passenger Airbag Deactivation (PAD) indicator |
| F20 | 7.5 | Not used |
| F21 | 5 | In-vehicle temperature sensor |
| F22 | 5 | Occupant Classification System Module (OCSM) |
| F23 | 10 | Power window motors (Rear), Passenger door window regulator motor, Front door lock switch RH, Passenger door window control switch, Master window control switch, Driver door window regulator switch, Front door lock switch LH, Auto-dimming interior mirror. |
| F24 | 20 | Central lock and unlock relays, Front door latch release motor RH, Front doors latch release motors |
| F25 | 30 | Not used |
| F26 | 30 | Passenger Door Module (PDM), Passenger door window regulator motor |
| F27 | 30 | Audio Digital Signal Processing (DSP) module |
| F28 | 20 | Body control module B |
| F29 | 30 | Power window motor left rear |
| F30 | 30 | Power window motor right rear |
| F31 | 15 | Not used |
| F32 | 10 | Global Positioning System Module (GPSM), Accessory Protocol Interface Module (APIM), Front Control Display Interface Module (FCDIM), Information control module, Radio Transceiver Module (RTM) |
| F33 | 20 | Audio Control Module (ACM) |
| F34 | 30 | Run start relay, BCM F19, F20, F21, F22, F35, F36, F37 |
| F35 | 5 | Restraints Control Module (RCM) |
| F36 | 15 | Body control module B |
| F37 | 15 | Battery Junction Box (BJB) F60, F62, F64, F66, F68 |
