Power Point: Removal
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Power point cover may differ depending on location.
- 1.

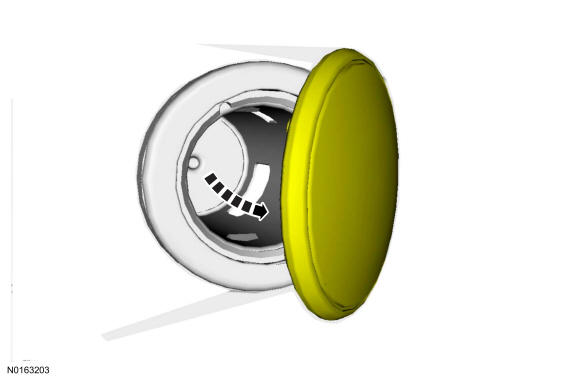

Open the power point cover.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

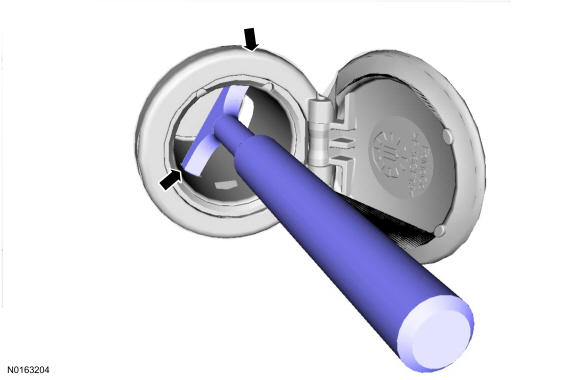

Position the Power Point Socket Remover so that it engages in the adjacent slot.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

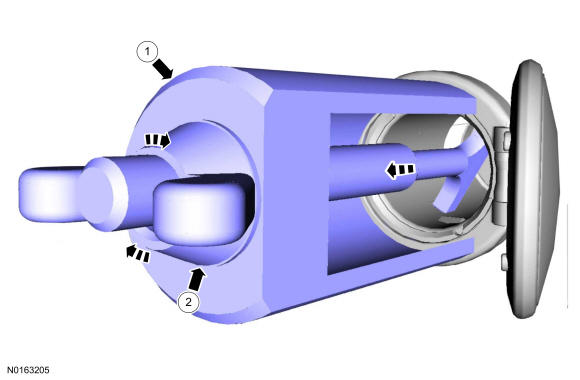

- 1.
Install the receiver cup.
- 2.
Install and tighten the wing nut.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

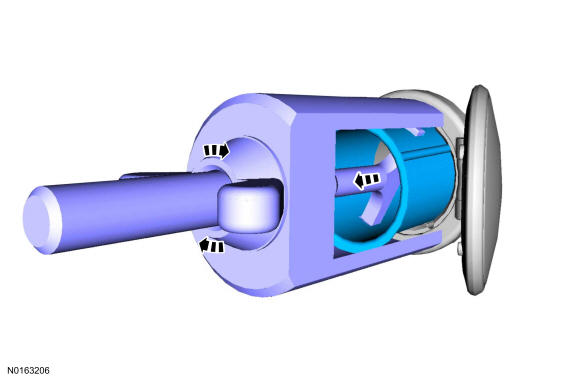

Tighten the wing nut to pull the power point socket out of the retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

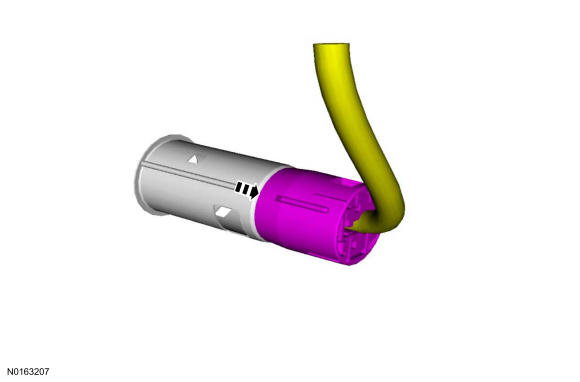

Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
