Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

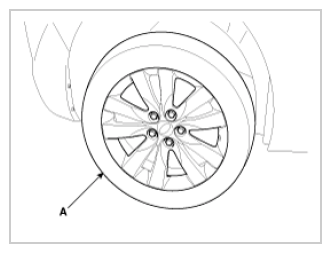

Fig 1: Identifying Front Wheel And Tire From Front Hub
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
Loosen the nut and then remove the lower arm (A).
Tightening torque:

78.5 ~ 88.3 N.m (8.0 ~ 9.0 kgf.m, 57.9 ~ 65.1 lb-ft)

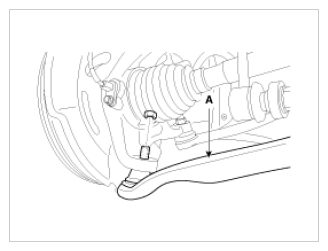

Fig 2: Identifying Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolts and nuts and then remove the front lower arm (A).
Tightening torque

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

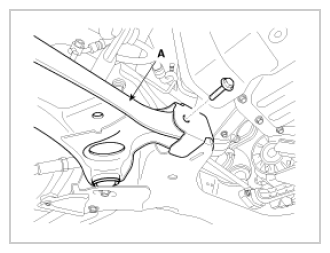

Fig 3: Identifying Front Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA

Tightening torque

156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

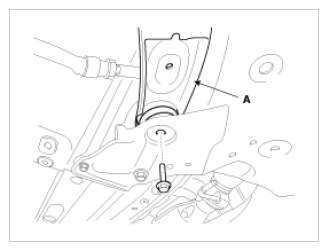

Fig 4: Identifying Front Lower Arm With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
