Repair procedures: Removal

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt.
    1. Loosen the alternator mounting bolts (A).
    2. Loosen the tension by turning the tension adjusting bolt (B) counterclockwise.
    3. Remove the drive belt (C).

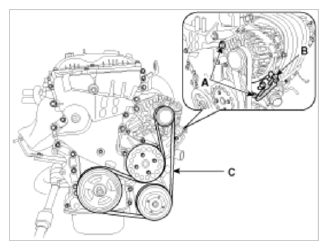

      Fig 1: Engine Drive Belt Routing
      G09885391Courtesy of HYUNDAI MOTOR AMERICA
