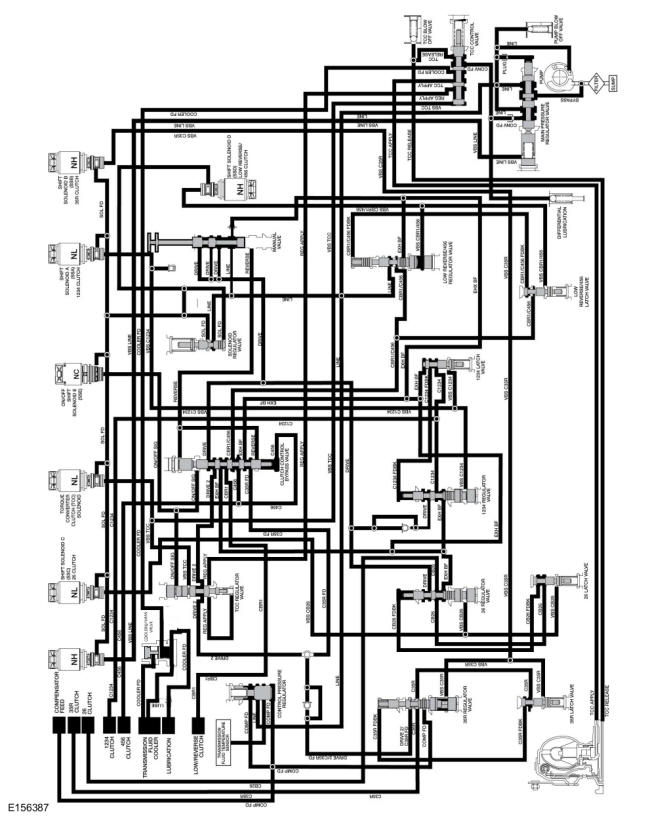

Home >> Ford >> 2015 >> Fusion S >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Automatic Transmission - 6-Speed 6F35 - Specifications, Description And Operation >> Description And Operation >> Transmission Description - System Operation and Component Description >> Component Description >> System Diagram
