Front Lower Arm: Installation

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

1.

Only tighten the bolts finger tight at this stage.
- 1.

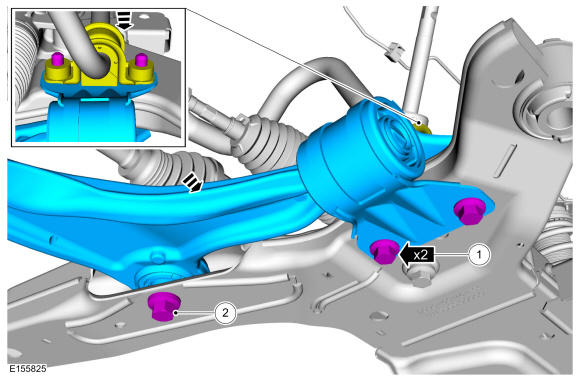

  Install the new lower arm rearward bolts.
- 2.

  Install the new lower arm forward bolt.

Courtesy of FORD MOTOR COMPANY

2.

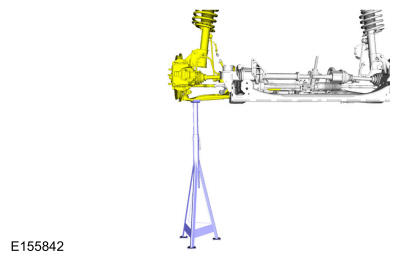

Raise the suspension to curb height.
Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
- 1.

  Tighten the new lower arm rearward bolts.
  Torque: 122 lb.ft (165 Nm)
- 2.

  Tighten the new lower arm forward bolt.
  Torque: 240 lb.ft (325 Nm)

Courtesy of FORD MOTOR COMPANY

4.

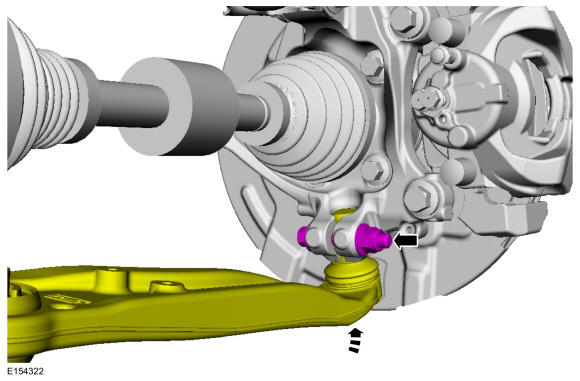

Position the ball joint into the wheel knuckle and install the new ball joint pinch bolt and nut.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

5.

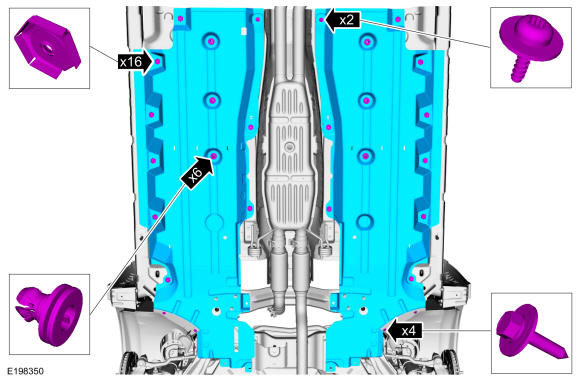

If equipped. Install the floor pan under body shields and the retainers.

Courtesy of FORD MOTOR COMPANY

6.

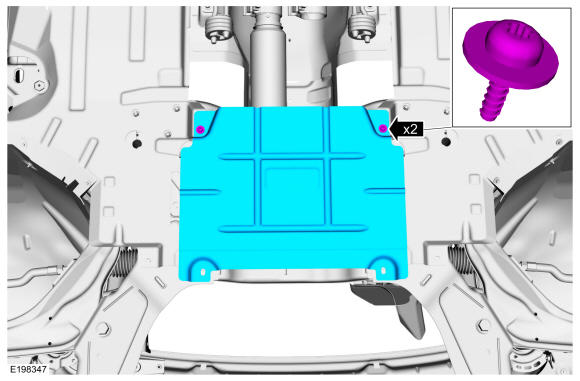

If equipped. Install the center under body shield and the retainers.

Courtesy of FORD MOTOR COMPANY

7.

If equipped. Install the dual under body shields and the retainers.

Courtesy of FORD MOTOR COMPANY

8.

If equipped. Install the under body shield and the retainers.

Courtesy of FORD MOTOR COMPANY

9.

Install the wheels and tires. Refer to: Wheel and Tire .

10.

Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
