Power Transfer Unit Fluid Level Check
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
Activation
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 4.

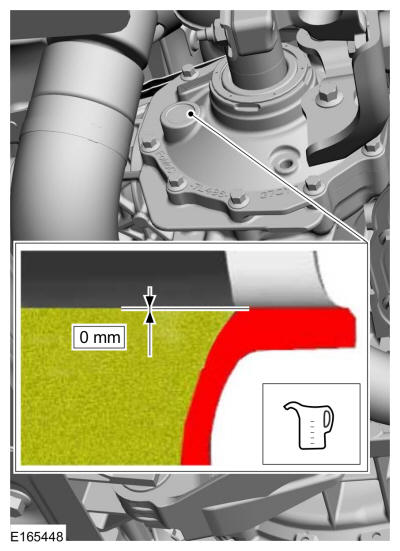

Fill the PTU with clean fluid, level with the fill plug opening.Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
