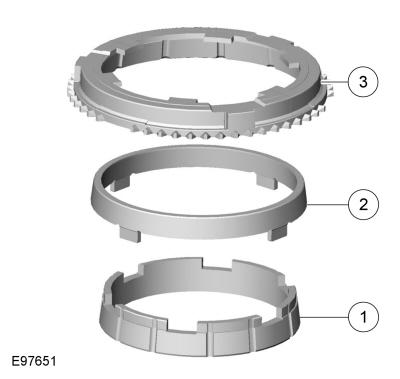

Synchronizer rings for 3rd/4th gear double synchronization

GFD63039Courtesy of FORD MOTOR COMPANY
Item Description
1 Inner synchronizer ring with friction material on the outside
2 Synchronizer cone
3 Outer synchronizer ring with friction material on the inside
