Window Control Switch (W/o Door Modules)

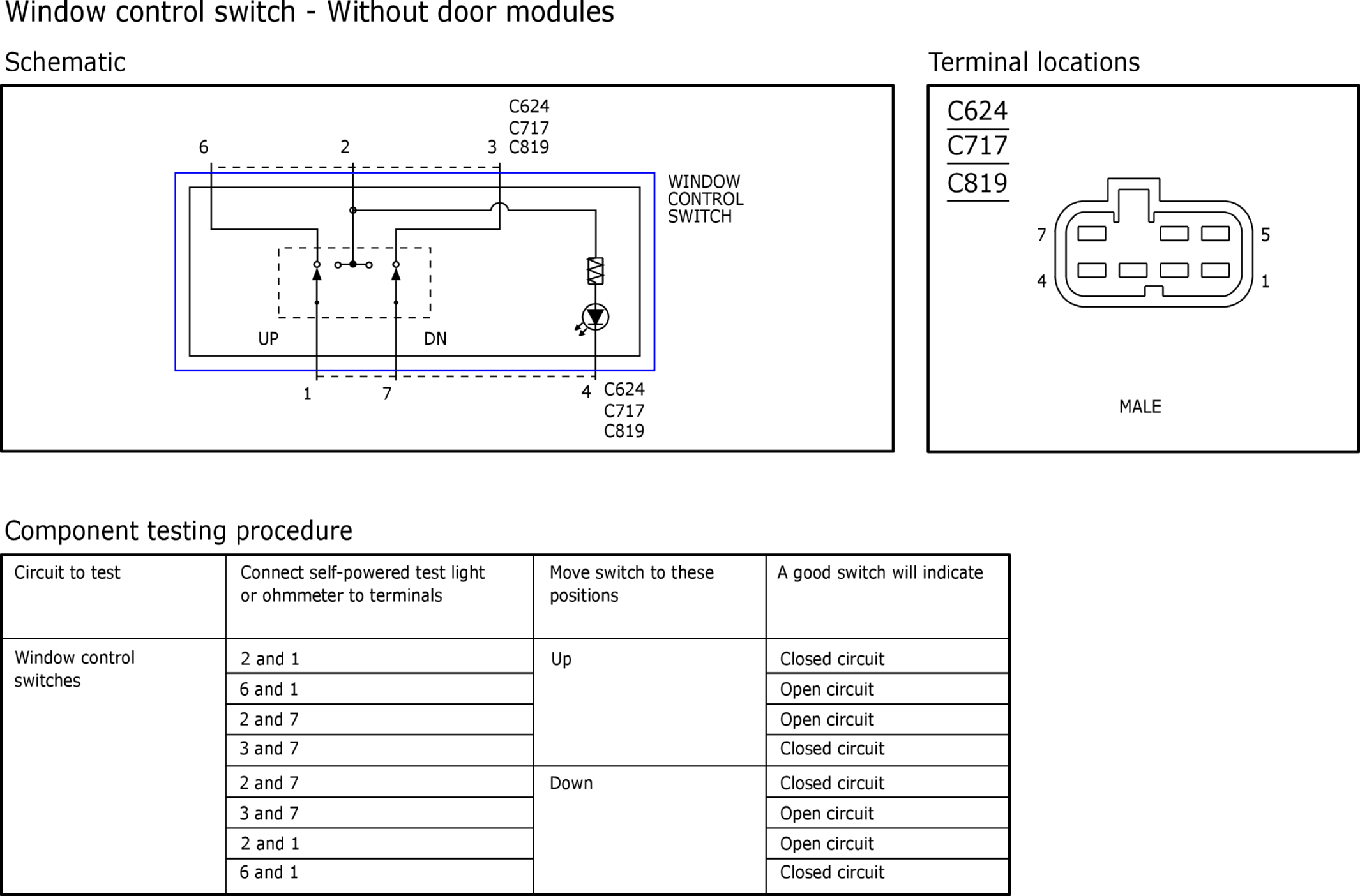

Fig 1: Window Control Switch (W/o Door Modules)

GFDW22866

Courtesy of FORD MOTOR COMPANY
