Removal And Installation

NOTE: Removal steps in this procedure may contain installation details.

1.

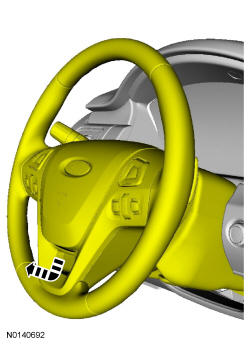

GFD56452

Courtesy of FORD MOTOR COMPANY

2.
1. 1.

  To install, tighten to 3 Nm (27 lb-in).
1. 2.

  -
1. 3.

  If equipped with an in-vehicle temperature and humidity sensor.

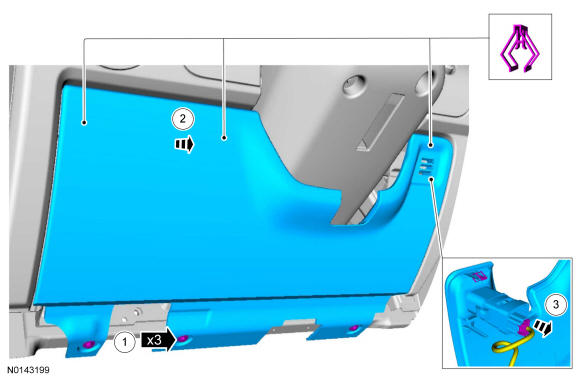

GFD56453

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

  To install, tighten to 3 Nm (27 lb-in).
1. 2.

  -

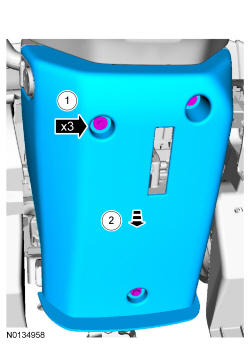

GFD56454

Courtesy of FORD MOTOR COMPANY

4.

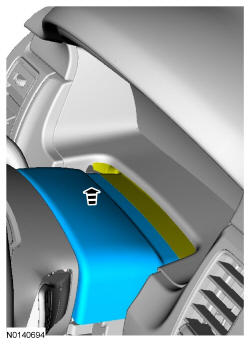

GFD56455

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.
