Safety Belt Retractor Third Row: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

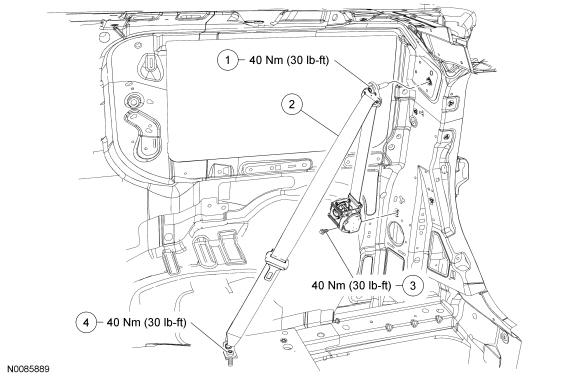

Safety Belt Retractor - Third Row
NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Third row safety belt D-ring bolt (part of 612C16) |
| 2 | 612C16 | Third row safety belt retractor |
| 3 | N807750 | Third row safety belt retractor bolt |
| 4 | - | Third row safety belt anchor bolt (part of 612C16) |
