WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

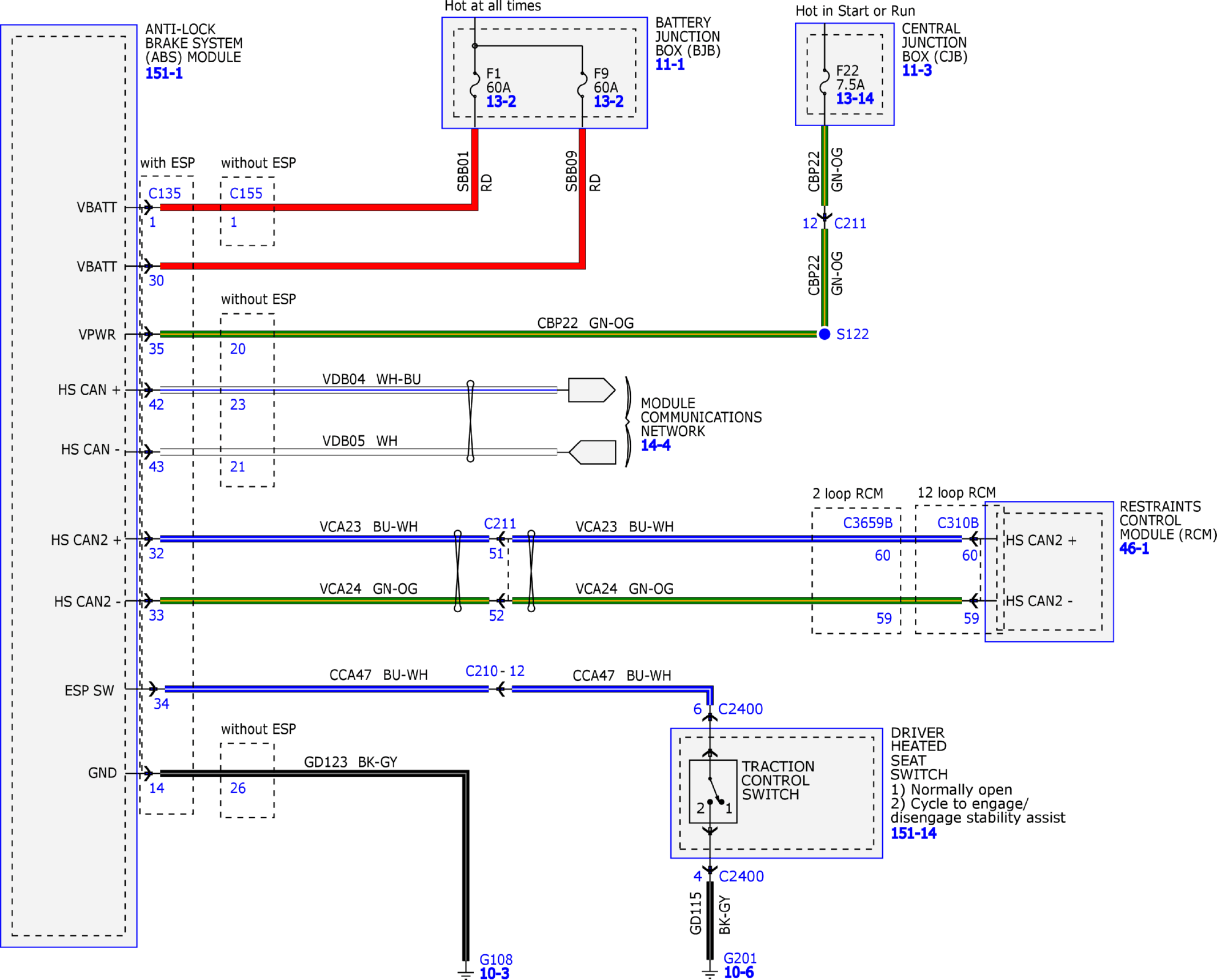

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

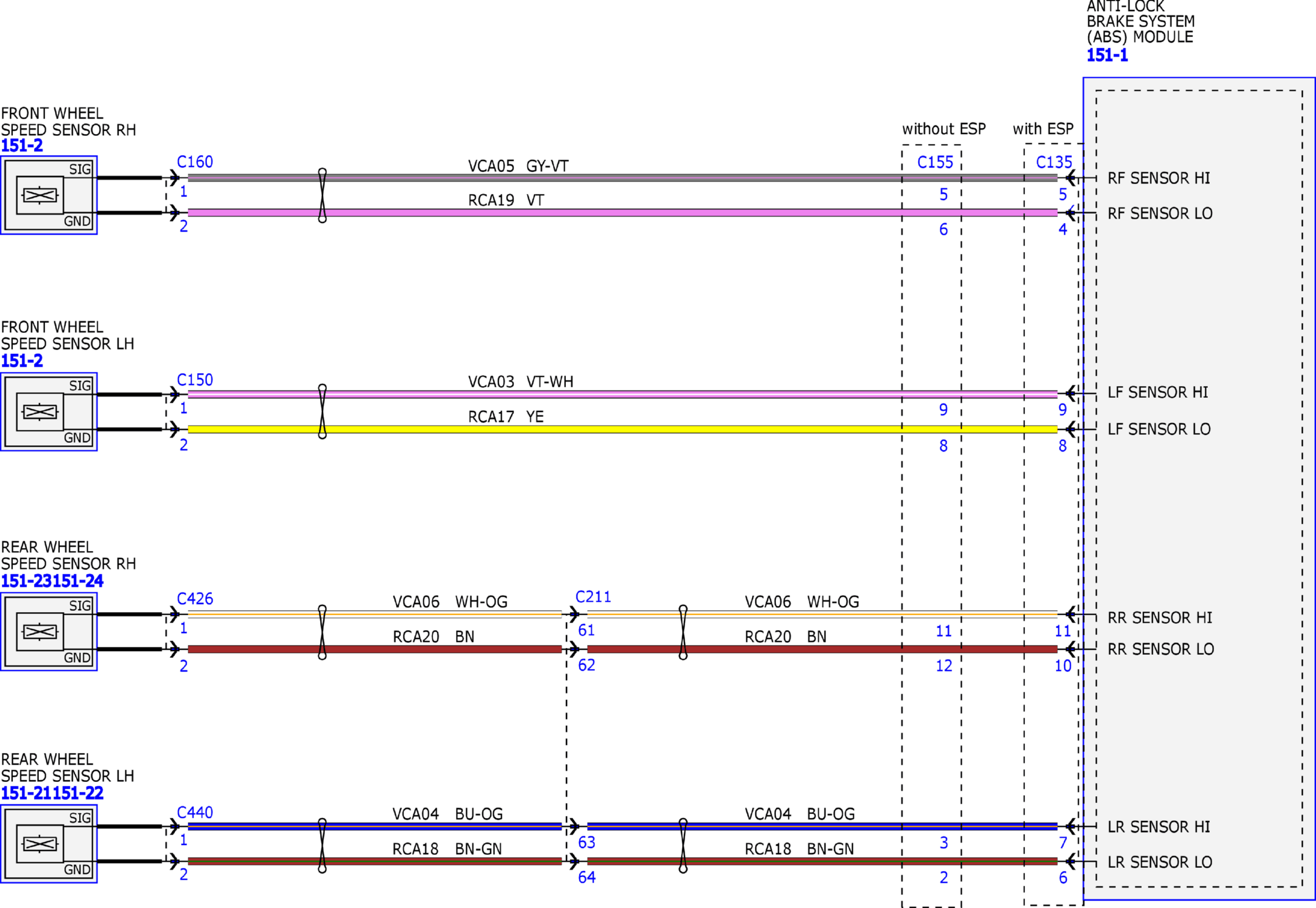

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY
Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY
Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 Of 4)
