Power Steering Controls System
Power Steering Controls System
WARNING:
This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

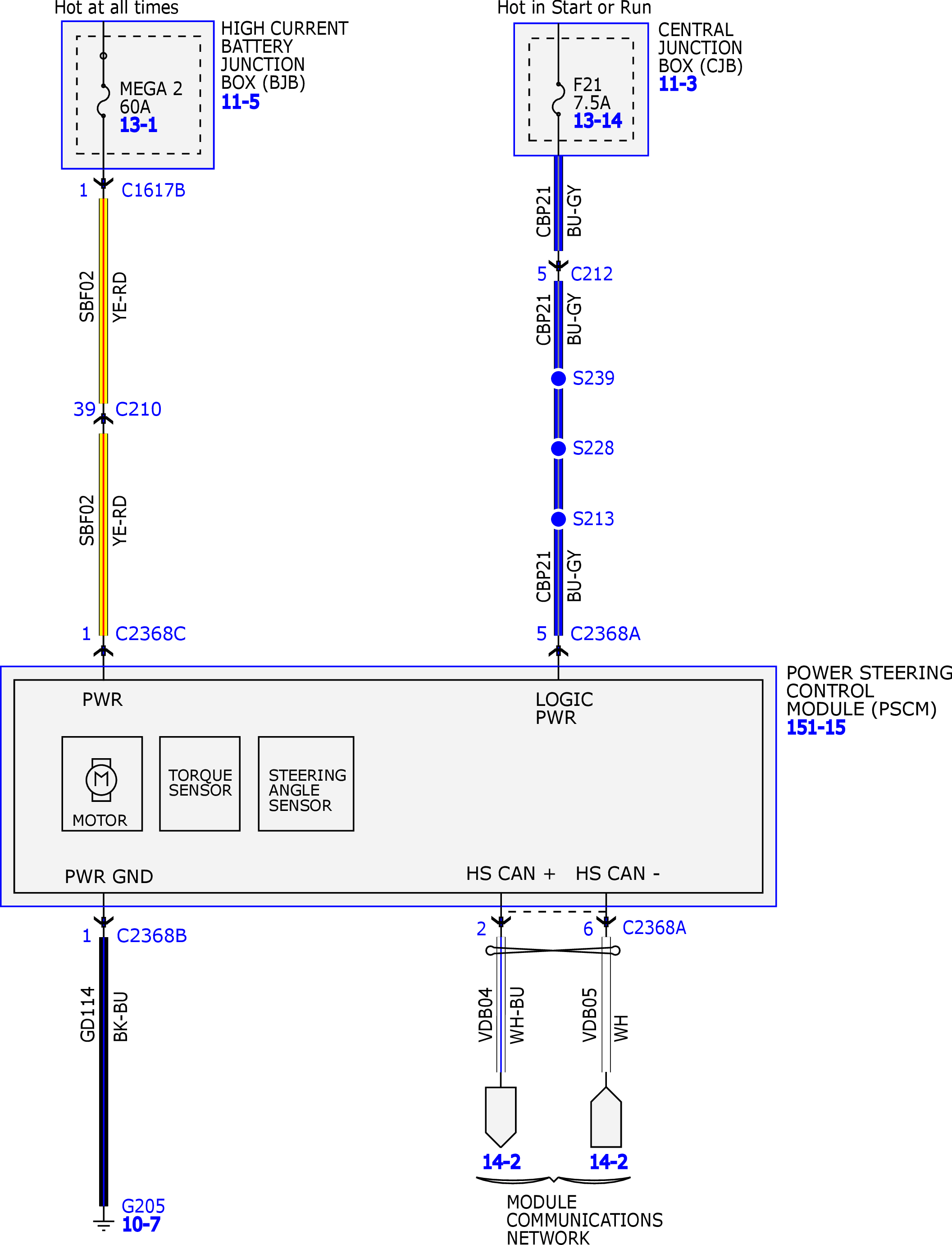

Fig 1: Power Steering Controls System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
