Section 1848 (OEM Wiring Diagrams)
>>
Heated Window
Heated Window
WARNING:
This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

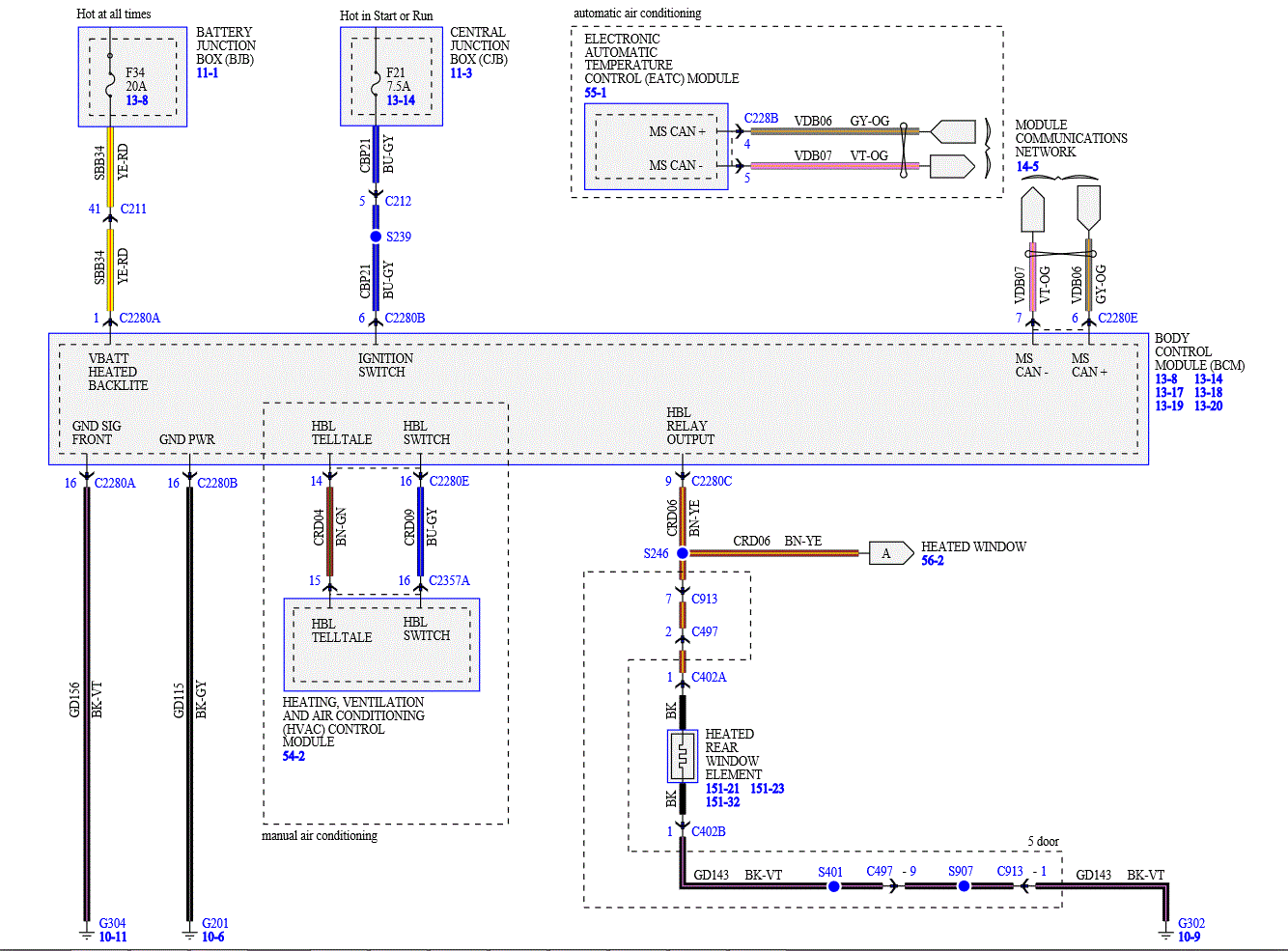

Fig 1: Heated Window Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

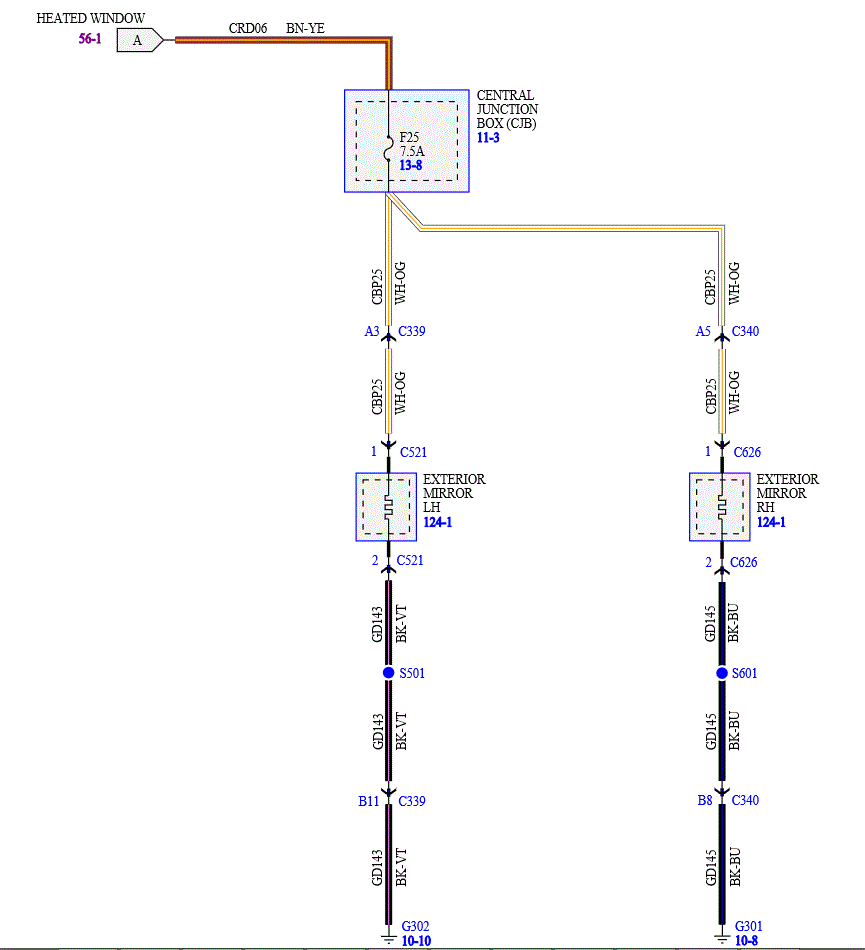

Fig 2: Heated Window Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
