Block Heater: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .
NOTE: 3.5L Ti-VCT shown, 3.5L GTDI similar.

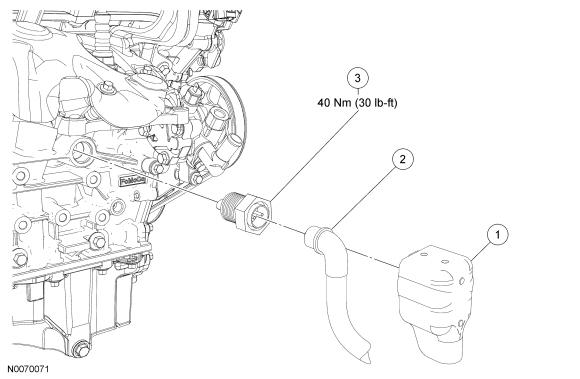

Fig 1: Block Heater With Torque Specifications
GFD57388Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 030104 Block heater cover
2 6B018 Block heater electrical connector
3 6A051 Block heater
