Front Door Window Control Switch: Removal

Driver's door

• 1.

  Remove the front door trim panel. REFER to: Front Door Trim Panel

• 2.

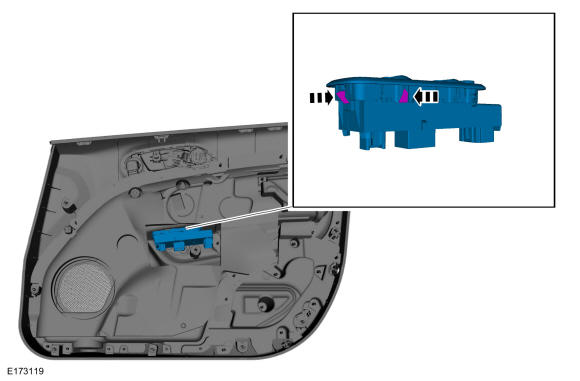

  Release the window control switch retaining tabs and remove the master window control switch from the door trim panel.

Courtesy of FORD MOTOR COMPANY

Passenger Door

• 3.

  Remove the front door window control switch.

  • 1.

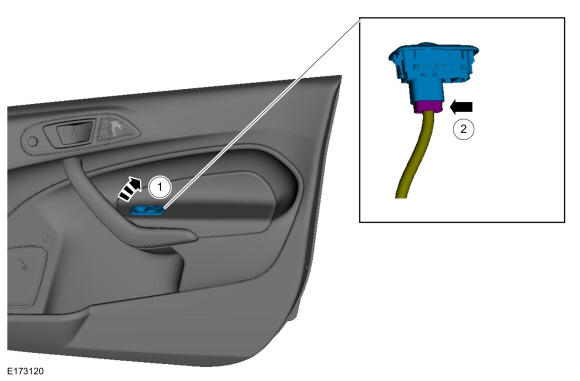

    Remove the front door window control switch from the door trim panel.

  • 2.

    Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
