Wiper/Washer Switch
Wiper/Washer Switch

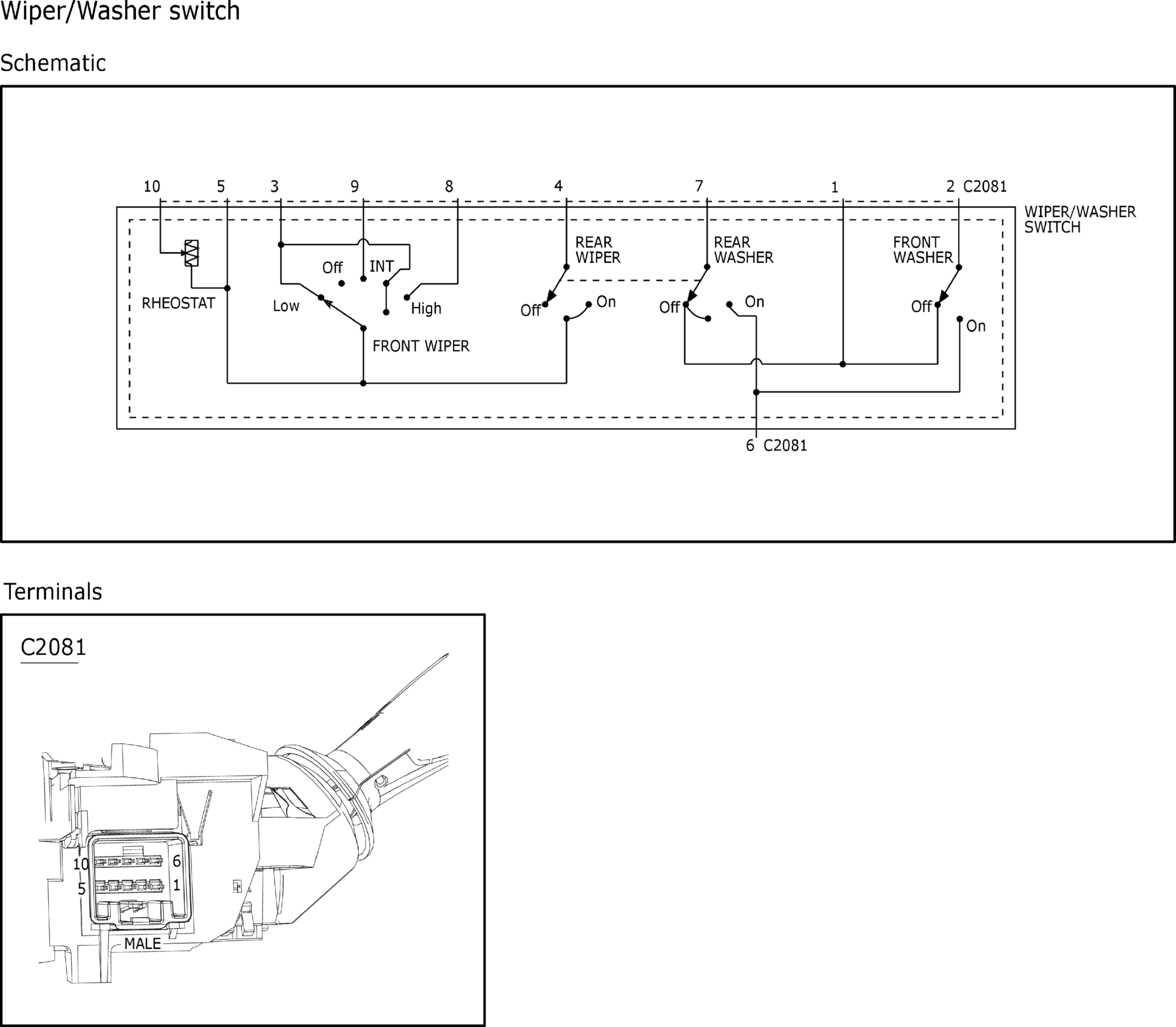

Fig 1: Wiper/Washer Switch (1 Of 2)
Courtesy of FORD MOTOR COMPANY

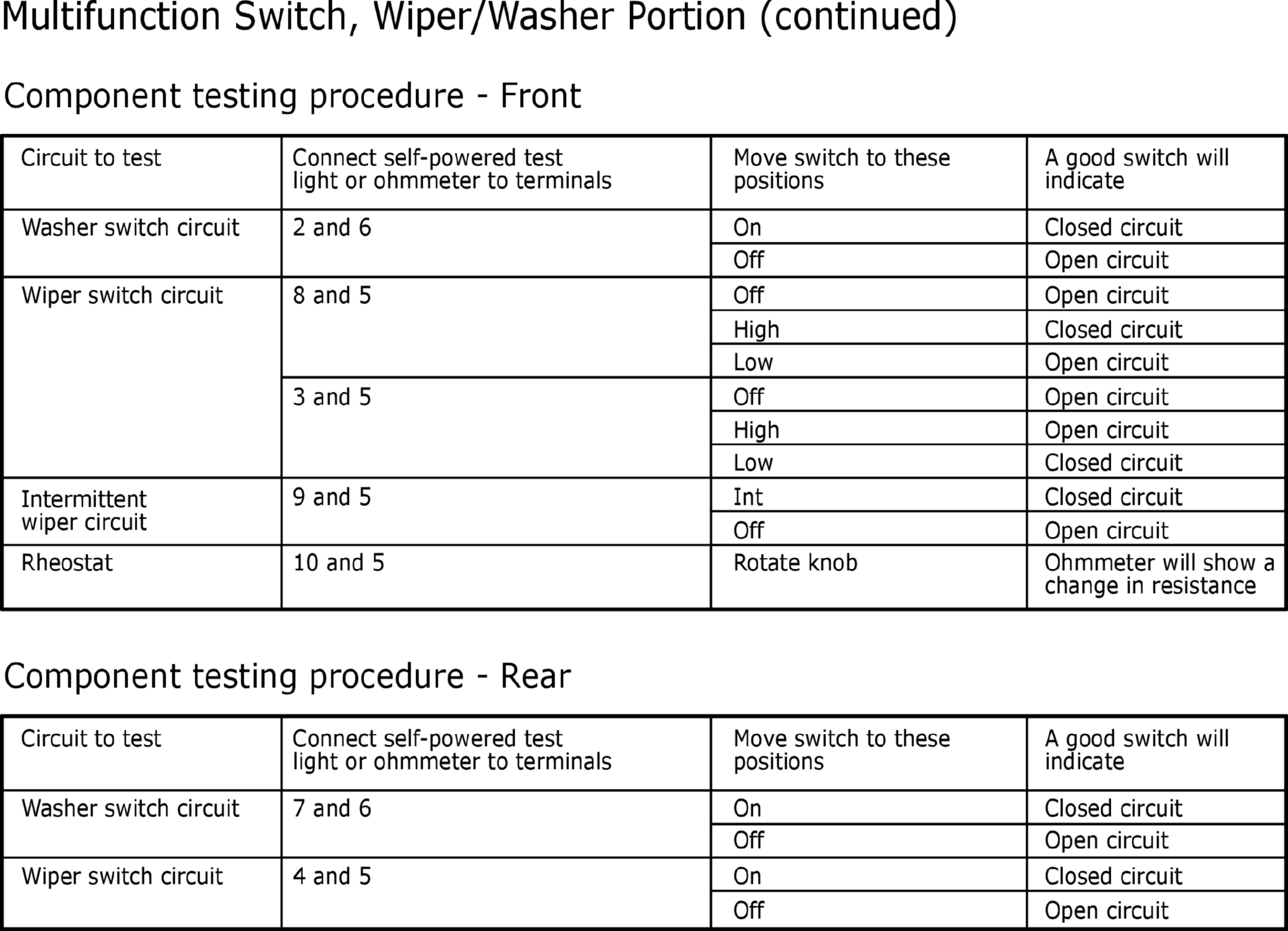

Fig 2: Wiper/Washer Switch (2 Of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
