Fuse And Relay Location

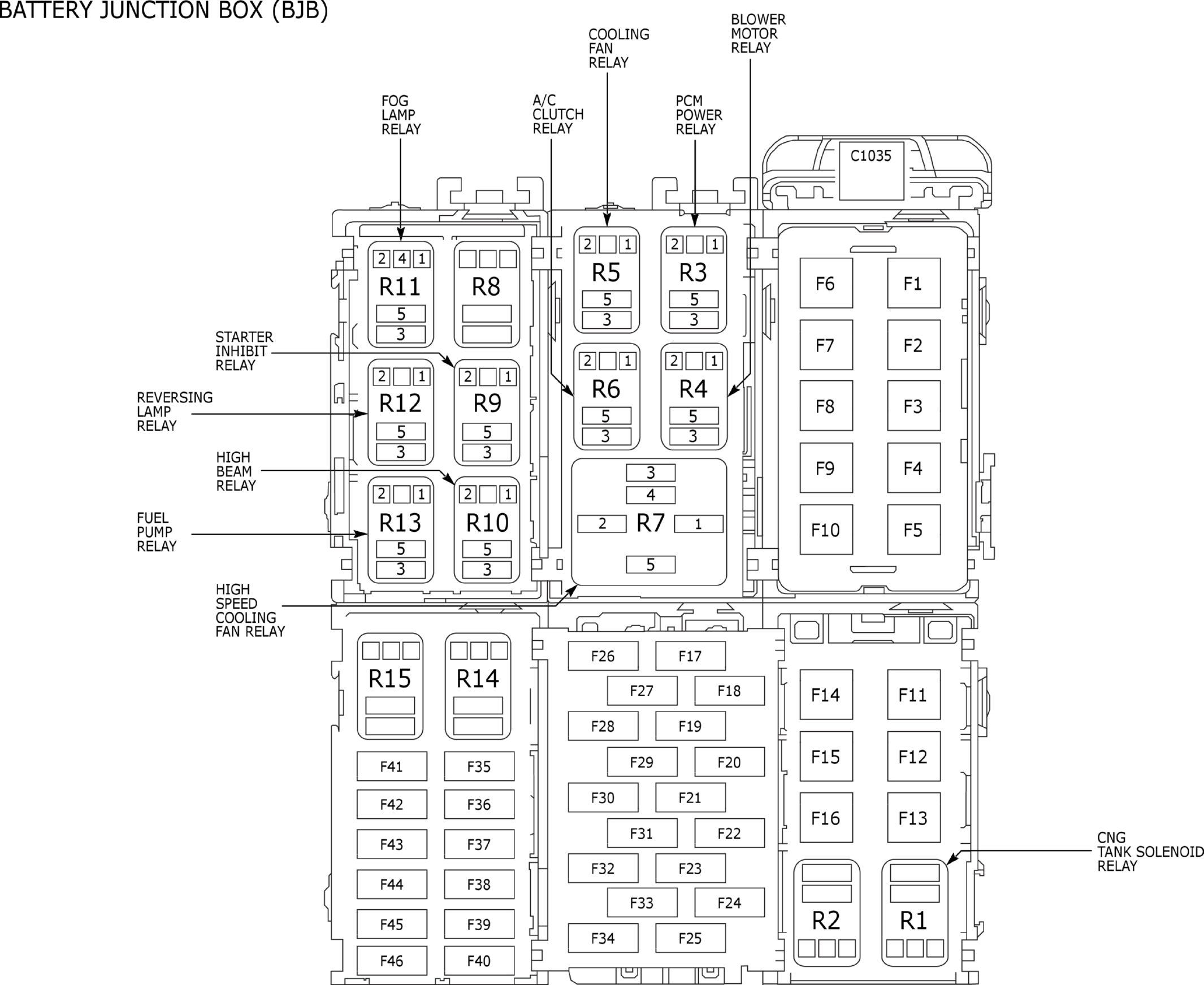

Fig 1: Battery Junction Box (BJB) Component Location, Fuses And Relays
GFDW19708Courtesy of FORD MOTOR COMPANY
BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
R7 High Speed Cooling Fan Relay
R13 Fuel Pump Relay
R10 High Beam Relay
R9 Starter Inhibit Relay
R11 Fog Lamp Relay
R6 A/C Clutch Relay
R5 Cooling Fan Relay
R3 PCM Power Relay
R4 Blower Motor Relay
R1 CNG Tank Solenoid Relay
BATTERY JUNCTION BOX (BJB) FUSE IDENTIFICATION LEGEND

Fuse Amps Circuits protected
F1 60 Anti-lock Brake System (ABS) module
F2 40 Transmission Control Module (TCM)
F3 40 Cooling fan relay (BJB), High speed cooling fan relay (BJB)
F4 40 Blower motor relay (BJB)
F5 60 Central Junction Box (CJB) - Fl, F3, F5, F7, F9, F10, F12
Central Junction Box (CJB) - F14, F16, F18, F32, F33, F35
F6 30 Body Control Module (BCM) - Locks
F7 60 Ignition relay (CJB)
F8 60 Powertrain control module power relay (BJB)
F9 60 Anti-lock Brake System (ABS) module
F10 30 Starter inhibit relay (BJB)
F11 30 Fuel pump relay (BJB)
F12 60 Accessory relay (CJB)
F13 60 High speed cooling fan relay (BJB)
F14 - Not used
F15 - Not used
F16 - Not used
F17 20 High beam relay (BJB)
F18 15 Powertrain Control Module (PCM)
F19 20 Fog lamp relay (BJB)
F20 15 Heated Oxygen Sensor (HO2S), Catalyst monitor sensor
F21 7.5 Fog lamp and High beam relay (BJB) - coil side
F22 20 Ignition coils
F23 15 Body Control Module (BCM) - Exterior lighting
F24 10 Cooling fan relay (BJB), Fuel pump relay (BJB), Degas valve
Air conditioning (A/C) clutch relay (BJB), High speed cooling fan relay
Evaporative emission canister purge valve, Wastegate control valve
Oil pressure control solenoid, Turbocharger bypass valve
Exhaust Gas Recirculation (EGR) cooler bypass valve
Intake Variable Camshaft Timing (VCT) oil solenoid control
Exhaust Variable Camshaft Timing (VCT) oil solenoid control
F25 20 Body Control Module (BCM) - Exterior lighting
F26 20 Body Control Module (BCM) - BATT Saver/Horn
F27 15 Air Conditioning (A/C) compressor control solenoid Active grille shutter, Coolant pump
F28 15 Body Control Module (BCM) - Turn signals
F29 20 Compressed Natural Gas (CNG) Control Module
F30 10 A/C clutch relay (BJB)
F31 - Not used
F32 7.5 Powertrain Control Module (PCM)
Powertrain control module power relay (BJB) - coil side
Transmission Control Module (TCM)
Evaporative emission (EVAP) canister vent valve
F33 7.5 Mass Air Flow and Temperature (MAFT) sensor
Powertrain Control Module (PCM), Fuel pump drive assembly
Fuel injectors, Fuel Pump Driver Module (FPDM)
F34 20 Body Control Module (BCM) - Heated backlite
F35 10 Front fog lamp LH
F36 10 Front fog lamp RH
F37 10 Headlamp assembly LH
F38 10 Headlamp assembly RH
F39 - Not used
F40 - Not used
F41 - Not used
F42 - Not used
F43 - Not used
F44 - Not used
F45 - Not used
F46 - Not used

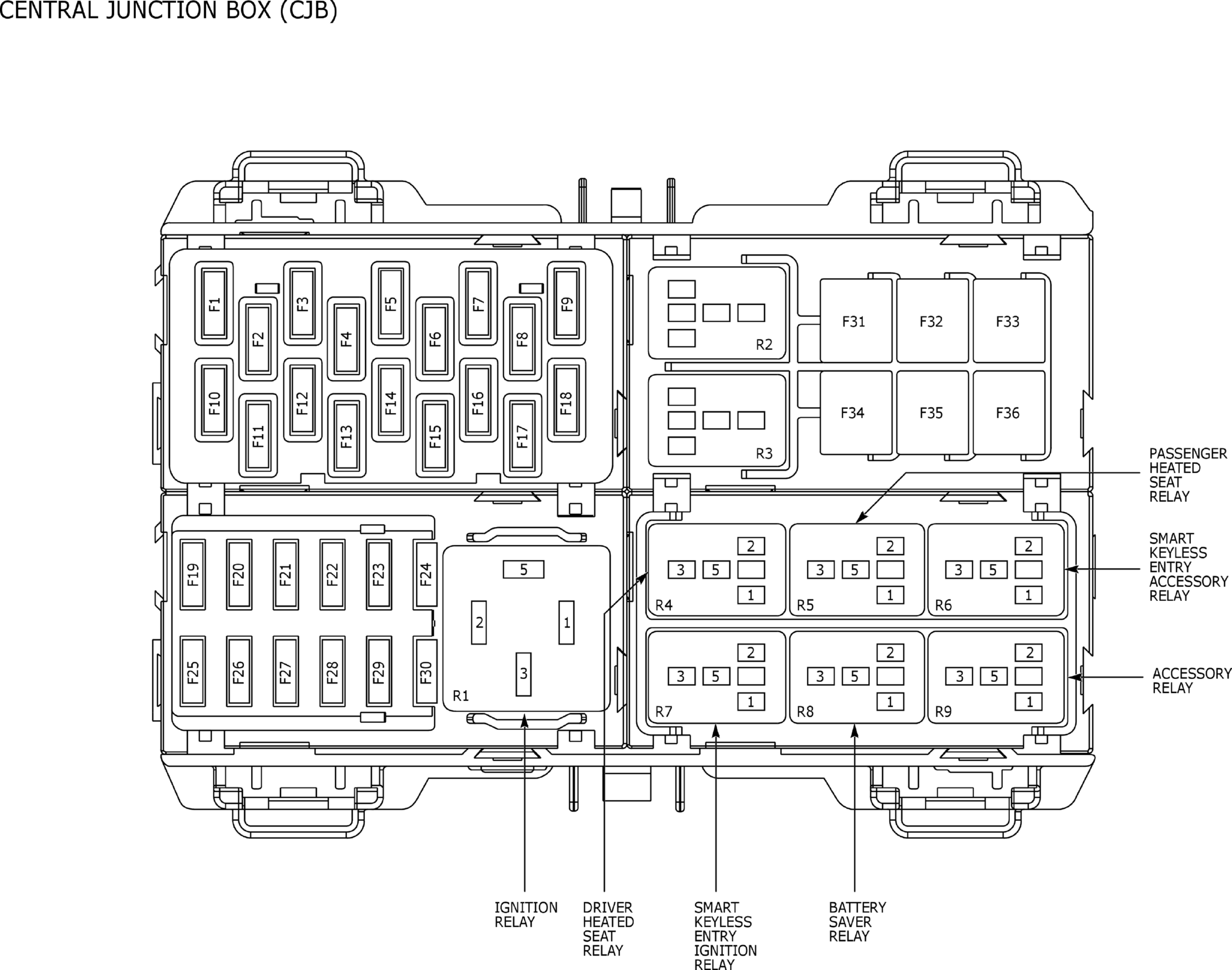

Fig 2: Central Junction Box (CJB) Component Location, Fuses And Relays
GFDW19710Courtesy of FORD MOTOR COMPANY
CENTRAL JUNCTION BOX (CJB) RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
R5 Passenger Heated Seat Relay
R6 Smart Keyless Entry Accessory Relay
R9 Accessory Relay
R8 Battery Saver Relay
R7 Smart Keyless Entry Ignition Relay
R4 Driver Heated Seat Relay
R1 Ignition Relay
CENTRAL JUNCTION BOX (CJB) FUSE IDENTIFICATION LEGEND

Fuse Amps Circuits protected
F1 15 Ignition switch Smart keyless entry ignition relay, Smart keyless entry accessory relay
F2 7.5 Auto-dimming interior mirror, Electric booster relays 1 and 2 (Auxiliary relay 1 Rain sensor module
F3 7.5 Instrument Panel Cluster (IPC)
F4 7.5 Occupant Classification System Module (OCSM) Passenger Air Bag Deactivation (PAD) Indicator
F5 15 Data Link Connector (DLC)
F6 10 Reversing lamp relay (BJB), Reversing lamp switch, Rear parking aid camera
F7 7.5 Global Positioning System Module (GPSM), Accessory relay (CJB) Front Control/Display Interface Module (FCDIM), Intrusion sensor Front Controls Interface Module (FCIM), Radio Frequency (RF) receiver
F8 7.5 Roof opening panel module
F9 20 Remote Function Actuator (RFA) module
F10 15 SYNC module [APIM], Audio Front Control Module (ACM)
F11 20 Body Control Module (BCM), Front wipers
F12 7.5 Heating, Ventilation and Air Conditioning (HVAC) control module EATC module
F13 15 Body Control Module (BCM), Rear wiper
F14 20 Remote Function Actuator (RFA) module
F15 15 Windshield wiper/washer switch
F16 5 Exterior mirror switch, Master window control switch
F17 15 Driver heated seat relay (CJB), Passenger heated seat relay (CJB)
F18 10 Stoplamp switch
F19 7.5 Instrument Panel Cluster (IPC)
F20 10 Restraints Control Module (RCM)
F21 7.5 Body Control Module (BCM), Instrument Panel Cluster (IPC) Power Steering Control Module (PSCM), HVAC module Passive Anti-Theft System (PATS) transceiver, Blower motor relay (BJB)
F22 7.5 Anti-lock Brake System (ABS) module, Accelerator Pedal Position (APP) sensor Powertrain Control Module (PCM)
F23 7.5 Transmission Control Module (TCM)
F24 7.5 Not used
F25 7.5 Driver side exterior mirror, Passenger side exterior mirror
F26 7.5 Liftgate/luggage compartment lid release actuator
F27 - Not used
F28 - Not used
F29 - Not used
F30 - Not used
F31 30 Master window control switch
F32 20 Battery saver relay (GB)
F33 20 Cigar lighter
F34 30 Master window control switch, Passenger door window control switch
F35 20 Roof opening panel module
F36 - Not used

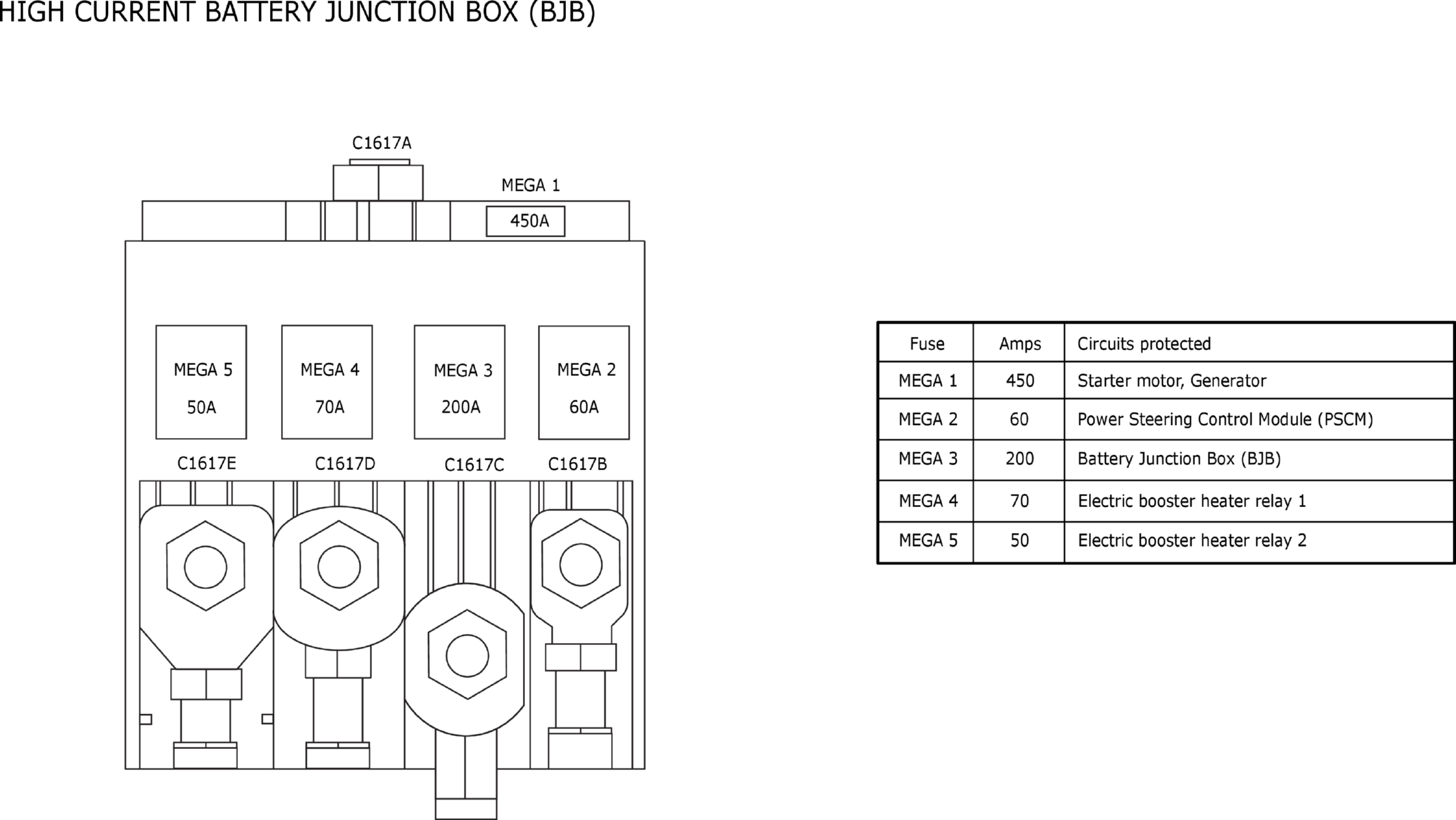

Fig 3: High Current Battery Junction Box (BJB) Component Location & Legend
GFDW19712Courtesy of FORD MOTOR COMPANY

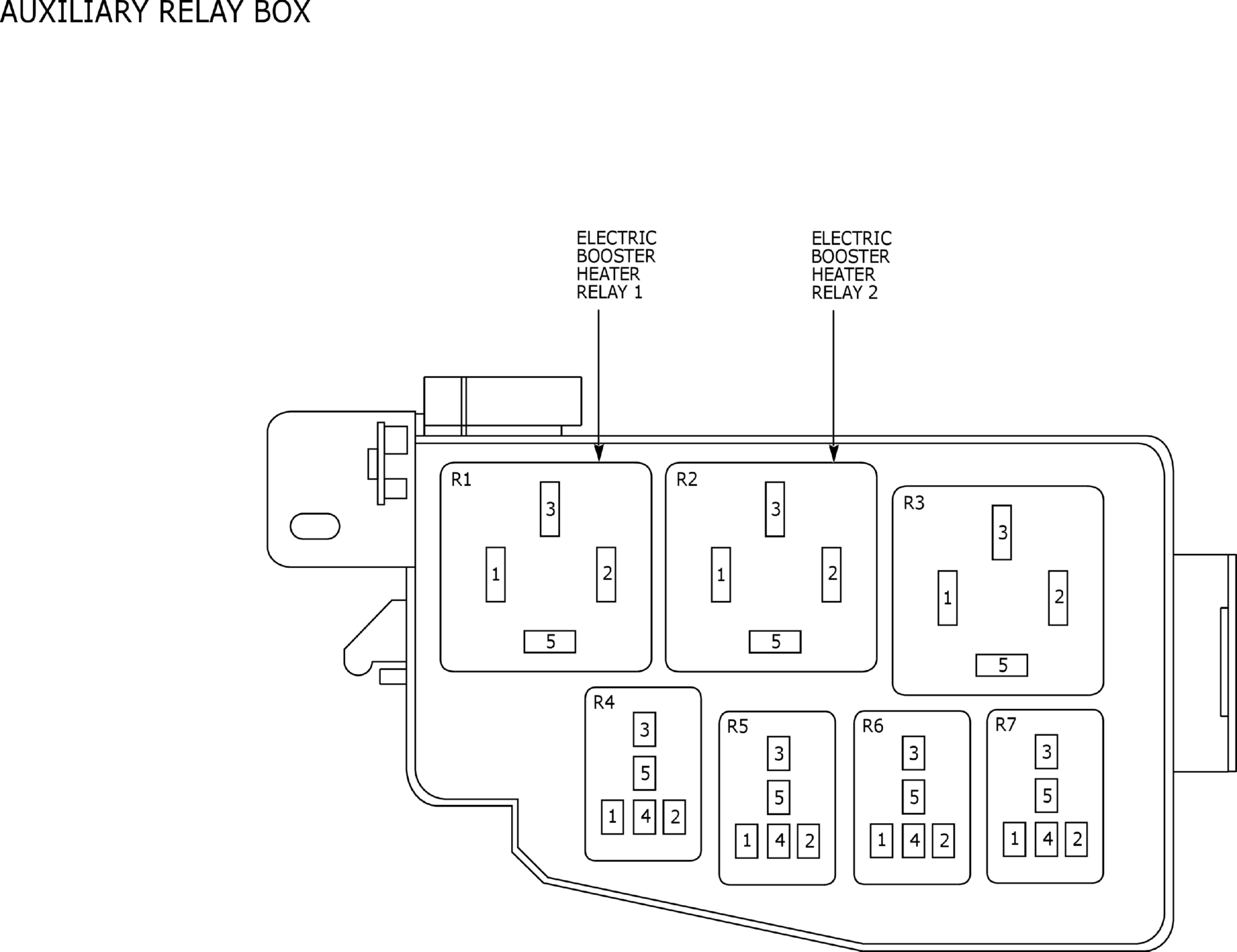

Fig 4: Auxilary Relay Box Component Location
GFDW19713Courtesy of FORD MOTOR COMPANY
AUXILARY RELAY BOX RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
R1 Electric Booster Heater Relay 1
R2 Electric Booster Heater Relay 2
