Master Window Control Switch
Master Window Control Switch

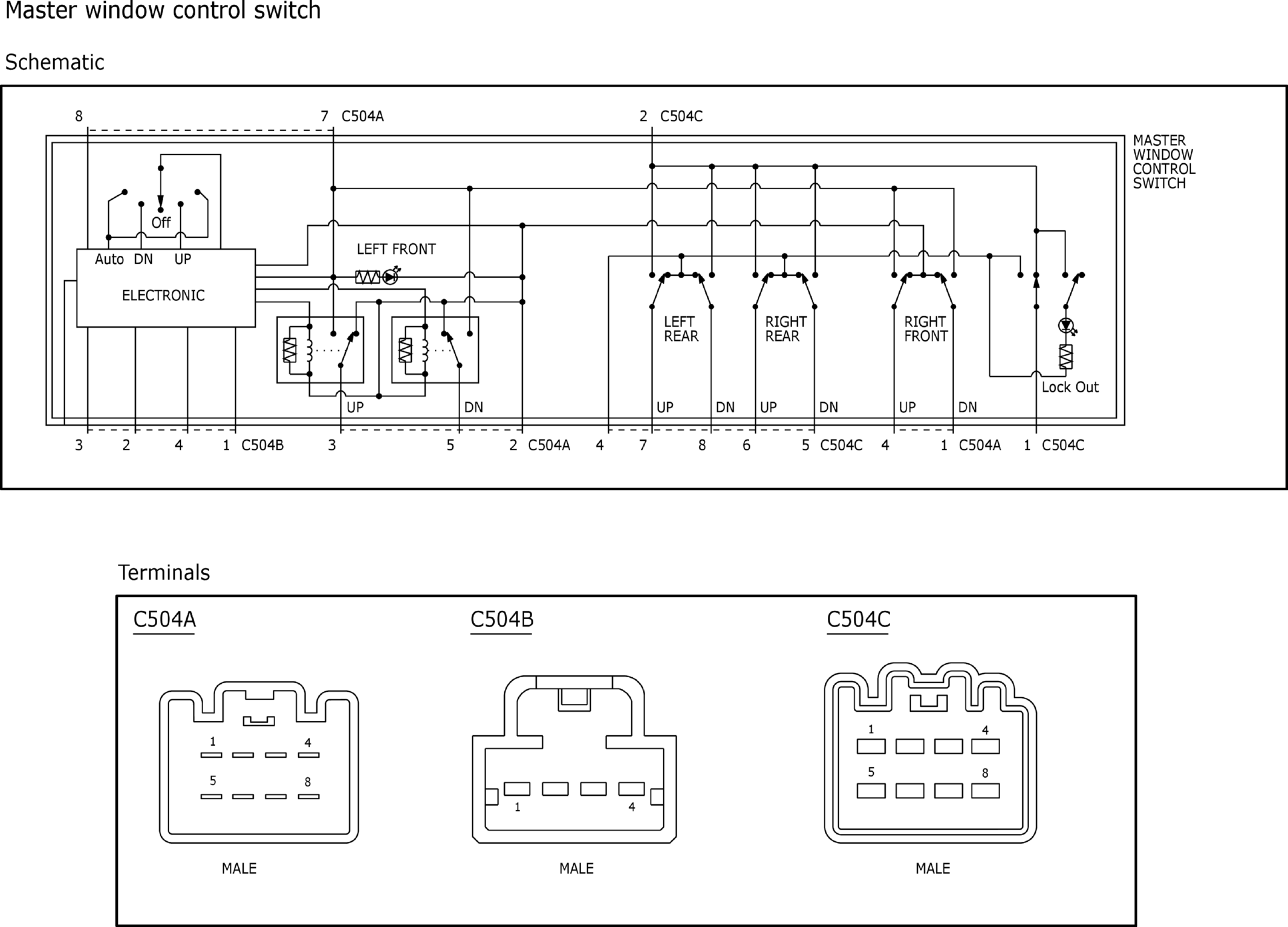

Fig 1: Master Window Control Switch (1 Of 2)
Courtesy of FORD MOTOR COMPANY

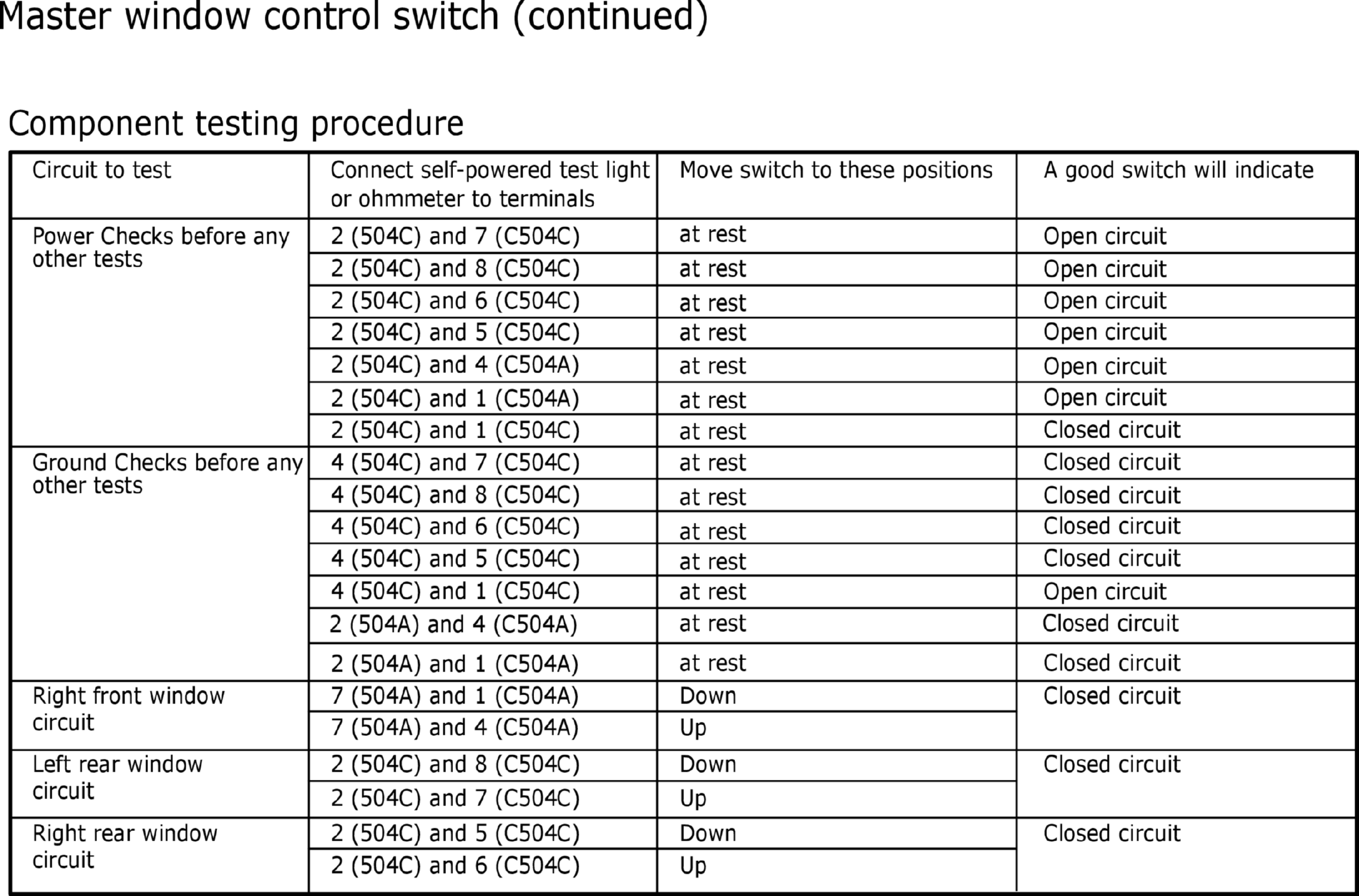

Fig 2: Master Window Control Switch (2 Of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
