Ignition Switch-Push Button Start

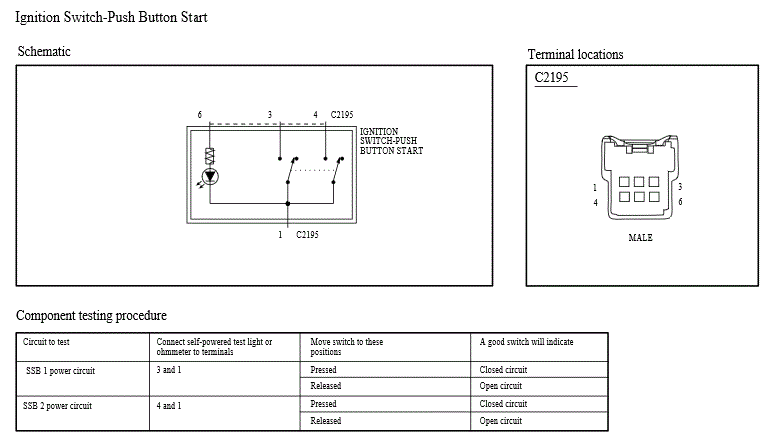

Fig 1: Ignition Switch-Push Button Start

GFDW19904

Courtesy of FORD MOTOR COMPANY
