Transaxle/Transmission Cooling
Component Location

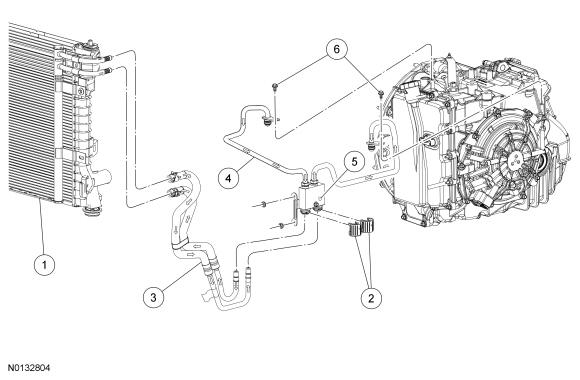

Transmission Cooling - 6F50 and 6F55 (3.5L Ti-VCT)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | OTA transmission fluid multi cooler |
| 2 | 7Z465 | Transmission fluid cooler hose secondary latches |
| 3 | 7R081 | Transmission fluid cooler hose assembly |
| 4 | 7R081 | Transmission mounted transmission fluid cooler tube assembly |
| 5 | 7H322 | Transmission fluid thermal bypass valve |
| 6 | W712146 | Transmission mounted transmission fluid cooler tube bolts |

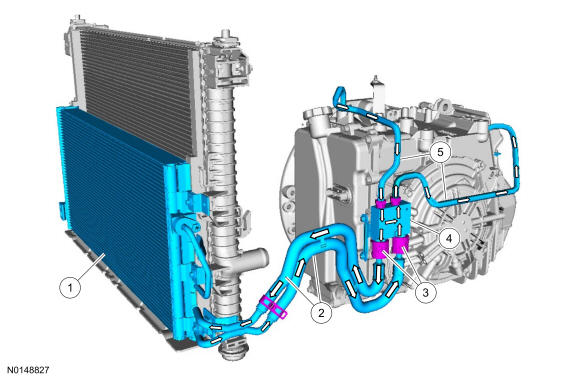

Transmission Cooling - 6F50 and 6F55 (3.5L GTDI)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | OTA transmission fluid multi cooler |
| 2 | 7R081 | Transmission fluid cooler hose assembly |
| 3 | 7Z465 | Transmission fluid cooler hose secondary latches |
| 4 | 7H322 | Transmission fluid thermal bypass valve |
| 5 | 7R081 | Transmission mounted transmission fluid cooler tube assembly |

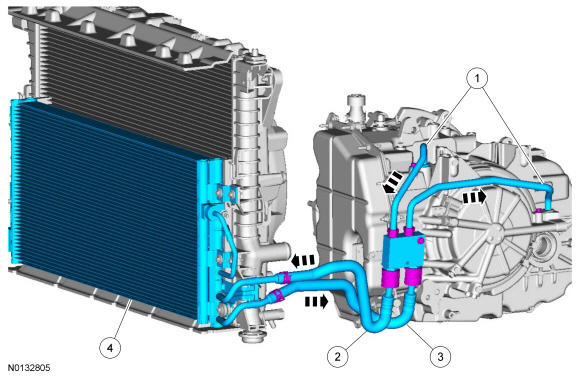

Transmission Cooling - 6F35 (2.0L GTDI)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7R081 | Transmission mounted transmission fluid cooler tube assembly |
| 2 | 7A030 | Transmission fluid cooler inlet hose |
| 3 | 7A031 | Transmission fluid cooler outlet hose |
| 4 | 7A095 | OTA transmission fluid multi cooler |
System Operation
Transmission Cooling
The transmission fluid cooling system consists of the following:
- OTA transmission fluid multi cooler
- Auxiliary transmission fluid cooler (OTA) (model dependent)
- Transmission mounted transmission fluid cooler tube assembly
- Transmission fluid thermal bypass valve
- Transmission fluid cooler inlet hose
- Transmission fluid cooler return hose
These vehicles are equipped with an external transmission fluid cooler. The transmission fluid cooler is part of the A/C condenser and cannot be serviced separately. The cooler is mounted in front of the engine radiator. There is also an auxiliary transmission fluid cooler OTA which is model dependent. If equipped, the auxiliary transmission fluid cooler OTA is mounted in front of the A/C condenser. The transmission fluid cooling system also consists of a transmission fluid thermal bypass valve which is mounted on the transmission main control cover. When the Motorcraft MERCON LV Automatic Transmission Fluid is below normal operating temperature, Motorcraft MERCON LV Automatic Transmission Fluid travels from the transmission to the transmission fluid thermal bypass valve then back to the transmission. When the Motorcraft MERCON LV Automatic Transmission Fluid is at or above normal operating temperature, the transmission fluid thermal bypass valve opens allowing Motorcraft MERCON LV Automatic Transmission Fluid to travel from the transmission through the transmission fluid cooler then back to the transmission. The transmission fluid cooler transfers heat from the Motorcraft MERCON LV Automatic Transmission Fluid to the outside air.
