Door Lock Control Switch - Passenger Side

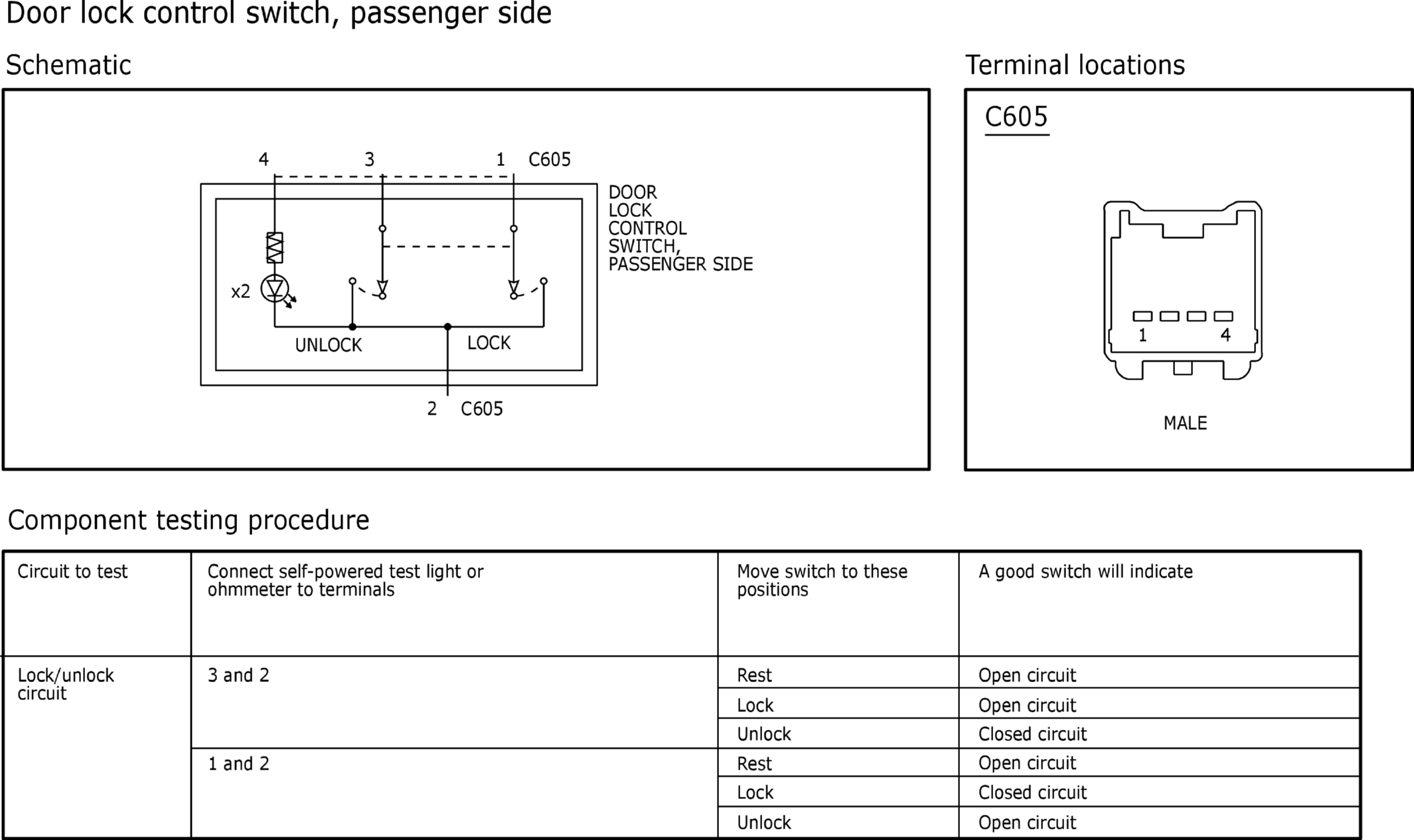

Fig 1: Door Lock Control Switch - Passenger Side

GFDW12644

Courtesy of FORD MOTOR COMPANY
