Disassembly And Assembly Of Subassemblies: Piston: Assembly

• 1.

  Align the piston-to-connecting rod orientation marks and position the piston on the connecting rod.

Courtesy of FORD MOTOR COMPANY

NOTE: Lubricate the piston pin and pin bore with clean engine oil.
• 2.
  Install the piston pin in the piston and connecting rod assembly.

Courtesy of FORD MOTOR COMPANY

• 3.

  Install the 2 new piston pin retainers in the piston.

Courtesy of FORD MOTOR COMPANY

NOTE: Lubricate the piston and the new piston rings with clean engine oil.
• 4.
  Install the piston rings on the piston.

Courtesy of FORD MOTOR COMPANY

• 5.

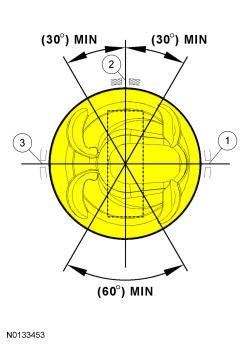

  Align the piston rings on the piston.

  • 1.

    Upper oil control segment ring gap location

  • 2.

    Oil control spacer gap location

  • 3.

    Lower oil control segment ring gap location

Courtesy of FORD MOTOR COMPANY
