Door Lock Control Switch - Driver Side (Without Memory)

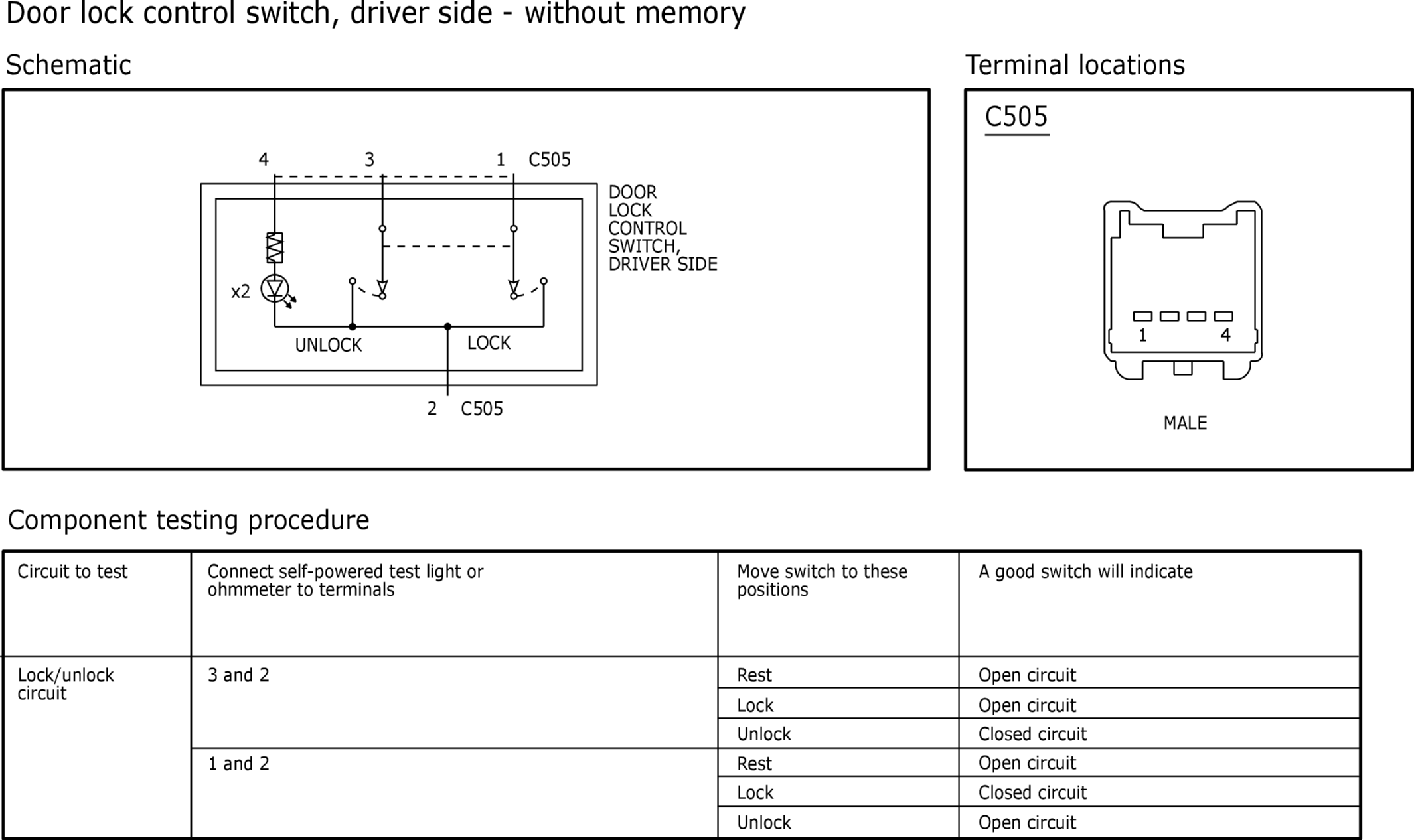

Fig 1: Door Lock Control Switch - Driver Side (Without Memory)

GFDW12654

Courtesy of FORD MOTOR COMPANY
