Removal And Installation: Seat: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

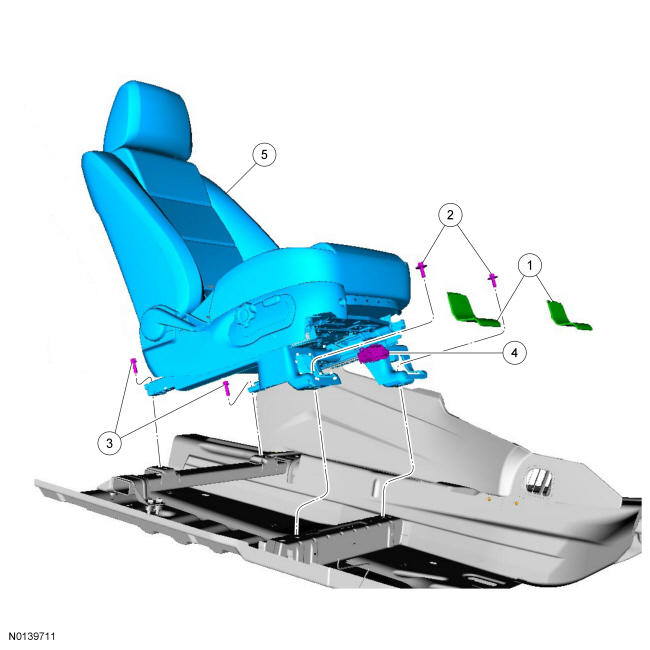

Exploded View
NOTE:
Passenger side shown, driver side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 78629 | Front cover (2 required) |
| 2 | W709428 | Front mounting bolts |
| 3 | W714018 | Rear mounting bolts |
| 4 | - | Electrical connector |
| 5 | - | Passenger seat assembly |
