Front Brake Pads: Removal

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Health and Safety Precautions .

2.

Remove the wheel and tire. Refer to: Wheel and Tire .

3.

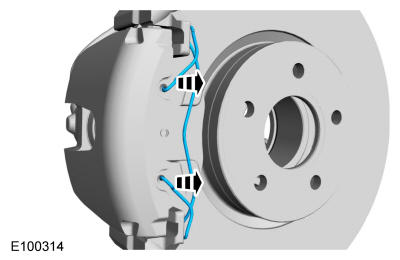

GFD15360

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

Relocate and support the component.

Torque

: 21 lb.ft (28 Nm)

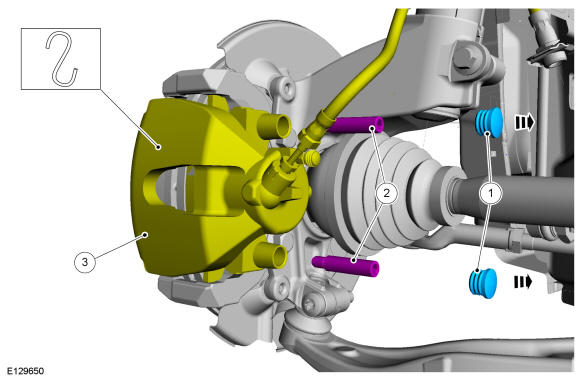

GFD15367

Courtesy of FORD MOTOR COMPANY

5.

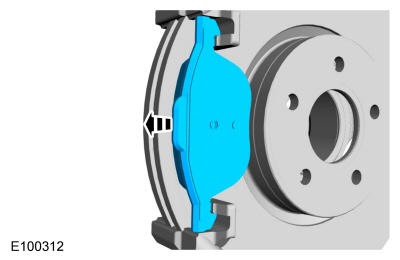

GFD15362

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

C-Clamp

7.

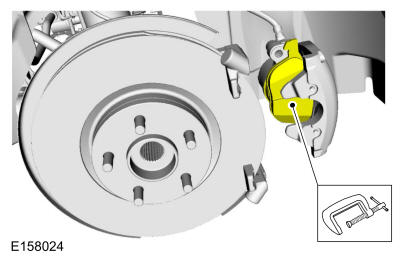

GFD15368

Courtesy of FORD MOTOR COMPANY

8.

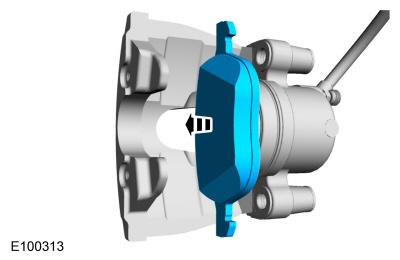

GFD15363

Courtesy of FORD MOTOR COMPANY
