Components And Components Location: Components

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

[ULEV]

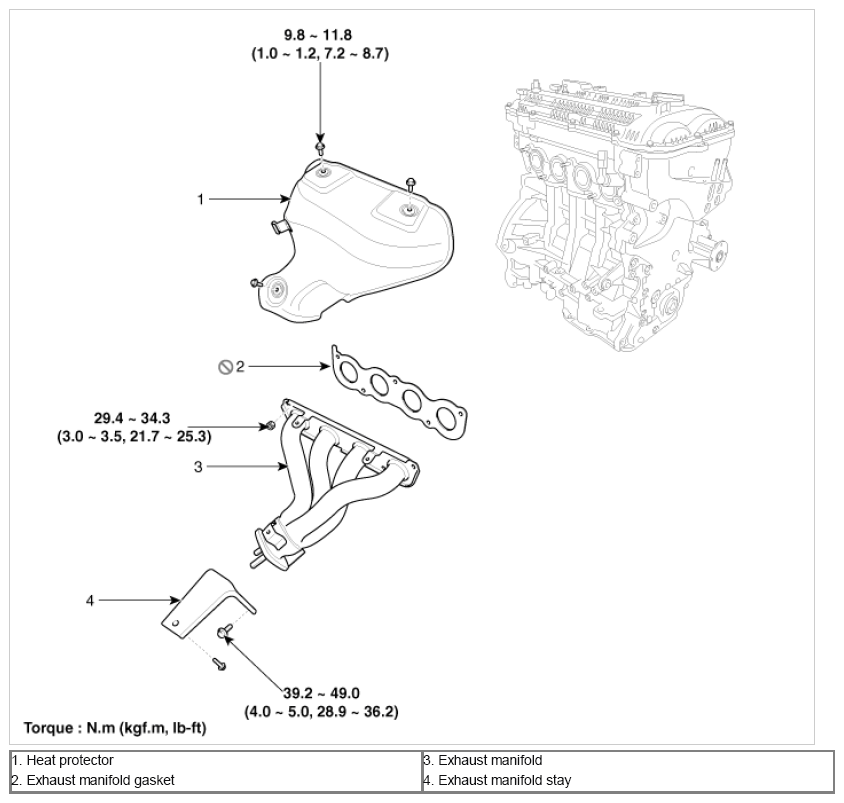

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (ULEV)
G09885649Courtesy of HYUNDAI MOTOR AMERICA

[SULEV]

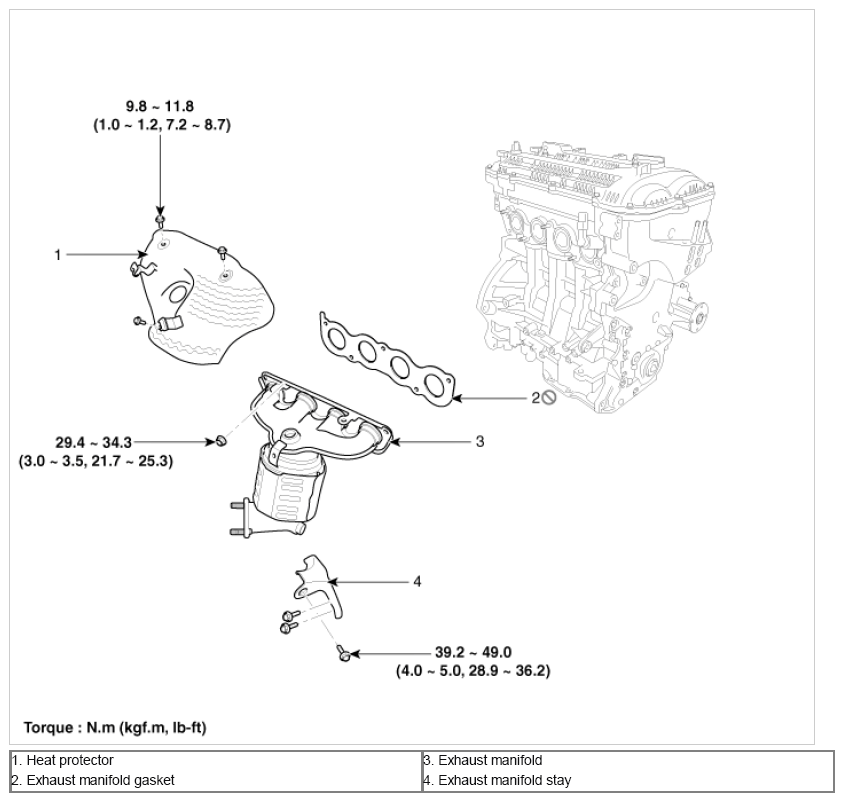

Fig 2: Exhaust Manifold And Catalytic Converter Replacement Components With Torque Specifications (SULEV)
G09885650Courtesy of HYUNDAI MOTOR AMERICA
